Nettrix Nettrix 241333 SPECjbb2015-MultiJVM max-jOPS
182159 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Nettrix Test Sponsor: Nettrix Test location: Beijing, China Test date: Apr 25, 2021
SPEC license #: 6138 Hardware Availability: May-2021 Software Availability: May-2021 Publication: Mon Jun 28 16:01:47 EDT 2021
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNettrix
Vendor URLhttps://www.nettrix.com.cn
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameR620 G40
VendorNettrix
Vendor URLhttps://www.nettrix.com.cn
AvailableApr-2021
ModelR620 G40
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8380 CPU @ 2.30GHz
CPU Characteristics40core, 2.3GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.4GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
VersionNettrix BIOS Version 0PYH001029 released Apr-2021
CPU Frequency (MHz)2300
Primary Cache32 KB I + 48 KB D on chip per core
Secondary Cache1.25 MB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk1x 480GB SATA SSD
File Systemxfs
Memory Amount (GB)4096
# and size of DIMM(s)32 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)2x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 800w
Other Hardware1 x OCP with 2 x 10 Gbit NICs
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesThe system ROM used for this result contains Intel microcode version 0D000280 for the Intel Xeon Platinum 8380 processor.
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18-24.61-default
AvailableApr-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 16.0.1
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net
VersionOpenJDK 64-Bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
NotesCommunity Support:
  • Community URL: http://openjdk.java.net/projects/jdk/
  • Support URL: http://bugs.openjdk.java.net/secure/Dashboard.jspa
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Application Profile = Computing Latency Mode
  • SNC = Disabled
  • Patrol Scrub = Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 131072
  • echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 0 > /proc/sys/kernel/sched_child_runs_first
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 9 > /proc/sys/kernel/sched_nr_migrate
  • echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms
  • echo 1000000 > /proc/sys/kernel/sched_rt_period_us
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/sched_schedstats
  • echo 1 > /proc/sys/kernel/sched_tunable_scaling
  • echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/dafrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
  • echo 274877906944 > /proc/sys/kernel/shmmax
  • echo 274877906944 > /proc/sys/kernel/shmall
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs.
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:+UseParallelGC -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms225g -Xmx225g -Xmn215g -XX:ParallelGCThreads=40 -XX:-PrintGCDetails
Tuning Used numactl to affinitize two Backend JVMs to one CPU numa node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G
Tuning Used numactl to affinitize two TxInjector JVMs to one CPU numa node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=1 --membind=1
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 238494 241333 244172 247011 249850
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 149058 179088 187565 197325 203003 182159
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 5678 / 8518 2839 / 5678 - / 2839 - / 2839 - / 2839 - / 2839
1000us 181709 / 184549 19874 / 22714 11357 / 14196 8518 / 11357 5678 / 8518 - / 2839
5000us 218619 / 221458 198745 / 201584 139121 / 141960 122086 / 124925 96533 / 99372 25553 / 14196
10000us 221458 / 224298 210102 / 212941 187388 / 190227 176031 / 178870 150478 / 147639 45427 / 14196
25000us 224298 / 227137 215780 / 218619 204423 / 207262 198745 / 201584 181709 / 147639 45427 / 14196
50000us 227137 / 229976 218619 / 221458 210102 / 212941 204423 / 207262 190227 / 147639 45427 / 14196
75000us 227137 / 229976 221458 / 224298 212941 / 215780 207262 / 210102 198745 / 195905 113568 / 28392
100000us 227137 / 229976 221458 / 224298 215780 / 218619 212941 / 215780 201584 / 204423 158996 / 42588
200000us 232815 / 235654 227137 / 229976 218619 / 221458 218619 / 221458 212941 / 215780 201584 / 56784
500000us 241333 / - 235654 / 238494 229976 / 232815 227137 / 229976 221458 / 224298 215780 / 218619
1000000us 241333 / - 241333 / - 238494 / 241333 235654 / 238494 235654 / 238494 227137 / 229976
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

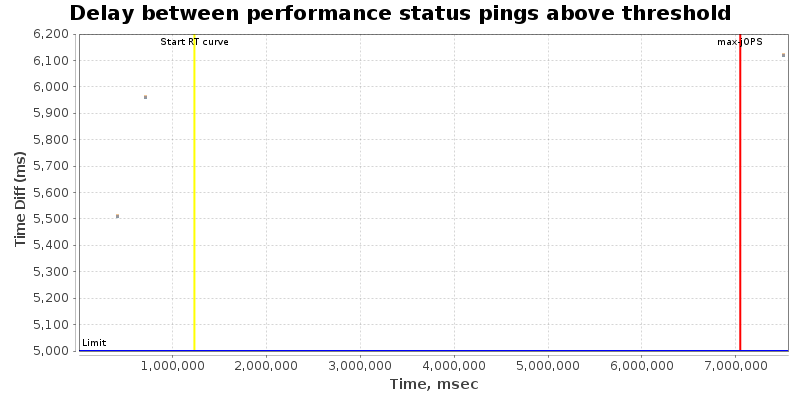

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM1 Group1.TxInjector.txiJVM1 Group2.Backend.beJVM2 Group2.TxInjector.txiJVM2 Group3.Backend.beJVM3 Group3.TxInjector.txiJVM3 Group4.Backend.beJVM4 Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size 256 232 210 210 210 210 210 210 210 210
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.rtcurve.step 0.01 0.01
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 160 {Tier1=248, Tier2=8, Tier3=50}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 160 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 283921 IR
High-bound (settled) is 253197 IR
