SPECjbb2015 Report for jbb2015-20210520-00652 : 173615 max-jOPS ; 62488 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR655
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2021
Model	ThinkSystem SR655
Form Factor	2U
CPU Name	AMD EPYC 7763
CPU Characteristics	64 core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	CFE125S
CPU Frequency (MHz)	2450
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64GB 2Rx4 PC4-3200AA-R, running at 2933
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1100W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.1935)
Available	May-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16.0.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 16.0.1
Available	Apr-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR860 V2
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2020
Model	ThinkSystem SR860 V2
Form Factor	4U
CPU Name	Intel Xeon Platinum 8380H
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	M5E109H
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	768
# and size of DIMM(s)	48 x 16 GB
Memory Details	16 GB 2Rx8 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	2 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.1935)
Available	May-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 16.0.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 16.0.1
Available	Apr-2021
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance NUMA nodes per socket set to NPS4
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m
Tuning	None
Notes	None

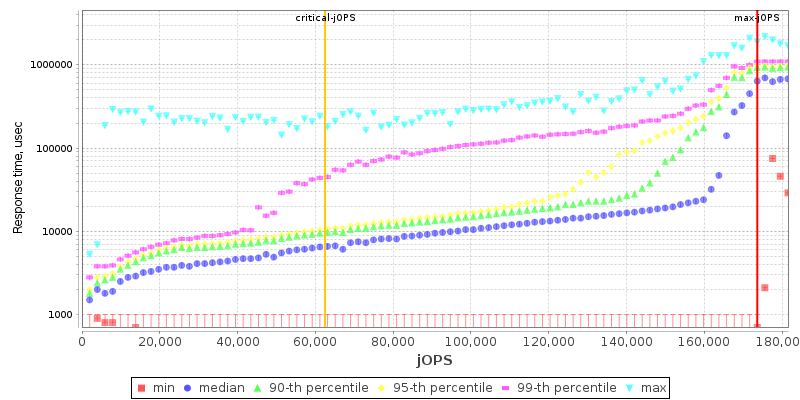

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	171642	173615	175588	177561	179534

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	40444	50308	64119	77929	93712	62488

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973
1000us	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973
5000us	80889 / 82862	49322 / 47350	15783 / 17756	13810 / 15783	9864 / 11837	- / 1973
10000us	132184 / 134157	94699 / 96672	67079 / 69051	57214 / 59187	39458 / 41431	3946 / 5919
25000us	165724 / 167696	159805 / 161778	138103 / 140076	118374 / 120347	49322 / 51295	3946 / 5919
50000us	167696 / 169669	163751 / 165724	147967 / 149940	132184 / 130211	63133 / 65106	3946 / 5919
75000us	169669 / 171642	163751 / 165724	149940 / 151913	136130 / 138103	76943 / 78916	3946 / 5919
100000us	169669 / 171642	163751 / 165724	153886 / 155859	142049 / 144022	92726 / 94699	3946 / 5919
200000us	171642 / 173615	165724 / 167696	159805 / 161778	153886 / 155859	142049 / 144022	94699 / 7892
500000us	173615 / -	171642 / 173615	165724 / 167696	163751 / 165724	161778 / 163751	151913 / 142049
1000000us	173615 / -	173615 / -	173615 / -	173615 / -	171642 / 173615	157832 / 159805

Number of probes

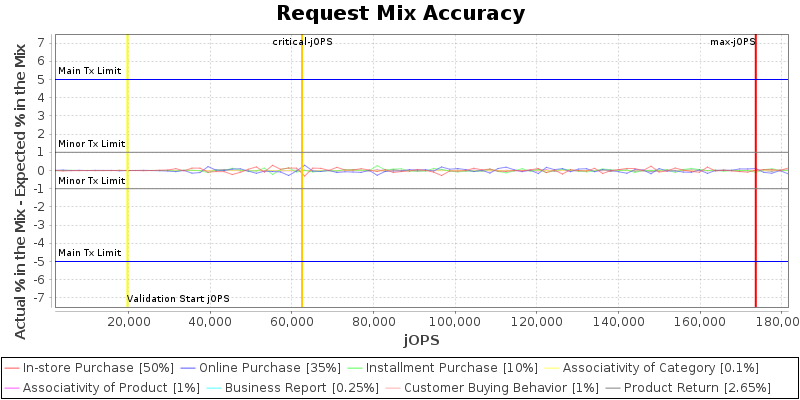

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

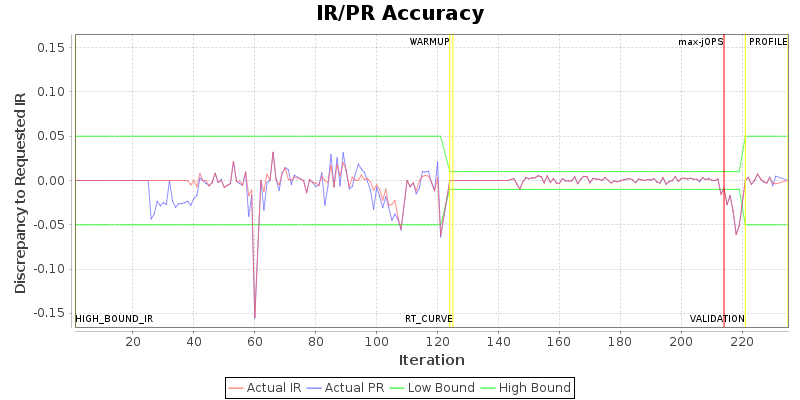

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	64
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	40
specjbb.comm.connect.worker.pool.min	1	40
specjbb.controller.host	localhost	192.168.5.4
specjbb.forkjoin.workers	56	{Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	56	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 197290 IR

High-bound (settled) is 179810 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR655	173615 SPECjbb2015-Distributed max-jOPS 62488 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: May 19, 2021
SPEC license #: 9017	Hardware Availability: Jun-2021	Software Availability: May-2021	Publication: Fri Jun 11 14:27:30 EDT 2021
