SPECjbb2015 Report for jbb2015-20210225-00616 : 3613168 max-jOPS ; 610293 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro SuperBlade A+ Blade Server SBA-4119S-C2N
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Mar-2021
Model	BH12SSi
Form Factor	8U
CPU Name	AMD EPYC 7763
CPU Characteristics	64 core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.5GHz)
Number of Systems	1
Nodes Per System	20
Chips Per System	20
Cores Per System	1280
Cores Per Chip	64
Threads Per System	2560
Threads Per Core	2
Version	2.0 02/23/2021
CPU Frequency (MHz)	2450
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	20 x 1TB M.2 PCIe Gen3
File System	btrfs
Memory Amount (GB)	10240
# and size of DIMM(s)	160 x 64GB
Memory Details	64GB 2Rx4 PC4-25600
# and type of Network Interface Cards (NICs)	Onboard 1x25GbE dual-port NIC
Power Supply Quantity and Rating (W)	8 x 2200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise High Performance Computing 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-22-default
Available	July-2020
Bitness	64
Notes	None
Operating System os_2
Name	SUSE Linux Enterprise High Performance Computing 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-22-default
Available	July-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 15.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	note
Java Virtual Machine jvm_1
Name	Oracle Java SE 15.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Supermicro A+ Server 2014TP-HTR
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Aug-2019
Model	H12SST-PS
Form Factor	2U
CPU Name	AMD EPYC 7742
CPU Characteristics	64 Core, 2.25 GHz, 256 MB L3 cache (Max Boost Clock up to 3.4 GHz)
Number of Systems	1
Nodes Per System	2
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	1.1 02/21/2020
CPU Frequency (MHz)	2250
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	2 x 512GB M.2 PCIe Gen3
File System	btrfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64GB 2RX4 PC4-25600
# and type of Network Interface Cards (NICs)	2 x 25GbE NIC
Power Supply Quantity and Rating (W)	1 x 2000W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 Determinism Control = Manual Determinism Slider = Power L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Backend_1(160)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=300 -XX:LoopUnrollLimit=200 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:+UseUnalignedLoadStores -XX:-UseFastStosb -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads in every BH12SSi node in SuT Group1:numactl --physcpubind=0-7,64-71 --localalloc Group2:numactl --physcpubind=8-15,72-79 --localalloc Group3:numactl --physcpubind=16-23,80-87 --localalloc Group4:numactl --physcpubind=24-31,88-95 --localalloc Group5:numactl --physcpubind=32-39,96-103 --localalloc Group6:numactl --physcpubind=40-47,104-111 --localalloc Group7:numactl --physcpubind=48-55,112-119 --localalloc Group8:numactl --physcpubind=56-63,120-127 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 Determinism Control = Manual Determinism Slider = Power
Notes	notes

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(160)
OS Image Description	os_2
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:CICompilerCount=4 -XX:ParallelGCThreads=4
Tuning	None
Notes	Used numactl to interleave memory on all Nodes in Driver system numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize 40 Transaction Injector JVM to one NUMA node in Driver system Group1:numactl --cpunodebind=0 --membind=0 Group2:numactl --cpunodebind=0 --membind=0 Group3:numactl --cpunodebind=0 --membind=0 GroupN:numactl --cpunodebind=0 --membind=0 ... Group40:numactl --cpunodebind=0 --membind=0 Group41:numactl --cpunodebind=1 --membind=1 Group42:numactl --cpunodebind=1 --membind=1 ... Group80:numactl --cpunodebind=1 --membind=1 ... Group120:numactl --cpunodebind=2 --membind=2 ... Group160:numactl --cpunodebind=3 --membind=3

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	3521696	3567432	3613168	3658905	3704641

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	571704	571704	609817	651742	651742	610293

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 45736	- / 45736	- / 45736	- / 45736	- / 45736	- / 45736
1000us	91473 / 137209	91473 / 137209	45736 / 91473	- / 45736	- / 45736	- / 45736
5000us	1006199 / 1051935	823254 / 868990	594572 / 640308	548836 / 594572	457363 / 503099	- / 45736
10000us	1051935 / 1097671	960462 / 1006199	594572 / 640308	594572 / 640308	594572 / 548836	- / 45736
25000us	1234880 / 1280617	1006199 / 1051935	686045 / 731781	640308 / 686045	594572 / 548836	- / 45736
50000us	2149607 / 1920925	1097671 / 1143408	731781 / 777517	686045 / 731781	640308 / 548836	182945 / 45736
75000us	2789915 / 2515497	1143408 / 1189144	777517 / 823254	731781 / 777517	686045 / 548836	182945 / 45736
100000us	2927124 / 2881387	1234880 / 1280617	777517 / 823254	731781 / 777517	686045 / 548836	182945 / 45736
200000us	3430223 / 3475959	2149607 / 2195343	914726 / 960462	823254 / 868990	777517 / 823254	182945 / 137209
500000us	3613168 / -	3567432 / 3613168	2835651 / 2881387	1555035 / 1417826	1051935 / 1097671	686045 / 548836
1000000us	3613168 / -	3613168 / -	3521696 / 3567432	3475959 / 3521696	3338751 / 3384487	1417826 / 1234880

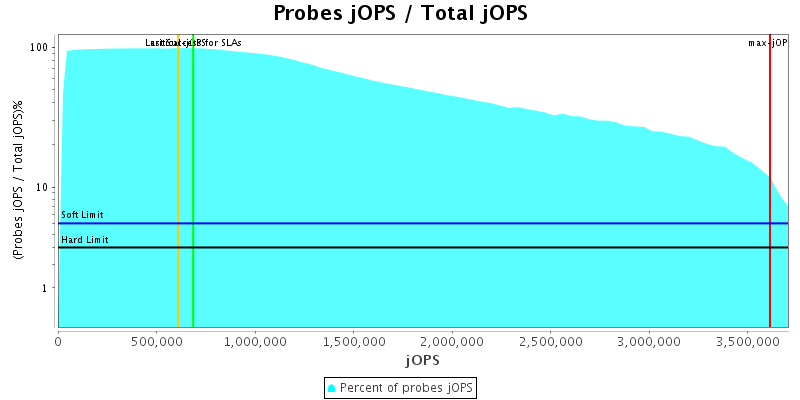

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

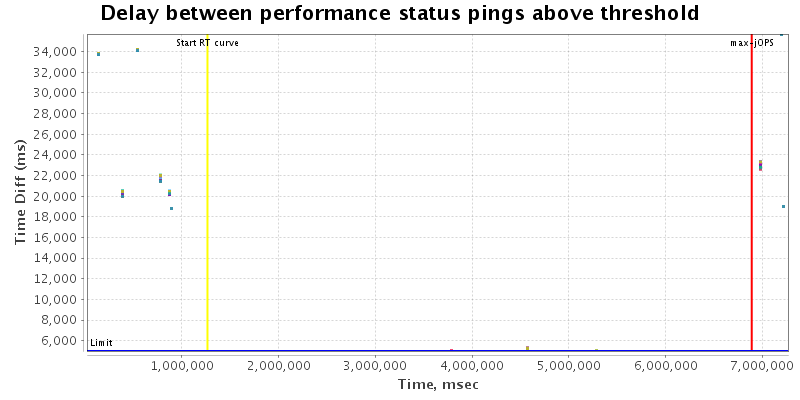

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group100.Backend.beJVM	Group100.TxInjector.txiJVM1	Group101.Backend.beJVM	Group101.TxInjector.txiJVM1	Group102.Backend.beJVM	Group102.TxInjector.txiJVM1	Group103.Backend.beJVM	Group103.TxInjector.txiJVM1	Group104.Backend.beJVM	Group104.TxInjector.txiJVM1	Group105.Backend.beJVM	Group105.TxInjector.txiJVM1	Group106.Backend.beJVM	Group106.TxInjector.txiJVM1	Group107.Backend.beJVM	Group107.TxInjector.txiJVM1	Group108.Backend.beJVM	Group108.TxInjector.txiJVM1	Group109.Backend.beJVM	Group109.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group110.Backend.beJVM	Group110.TxInjector.txiJVM1	Group111.Backend.beJVM	Group111.TxInjector.txiJVM1	Group112.Backend.beJVM	Group112.TxInjector.txiJVM1	Group113.Backend.beJVM	Group113.TxInjector.txiJVM1	Group114.Backend.beJVM	Group114.TxInjector.txiJVM1	Group115.Backend.beJVM	Group115.TxInjector.txiJVM1	Group116.Backend.beJVM	Group116.TxInjector.txiJVM1	Group117.Backend.beJVM	Group117.TxInjector.txiJVM1	Group118.Backend.beJVM	Group118.TxInjector.txiJVM1	Group119.Backend.beJVM	Group119.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group120.Backend.beJVM	Group120.TxInjector.txiJVM1	Group121.Backend.beJVM	Group121.TxInjector.txiJVM1	Group122.Backend.beJVM	Group122.TxInjector.txiJVM1	Group123.Backend.beJVM	Group123.TxInjector.txiJVM1	Group124.Backend.beJVM	Group124.TxInjector.txiJVM1	Group125.Backend.beJVM	Group125.TxInjector.txiJVM1	Group126.Backend.beJVM	Group126.TxInjector.txiJVM1	Group127.Backend.beJVM	Group127.TxInjector.txiJVM1	Group128.Backend.beJVM	Group128.TxInjector.txiJVM1	Group129.Backend.beJVM	Group129.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group130.Backend.beJVM	Group130.TxInjector.txiJVM1	Group131.Backend.beJVM	Group131.TxInjector.txiJVM1	Group132.Backend.beJVM	Group132.TxInjector.txiJVM1	Group133.Backend.beJVM	Group133.TxInjector.txiJVM1	Group134.Backend.beJVM	Group134.TxInjector.txiJVM1	Group135.Backend.beJVM	Group135.TxInjector.txiJVM1	Group136.Backend.beJVM	Group136.TxInjector.txiJVM1	Group137.Backend.beJVM	Group137.TxInjector.txiJVM1	Group138.Backend.beJVM	Group138.TxInjector.txiJVM1	Group139.Backend.beJVM	Group139.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group140.Backend.beJVM	Group140.TxInjector.txiJVM1	Group141.Backend.beJVM	Group141.TxInjector.txiJVM1	Group142.Backend.beJVM	Group142.TxInjector.txiJVM1	Group143.Backend.beJVM	Group143.TxInjector.txiJVM1	Group144.Backend.beJVM	Group144.TxInjector.txiJVM1	Group145.Backend.beJVM	Group145.TxInjector.txiJVM1	Group146.Backend.beJVM	Group146.TxInjector.txiJVM1	Group147.Backend.beJVM	Group147.TxInjector.txiJVM1	Group148.Backend.beJVM	Group148.TxInjector.txiJVM1	Group149.Backend.beJVM	Group149.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group150.Backend.beJVM	Group150.TxInjector.txiJVM1	Group151.Backend.beJVM	Group151.TxInjector.txiJVM1	Group152.Backend.beJVM	Group152.TxInjector.txiJVM1	Group153.Backend.beJVM	Group153.TxInjector.txiJVM1	Group154.Backend.beJVM	Group154.TxInjector.txiJVM1	Group155.Backend.beJVM	Group155.TxInjector.txiJVM1	Group156.Backend.beJVM	Group156.TxInjector.txiJVM1	Group157.Backend.beJVM	Group157.TxInjector.txiJVM1	Group158.Backend.beJVM	Group158.TxInjector.txiJVM1	Group159.Backend.beJVM	Group159.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group160.Backend.beJVM	Group160.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group25.Backend.beJVM	Group25.TxInjector.txiJVM1	Group26.Backend.beJVM	Group26.TxInjector.txiJVM1	Group27.Backend.beJVM	Group27.TxInjector.txiJVM1	Group28.Backend.beJVM	Group28.TxInjector.txiJVM1	Group29.Backend.beJVM	Group29.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group30.Backend.beJVM	Group30.TxInjector.txiJVM1	Group31.Backend.beJVM	Group31.TxInjector.txiJVM1	Group32.Backend.beJVM	Group32.TxInjector.txiJVM1	Group33.Backend.beJVM	Group33.TxInjector.txiJVM1	Group34.Backend.beJVM	Group34.TxInjector.txiJVM1	Group35.Backend.beJVM	Group35.TxInjector.txiJVM1	Group36.Backend.beJVM	Group36.TxInjector.txiJVM1	Group37.Backend.beJVM	Group37.TxInjector.txiJVM1	Group38.Backend.beJVM	Group38.TxInjector.txiJVM1	Group39.Backend.beJVM	Group39.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group40.Backend.beJVM	Group40.TxInjector.txiJVM1	Group41.Backend.beJVM	Group41.TxInjector.txiJVM1	Group42.Backend.beJVM	Group42.TxInjector.txiJVM1	Group43.Backend.beJVM	Group43.TxInjector.txiJVM1	Group44.Backend.beJVM	Group44.TxInjector.txiJVM1	Group45.Backend.beJVM	Group45.TxInjector.txiJVM1	Group46.Backend.beJVM	Group46.TxInjector.txiJVM1	Group47.Backend.beJVM	Group47.TxInjector.txiJVM1	Group48.Backend.beJVM	Group48.TxInjector.txiJVM1	Group49.Backend.beJVM	Group49.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group50.Backend.beJVM	Group50.TxInjector.txiJVM1	Group51.Backend.beJVM	Group51.TxInjector.txiJVM1	Group52.Backend.beJVM	Group52.TxInjector.txiJVM1	Group53.Backend.beJVM	Group53.TxInjector.txiJVM1	Group54.Backend.beJVM	Group54.TxInjector.txiJVM1	Group55.Backend.beJVM	Group55.TxInjector.txiJVM1	Group56.Backend.beJVM	Group56.TxInjector.txiJVM1	Group57.Backend.beJVM	Group57.TxInjector.txiJVM1	Group58.Backend.beJVM	Group58.TxInjector.txiJVM1	Group59.Backend.beJVM	Group59.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group60.Backend.beJVM	Group60.TxInjector.txiJVM1	Group61.Backend.beJVM	Group61.TxInjector.txiJVM1	Group62.Backend.beJVM	Group62.TxInjector.txiJVM1	Group63.Backend.beJVM	Group63.TxInjector.txiJVM1	Group64.Backend.beJVM	Group64.TxInjector.txiJVM1	Group65.Backend.beJVM	Group65.TxInjector.txiJVM1	Group66.Backend.beJVM	Group66.TxInjector.txiJVM1	Group67.Backend.beJVM	Group67.TxInjector.txiJVM1	Group68.Backend.beJVM	Group68.TxInjector.txiJVM1	Group69.Backend.beJVM	Group69.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group70.Backend.beJVM	Group70.TxInjector.txiJVM1	Group71.Backend.beJVM	Group71.TxInjector.txiJVM1	Group72.Backend.beJVM	Group72.TxInjector.txiJVM1	Group73.Backend.beJVM	Group73.TxInjector.txiJVM1	Group74.Backend.beJVM	Group74.TxInjector.txiJVM1	Group75.Backend.beJVM	Group75.TxInjector.txiJVM1	Group76.Backend.beJVM	Group76.TxInjector.txiJVM1	Group77.Backend.beJVM	Group77.TxInjector.txiJVM1	Group78.Backend.beJVM	Group78.TxInjector.txiJVM1	Group79.Backend.beJVM	Group79.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group80.Backend.beJVM	Group80.TxInjector.txiJVM1	Group81.Backend.beJVM	Group81.TxInjector.txiJVM1	Group82.Backend.beJVM	Group82.TxInjector.txiJVM1	Group83.Backend.beJVM	Group83.TxInjector.txiJVM1	Group84.Backend.beJVM	Group84.TxInjector.txiJVM1	Group85.Backend.beJVM	Group85.TxInjector.txiJVM1	Group86.Backend.beJVM	Group86.TxInjector.txiJVM1	Group87.Backend.beJVM	Group87.TxInjector.txiJVM1	Group88.Backend.beJVM	Group88.TxInjector.txiJVM1	Group89.Backend.beJVM	Group89.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1	Group90.Backend.beJVM	Group90.TxInjector.txiJVM1	Group91.Backend.beJVM	Group91.TxInjector.txiJVM1	Group92.Backend.beJVM	Group92.TxInjector.txiJVM1	Group93.Backend.beJVM	Group93.TxInjector.txiJVM1	Group94.Backend.beJVM	Group94.TxInjector.txiJVM1	Group95.Backend.beJVM	Group95.TxInjector.txiJVM1	Group96.Backend.beJVM	Group96.TxInjector.txiJVM1	Group97.Backend.beJVM	Group97.TxInjector.txiJVM1	Group98.Backend.beJVM	Group98.TxInjector.txiJVM1	Group99.Backend.beJVM	Group99.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170	170
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	900000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	256	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180	180
specjbb.comm.connect.worker.pool.min	1	1	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.controller.host	localhost	172.27.33.201
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=80, saturate=80}
specjbb.forkjoin.workers	128	{Tier1=150, Tier2=16, Tier3=32}
specjbb.group.count	1	160
specjbb.heartbeat.period	10000	400000
specjbb.heartbeat.threshold	100000	4000000
specjbb.mapreducer.pool.size	128	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 4573631 IR

High-bound (settled) is 3985215 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro SuperBlade A+ Blade Server SBA-4119S-C2N	3613168 SPECjbb2015-Distributed max-jOPS 610293 SPECjbb2015-Distributed critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: February 24, 2021
SPEC license #: 001176	Hardware Availability: Mar-2021	Software Availability: Jan-2021	Publication: Mon Mar 15 12:05:07 EDT 2021
