Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus v2 407053 SPECjbb2015-MultiJVM max-jOPS
155985 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Feb 21, 2021
SPEC license #: 3 Hardware Availability: Apr-2021 Software Availability: Jan-2021 Publication: Mon Mar 15 12:05:07 EDT 2021
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://www.hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL385 Gen10 Plus v2
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2021
ModelProLiant DL385 Gen10 Plus v2
Form Factor2U Rack
CPU NameAMD EPYC 7763
CPU Characteristics64 Core, 2.45 GHz, 256 MB L3 Cache(Max Boost Clock up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionA42 02/15/2021
CPU Frequency (MHz)2450
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk3 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18.22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
  • Memory Interleaving Mode=Disabled
  • Last-Level Cache(LLC) As NUMA Node=Enabled
  • L1 Stream HW Prefetcher=Disabled
  • L2 Stream HW Prefetcher=Disabled
  • Minimum Processor Idle Power Core C-State=No C-states
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • tuned-adm profile throughput-performance
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 600000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000

Tuning

Used numactl to affinitize each Backend JVM to a NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms4g -Xmx4g -Xmn3g -XX:+UseParallelGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2
Tuning

Used numactl to affinitize each Transaction Injector JVM to a NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9--localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 402479 407053 411627 416200 420774
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 116627 125775 153216 185232 221821 155985
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4574 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
1000us 4574 / 9147 4574 / 9147 - / 4574 - / 4574 - / 4574 - / 4574
5000us 352170 / 356743 288139 / 292712 77752 / 82325 73178 / 77752 36589 / 41163 4574 / 9147
10000us 361317 / 365890 329301 / 333875 242402 / 246976 196666 / 201240 114341 / 118914 18295 / 9147
25000us 365890 / 370464 343022 / 347596 297286 / 301860 265271 / 269844 128062 / 123488 18295 / 9147
50000us 365890 / 370464 352170 / 356743 311007 / 315580 283565 / 288139 150930 / 155503 18295 / 9147
75000us 370464 / 375038 356743 / 361317 324728 / 329301 292712 / 297286 182945 / 187519 18295 / 9147
100000us 370464 / 375038 361317 / 365890 329301 / 333875 301860 / 306433 219534 / 224108 18295 / 9147
200000us 388759 / 393332 365890 / 370464 352170 / 356743 338449 / 343022 301860 / 306433 18295 / 9147
500000us 402479 / 407053 388759 / 393332 375038 / 379611 370464 / 375038 365890 / 370464 297286 / 274418
1000000us 407053 / - 402479 / 407053 397906 / 402479 397906 / 402479 388759 / 393332 365890 / 370464

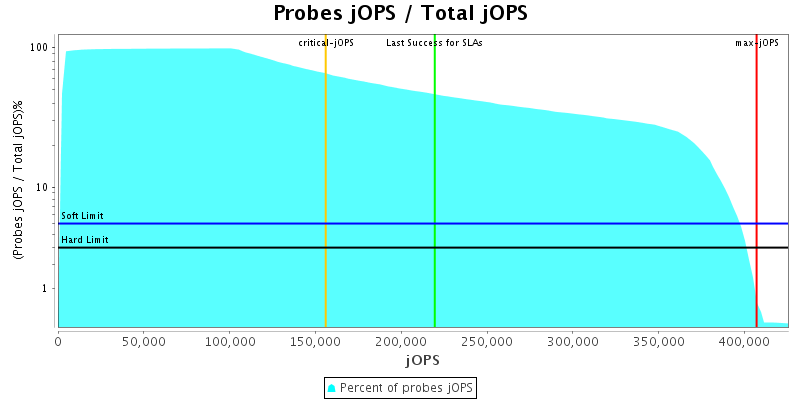

Probes jOPS / Total jOPS

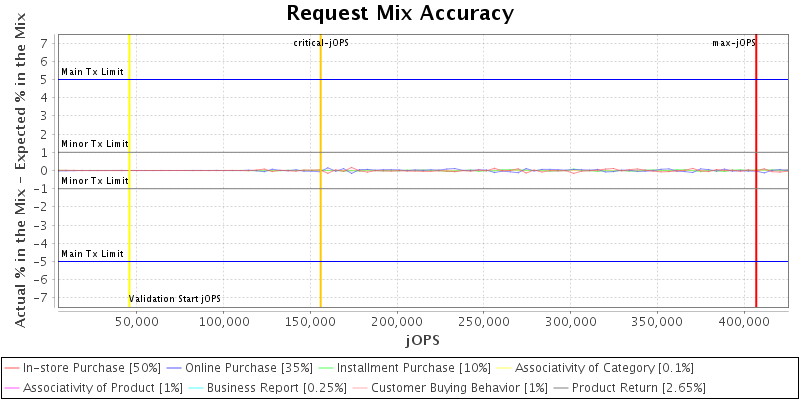

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 128 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 800000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000
specjbb.comm.connect.timeouts.read 60000 800000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000
specjbb.comm.connect.timeouts.write 60000 800000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000 700000
specjbb.comm.connect.worker.pool.max 256 128 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111
specjbb.comm.connect.worker.pool.min 1 32 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 256 {Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 457363 IR
High-bound (settled) is 424000 IR
