SPECjbb2015 Report for jbb2015-20210224-00603 : 210387 max-jOPS ; 71928 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL345 Gen10 Plus
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Apr-2021
Model	ProLiant DL345 Gen10 Plus
Form Factor	2U Rack
CPU Name	AMD EPYC 7763
CPU Characteristics	64 Core, 2.45 GHz, 256 MB L3 Cache(Max Boost Clock up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	A43 02/15/2021
CPU Frequency (MHz)	2450
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	2 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	8 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Ubuntu 20.04.1 LTS
Vendor	Ubuntu
Vendor URL	https://ubuntu.com//
Version	5.4.0-56-generic
Available	Nov-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 15.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket Memory Interleaving Mode=Disabled Last-Level Cache(LLC) As NUMA Node=Enabled L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled Minimum Processor Idle Power Core C-State=No C-states
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 655350 tuned-adm profile throughput-performance echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning	Used numactl to affinitize each Backend JVM to a NUMA node. numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Transaction Injector JVM to a NUMA node. numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	208101	210387	212674	214961	217248

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	51453	62887	69748	85755	99476	71928

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2287	- / 2287	- / 2287	- / 2287	- / 2287	- / 2287
1000us	2287 / 4574	2287 / 4574	- / 2287	- / 2287	- / 2287	- / 2287
5000us	176085 / 178372	148643 / 77752	34302 / 36589	32015 / 34302	25155 / 27442	2287 / 4574
10000us	180659 / 182946	164651 / 166938	109767 / 112054	86899 / 89186	50310 / 52597	9147 / 4574
25000us	182946 / 185232	173798 / 176085	150930 / 153217	130349 / 132636	66318 / 59457	9147 / 4574
50000us	185232 / 187519	178372 / 180659	160077 / 162364	146356 / 144070	68605 / 70891	9147 / 4574
75000us	187519 / 189806	180659 / 182946	164651 / 166938	148643 / 150930	84612 / 86899	9147 / 4574
100000us	187519 / 189806	180659 / 182946	166938 / 169225	155504 / 157791	98333 / 100620	9147 / 4574
200000us	194380 / 196667	187519 / 189806	178372 / 180659	171511 / 173798	153217 / 155504	9147 / 4574
500000us	208101 / 210387	198953 / 201240	189806 / 192093	187519 / 189806	182946 / 185232	160077 / 121201
1000000us	210387 / -	208101 / 210387	201240 / 203527	198953 / 201240	196667 / 198953	185232 / 187519

Number of probes

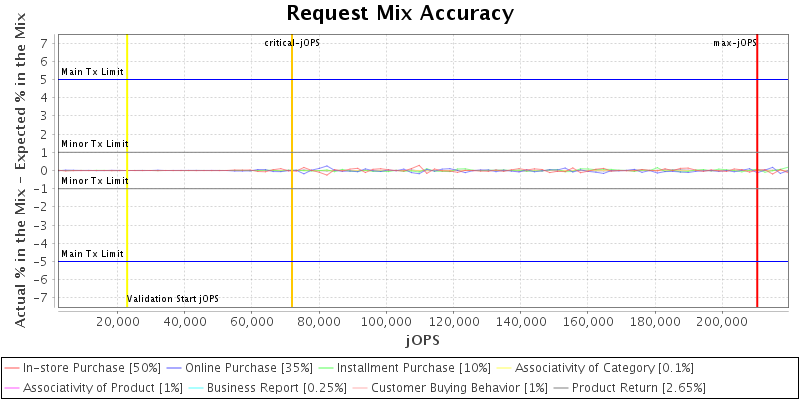

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

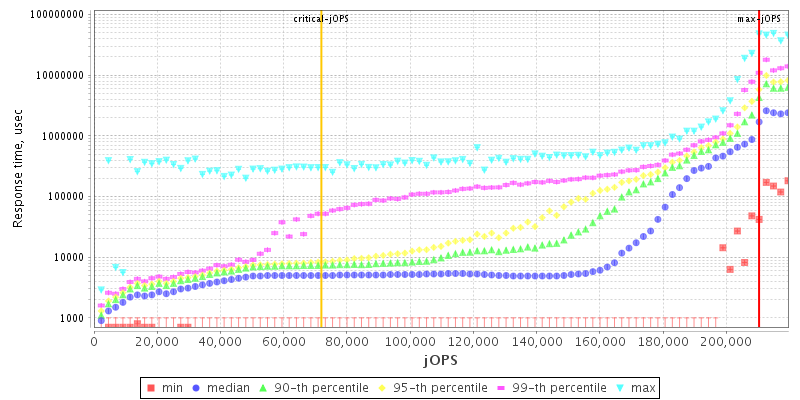

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	128	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	4	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.timeouts.connect	60000	800000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.timeouts.read	60000	800000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.timeouts.write	60000	800000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.worker.pool.max	256	128	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111	111
specjbb.comm.connect.worker.pool.min	1	32	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64
specjbb.customerDriver.threads	64	{=64, probe=64, saturate=64}
specjbb.forkjoin.workers	128	{Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	128	32
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 228682 IR

High-bound (settled) is 219126 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise ProLiant DL345 Gen10 Plus	210387 SPECjbb2015-MultiJVM max-jOPS 71928 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: Feb 22, 2021
SPEC license #: 3	Hardware Availability: Apr-2021	Software Availability: Jan-2021	Publication: Mon Mar 15 12:05:07 EDT 2021
