SPECjbb2015 Report for jbb2015-20210210-00600 : 804669 max-jOPS ; 418976 critical-jOPS

SUT Description

Hardware hw_1
Name	Superdome Flex 280
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Dec-2020
Model	Superdome Flex 280
Form Factor	2 x 5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	224
Cores Per Chip	28
Threads Per System	448
Threads Per Core	2
Version	1.0.176
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	6144
# and size of DIMM(s)	48 x 128 GB
Memory Details	128 GB 4DRx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	8 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 15.0.2
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Superdome Flex 280
Vendor	None
Vendor URL	None
Available	Dec-2020
Model	Superdome Flex 280
Form Factor	2 x 5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	224
Cores Per Chip	28
Threads Per System	448
Threads Per Core	2
Version	1.0.176
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 1 TB 7200 RPM HDD SATA
File System	XFS
Memory Amount (GB)	3072
# and size of DIMM(s)	48 x 64 GB
Memory Details	64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	8 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	OpenJDK 15.0.2
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Sub-NUMA Clustering=Enabled Memory Patrol Scrubbing=Disabled Enhanced Processor Performance=Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(16)
OS Image Description	os_1
Tuning	SELinux=disabled tuned-adm profile=accelerator-performance ulimit -n 65535 echo 16 > /proc/sys/kernel/sched_nr_migrate echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms30g -Xmx30g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:+UseRTMDeopt -XX:UseAVX=0 -XX:LoopUnrollLimit=100 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2
Tuning	Used numactl to affinitize each Backend JVM to each NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc numactl --cpunodebind=12 --localalloc numactl --cpunodebind=13 --localalloc numactl --cpunodebind=14 --localalloc numactl --cpunodebind=15 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Sub-NUMA Clustering=Enabled Memory Patrol Scrubbing=Disabled Enhanced Processor Performance=Enabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description	os_2
Tuning	SELinux=disabled tuned-adm profile=accelerator-performance ulimit -n 65535 echo 16 > /proc/sys/kernel/sched_nr_migrate echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	None
Notes	None

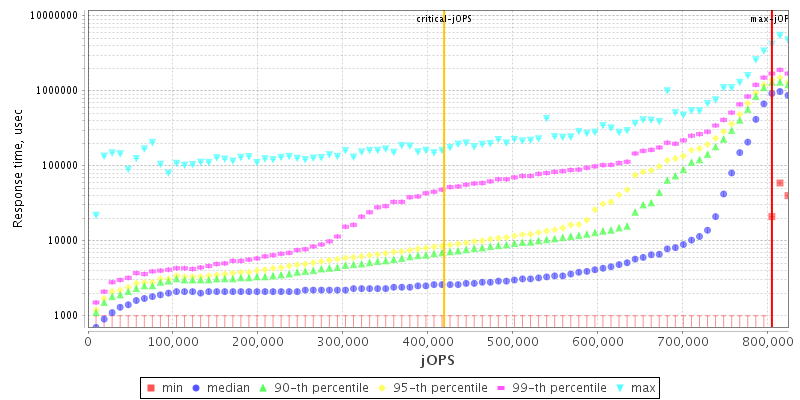

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	785736	795203	804669	814136	823603

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	288734	336067	421268	525401	601135	418976

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	9467 / 18933	- / 9467	- / 9467	- / 9467	- / 9467	- / 9467
1000us	388135 / 397601	18933 / 28400	- / 9467	- / 9467	- / 9467	- / 9467
5000us	757336 / 766803	624802 / 634269	321868 / 331334	255601 / 265068	160934 / 170401	- / 9467
10000us	766803 / 776269	700536 / 710002	530135 / 539602	463868 / 473335	284001 / 293468	- / 9467
25000us	776269 / 785736	738403 / 747869	643736 / 653202	586935 / 596402	331334 / 340801	9467 / 18933
50000us	776269 / 785736	747869 / 757336	672136 / 681602	634269 / 643736	416535 / 426001	9467 / 18933
75000us	776269 / 785736	747869 / 757336	691069 / 700536	643736 / 653202	520668 / 530135	9467 / 18933
100000us	785736 / 795203	757336 / 766803	700536 / 710002	672136 / 681602	596402 / 605869	94667 / 18933
200000us	785736 / 795203	766803 / 776269	738403 / 747869	728936 / 738403	691069 / 681602	473335 / 75734
500000us	795203 / 804669	785736 / 795203	766803 / 776269	766803 / 776269	747869 / 757336	700536 / 681602
1000000us	804669 / -	804669 / -	785736 / 795203	785736 / 795203	776269 / 785736	738403 / 747869

Number of probes

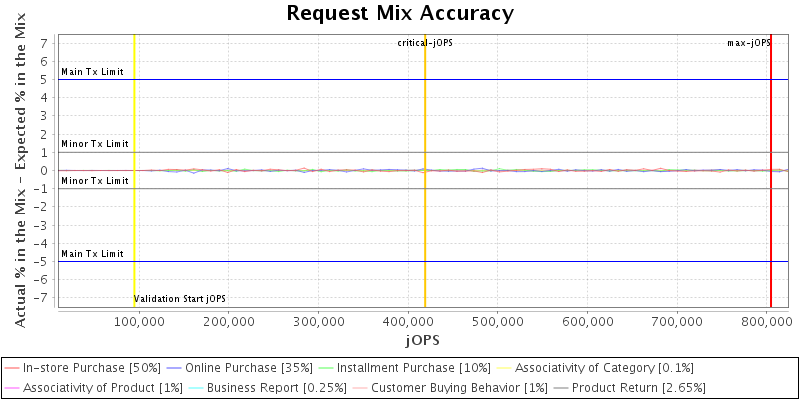

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	12
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.host	localhost	192.168.0.3
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	448	{Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count	1	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 946670 IR

High-bound (settled) is 840276 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise Superdome Flex 280	804669 SPECjbb2015-Distributed max-jOPS 418976 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Fort Collins, Colorado	Test date: January 27, 2021
SPEC license #: 3	Hardware Availability: Dec-2020	Software Availability: Jan-2021	Publication: Thu Feb 25 14:36:03 EST 2021
