SPECjbb2015
Copyright © 2015-2021 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise Superdome Flex 280 303534 SPECjbb2015-Composite max-jOPS
141014 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, Colorado Test date: January 27, 2021
SPEC license #: 3 Hardware Availability: Dec-2020 Software Availability: Jan-2021 Publication: Thu Feb 25 14:36:03 EST 2021
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationRack Mount Chassis
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSuperdome Flex 280
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableDec-2020
ModelSuperdome Flex 280
Form Factor5U Rack
CPU NameIntel Xeon Platinum 8380H CPU
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version1.0.176
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 1 TB 7200 RPM SATA
File SystemXFS
Memory Amount (GB)3072
# and size of DIMM(s)24 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRedHat
Vendor URLhttp://redhat.com/
Version4.18.0-193.el8.x86_64
AvailableApril-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 15.0.2
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
Notes

Community Support:

Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Sub-NUMA Clustering=Enabled
  • Memory Patrol Scrubbing=Disabled
  • Snoop Throttle Configuration=Disabled
  • Enhanced Processor Performance=Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 819200
  • ulimit -s 819200
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • sysctl net.core.wmem_max=12582912
  • sysctl net.core.rmem_max=12582912
  • sysctl net.ipv4.tcp_rmem='10240 87380 12582912'
  • sysctl net.ipv4.tcp_wmem='10240 87380 12582912'
  • sysctl net.core.netdev_max_backlog=655560
  • sysctl net.core.somaxconn=32768
  • sysctl net.ipv4.tcp_no_metrics_save=1
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 5000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-server -Xms530g -Xmx530g -Xmn500g -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=17 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 300004 303534 307063 310592 314122
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 104119 132355 142943 161473 175296 141014
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3529 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
1000us 197650 / 201179 - / 3529 - / 3529 - / 3529 - / 3529 - / 3529
5000us 254121 / 257651 169414 / 172944 102354 / 105884 91766 / 95295 60001 / 63530 21177 / 10588
10000us 264709 / 268239 232944 / 236474 187061 / 190591 169414 / 165885 102354 / 105884 21177 / 10588
25000us 282357 / 285886 261180 / 264709 229415 / 232944 211768 / 215297 137649 / 127061 49412 / 10588
50000us 289416 / 292945 275298 / 278827 247062 / 250592 229415 / 232944 141178 / 144708 81178 / 10588
75000us 289416 / 292945 278827 / 282357 254121 / 257651 229415 / 232944 169414 / 158826 105884 / 10588
100000us 296475 / 292945 282357 / 285886 257651 / 261180 240003 / 232944 180002 / 172944 130590 / 10588
200000us 296475 / 300004 289416 / 292945 268239 / 271768 250592 / 254121 215297 / 172944 155296 / 137649
500000us 303534 / - 300004 / 303534 285886 / 289416 278827 / 282357 268239 / 261180 240003 / 172944
1000000us 303534 / - 303534 / - 303534 / - 303534 / - 303534 / - 285886 / 289416
Number of probes
Probes jOPS / Total jOPS

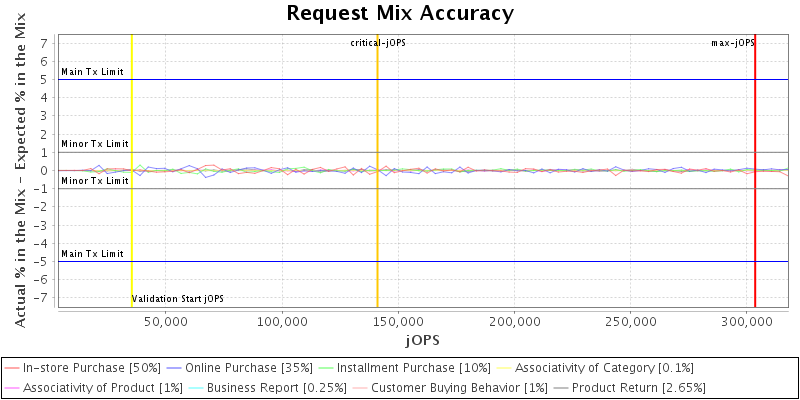

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

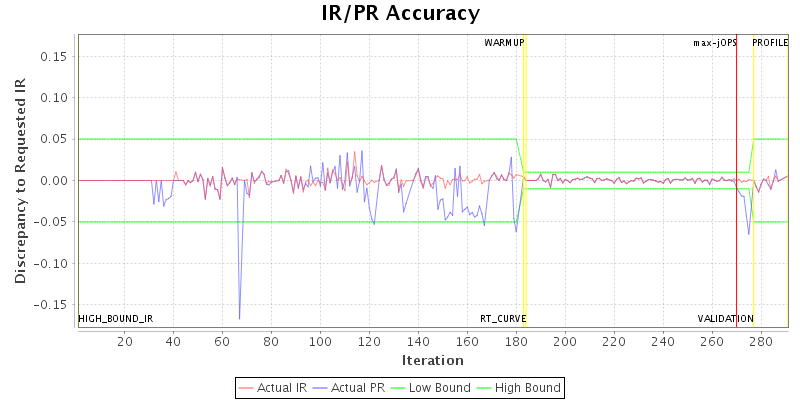

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.forkjoin.workers 224 {Tier1=224, Tier2=110, Tier3=55}
specjbb.group.count 1 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 352946 IR
High-bound (settled) is 326066 IR
