Inspur Corporation Inspur NF8260M6 397601 SPECjbb2015-MultiJVM max-jOPS
191601 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 1, 2020
SPEC license #: 3358 Hardware Availability: Nov-2020 Software Availability: Oct-2020 Publication: Thu Nov 19 16:57:49 EST 2020
Benchmark Results Summary

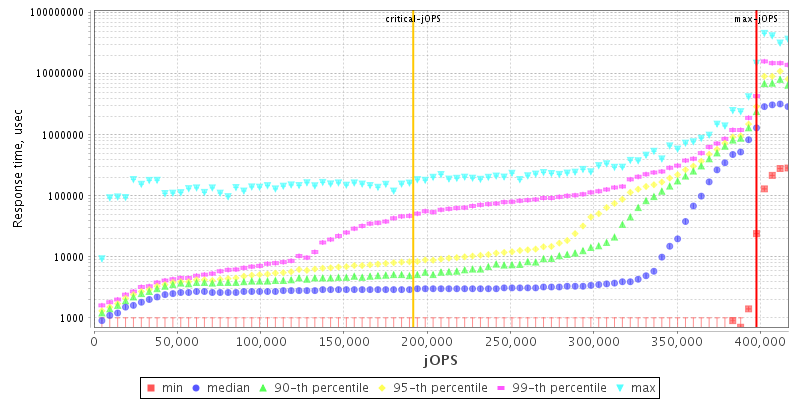

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF8260M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableNov-2020
ModelInspur NF8260M6
Form Factor2U
CPU NameIntel Xeon Platinum 8380HL
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version4.09.08
CPU Frequency (MHz)2900
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 2TB NVMe SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)48 x 16GB
Memory Details48 x 16GB 2Rx8 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 15.0.1
AvailableOct-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • tuned-adm profile throughput-performance
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx29g -Xms29g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:+UseRTMLocking -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:+UseRTMDeopt -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 392868 397601 402335 407068 411801
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 125433 153834 191700 243767 286367 191601
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us 23667 / 28400 4733 / 9467 - / 4733 - / 4733 - / 4733 - / 4733
5000us 359735 / 364468 331334 / 336068 189334 / 179867 94667 / 99400 61534 / 66267 - / 4733
10000us 364468 / 369201 340801 / 345535 274534 / 279268 222467 / 227201 127800 / 123067 4733 / 9467
25000us 369201 / 373935 350268 / 355001 312401 / 317134 288734 / 293468 151467 / 156201 4733 / 9467
50000us 369201 / 373935 355001 / 359735 321868 / 326601 298201 / 302934 189334 / 194067 4733 / 9467
75000us 369201 / 373935 359735 / 364468 326601 / 331334 312401 / 317134 241401 / 246134 4733 / 9467
100000us 373935 / 378668 364468 / 369201 336068 / 340801 317134 / 321868 284001 / 288734 80467 / 23667
200000us 378668 / 383401 369201 / 373935 350268 / 355001 345535 / 350268 321868 / 326601 255601 / 203534
500000us 392868 / 397601 383401 / 388135 369201 / 373935 369201 / 373935 359735 / 364468 340801 / 336068
1000000us 397601 / - 392868 / 397601 388135 / 392868 388135 / 392868 378668 / 383401 369201 / 373935
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 224 {Tier1=180, Tier2=56, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 224 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 425249 IR
