SPECjbb2015 Report for jbb2015-20201020-00575 : 637526 max-jOPS ; 557903 critical-jOPS

SUT Description

Hardware hw_1
Name	Superdome Flex 280
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2020
Model	Superdome Flex 280
Form Factor	2 x 5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	224
Cores Per Chip	28
Threads Per System	448
Threads Per Core	2
Version	1.0.140
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	6144
# and size of DIMM(s)	48 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	8 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 15
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15
Available	Sep-2020
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Superdome Flex 280
Vendor	None
Vendor URL	None
Available	Nov-2020
Model	Superdome Flex 280
Form Factor	2 x 5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	224
Cores Per Chip	28
Threads Per System	448
Threads Per Core	2
Version	1.0.140
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 1 TB 7200 RPM HDD SATA
File System	XFS
Memory Amount (GB)	3072
# and size of DIMM(s)	48 x 64 GB
Memory Details	64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	8 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.19.1.el8_2.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	OpenJDK 15
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15
Available	Sep-2020
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Memory Patrol Scrubbing=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(16)
OS Image Description	os_1
Tuning	SELinux=disabled tuned-adm profile=accelerator-performance ulimit -n 655350 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 155000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 16 >/proc/sys/kernel/sched_nr_migrate
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:UseAVX=0
Tuning	Used numactl to affinitize each Backend JVM to each NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Memory Patrol Scrubbing=Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description	os_2
Tuning	SELinux=disabled tuned-adm profile=accelerator-performance ulimit -n 655530 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 155000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 16 >/proc/sys/kernel/sched_nr_migrate
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	None
Notes	None

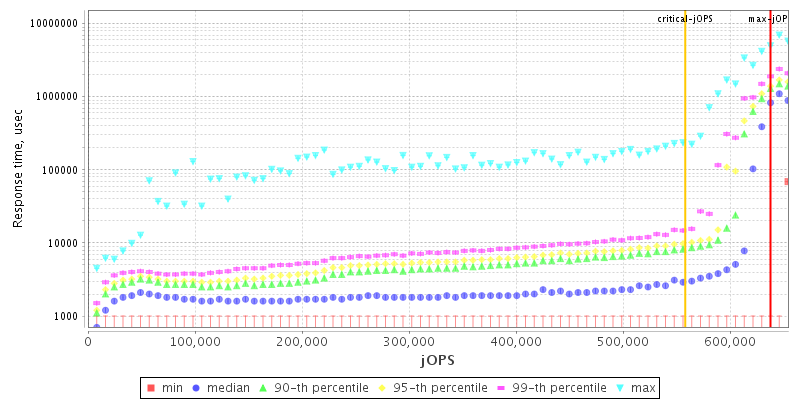

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	621179	629353	637526	645699	653873

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	469971	576225	584399	584399	584399	557903

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8173 / 16347	- / 8173	- / 8173	- / 8173	- / 8173	- / 8173
1000us	498578 / 506751	8173 / 16347	- / 8173	- / 8173	- / 8173	- / 8173
5000us	621179 / 629353	596659 / 604832	392324 / 400497	261549 / 269723	187988 / 196162	8173 / 16347
10000us	629353 / 637526	613006 / 621179	580312 / 588486	555792 / 563965	465884 / 474058	40867 / 49040
25000us	629353 / 637526	613006 / 621179	604832 / 613006	588486 / 596659	580312 / 572139	49040 / 57214
50000us	629353 / 637526	613006 / 621179	604832 / 613006	588486 / 596659	580312 / 588486	130775 / 57214
75000us	629353 / 637526	613006 / 621179	604832 / 613006	588486 / 596659	580312 / 588486	155295 / 81734
100000us	629353 / 637526	613006 / 621179	604832 / 613006	604832 / 596659	580312 / 588486	286069 / 98081
200000us	629353 / 637526	621179 / 629353	604832 / 613006	604832 / 613006	588486 / 596659	531272 / 539445
500000us	637526 / -	629353 / 637526	613006 / 621179	613006 / 621179	604832 / 613006	572139 / 580312
1000000us	637526 / -	637526 / -	629353 / 637526	621179 / 629353	621179 / 629353	580312 / 588486

Number of probes

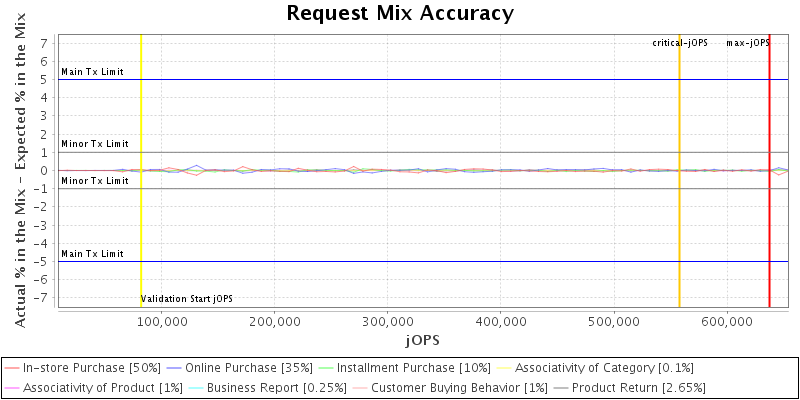

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

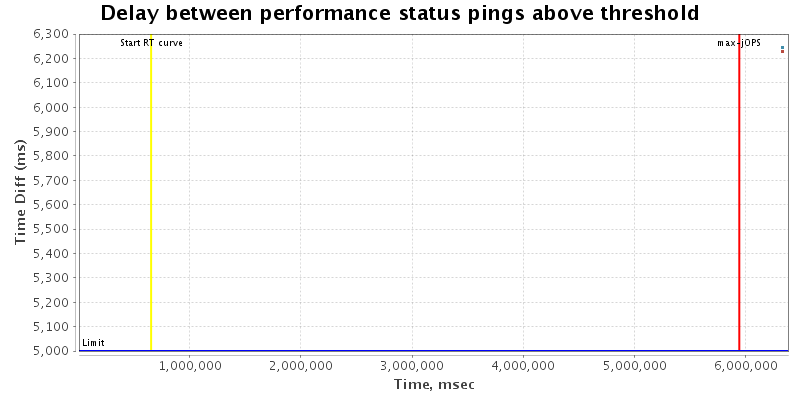

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	12
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.host	localhost	192.168.0.3
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	448	{Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count	1	8
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 817341 IR

High-bound (settled) is 681251 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise Superdome Flex 280	637526 SPECjbb2015-Distributed max-jOPS 557903 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Fort Collins, Colorado	Test date: October 19, 2020
SPEC license #: 3	Hardware Availability: Nov-2020	Software Availability: Sep-2020	Publication: Fri Nov 6 14:33:41 EST 2020
