SPECjbb2015
Copyright © 2015-2020 Standard Performance Evaluation Corporation
KTNF KR580S1 111549 SPECjbb2015-Composite max-jOPS
74112 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Sep 21, 2020
SPEC license #: A83 Hardware Availability: May-2020 Software Availability: Jul-2020 Publication: Fri Oct 23 12:25:08 EDT 2020
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorKTNF
Vendor URLhttp://www.ktnf.co.kr
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores40
Total Threads80
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameKR580S1
VendorKTNF
Vendor URLhttp://www.ktnf.co.kr
AvailableMay-2020
ModelKR580S1
Form Factor2U
CPU NameIntel Xeon Gold 6248
CPU Characteristics20Core, 2.50GHz, 27.5MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System40
Cores Per Chip20
Threads Per System80
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache27.5 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemXFS
Memory Amount (GB)384
# and size of DIMM(s)12 x 32GB
Memory Details12 x 32GB 2Rx4 PC4-2933U-R
# and type of Network Interface Cards (NICs)2 x 1 Gbit NICs
Power Supply Quantity and Rating (W)800w Dual Redundant
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.8 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version5.7.8-1.el7.elrepo.x86_64
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 14.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 14.0.2
AvailableJul-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 65536
  • SELinux=enforcing
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms320g -Xmx320g -Xmn300g -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=1 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=80 -XX:-UseBiasedLocking -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=13k -XX:G1RSetSparseRegionEntries=0 -XX:UseAVX=0 -XX:-UseG1GC
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 110323 111549 112775 114000 115226
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 53323 76817 78860 82435 83968 74112
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1226 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
1000us 88258 / 4903 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
5000us 105420 / 106645 94387 / 95613 46581 / 45355 35548 / 36774 26968 / 28194 3677 / 2452
10000us 106645 / 107871 96839 / 98065 71097 / 72323 64968 / 66194 52710 / 53936 18387 / 2452
25000us 107871 / 109097 102968 / 104194 90710 / 91936 87033 / 88258 80903 / 74774 28194 / 4903
50000us 107871 / 109097 104194 / 105420 95613 / 96839 94387 / 93162 80903 / 74774 49032 / 4903
75000us 109097 / 110323 105420 / 106645 98065 / 99291 94387 / 93162 83355 / 79678 49032 / 4903
100000us 109097 / 110323 106645 / 107871 100516 / 101742 98065 / 93162 83355 / 84581 64968 / 4903
200000us 110323 / 111549 107871 / 109097 104194 / 105420 100516 / 101742 95613 / 91936 82129 / 79678
500000us 111549 / - 110323 / 111549 107871 / 109097 106645 / 107871 104194 / 105420 102968 / 93162
1000000us 111549 / - 111549 / - 110323 / 111549 110323 / 111549 110323 / 111549 104194 / 105420
Number of probes
Probes jOPS / Total jOPS

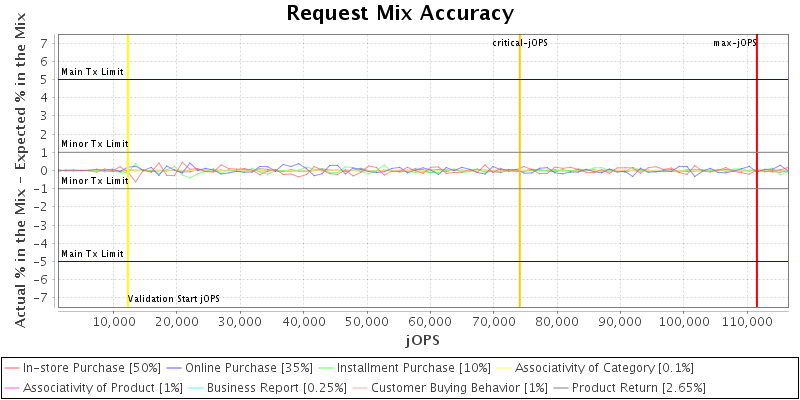

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 122581 IR
High-bound (settled) is 118652 IR
Copyright © 2015-2020 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
