SPECjbb2015
Copyright © 2015-2020 Standard Performance Evaluation Corporation
Inspur Corporation Inspur NF5180M5 169398 SPECjbb2015-Composite max-jOPS
138247 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Jul 20, 2020
SPEC license #: 3358 Hardware Availability: Jun-2020 Software Availability: Jul-2020 Publication: Mon Aug 31 18:28:58 EDT 2020
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameInspur NF5180M5
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableFeb-2020
ModelInspur NF5180M5
Form Factor1U
CPU NameIntel Xeon Gold 6258R
CPU Characteristics28 Core, 2.7 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
Version4.1.10 8/6/2020
CPU Frequency (MHz)2700
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 2TB NVMe SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details24 x 32GB 2Rx8 PC4-2933Y-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRedHat Linux Enterprise Server 8.1
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-147
AvailableNov-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 14.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 14.0.2
AvailableJul-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 65536
  • tuned-adm profile=throughput-performance
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms650g -Xmx650g -Xmn630g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=1 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=112 -XX:-UseBiasedLocking -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=13k -XX:G1RSetSparseRegionEntries=0 -XX:UseAVX=0 -XX:-UseG1GC
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 167280 169398 171515 173633 175750
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 97892 131565 150399 158863 164104 138247
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 40232 / 38114 2117 / 4235 - / 2117 - / 2117 - / 2117 - / 2117
1000us 146105 / 141870 57172 / 55054 8470 / 10587 4235 / 6352 4235 / 6352 - / 2117
5000us 169398 / - 154575 / 156693 114343 / 116461 99521 / 97404 61407 / 59289 10587 / 2117
10000us 169398 / - 165163 / 167280 141870 / 137636 129166 / 131283 103756 / 78346 12705 / 2117
25000us 169398 / - 169398 / - 163045 / 165163 154575 / 156693 139753 / 78346 12705 / 14822
50000us 169398 / - 169398 / - 169398 / - 165163 / 167280 152458 / 78346 12705 / 14822
75000us 169398 / - 169398 / - 169398 / - 169398 / - 160928 / 78346 12705 / 14822
100000us 169398 / - 169398 / - 169398 / - 169398 / - 163045 / 165163 12705 / 14822
200000us 169398 / - 169398 / - 169398 / - 169398 / - 169398 / - 40232 / 14822
500000us 169398 / - 169398 / - 169398 / - 169398 / - 169398 / - 133401 / 31762
1000000us 169398 / - 169398 / - 169398 / - 169398 / - 169398 / - 165163 / 88934
Number of probes
Probes jOPS / Total jOPS

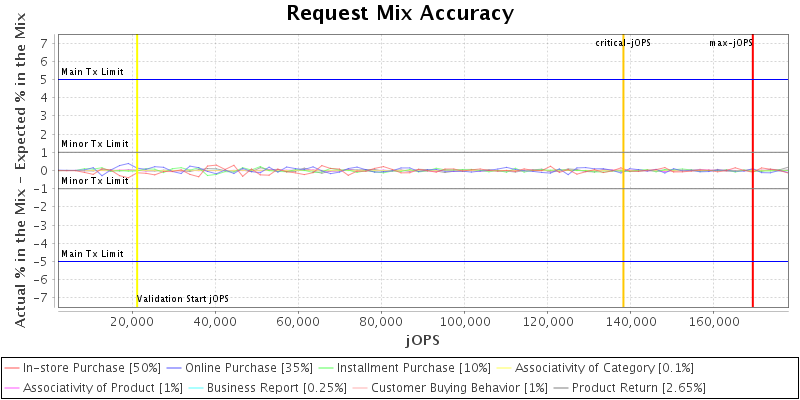

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 112 {Tier1=180, Tier2=56, Tier3=28}
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 211747 IR
High-bound (settled) is 180967 IR
Copyright © 2015-2020 Standard Performance Evaluation Corporation
