SPECjbb2015 Report for jbb2015-20200326-00531 : 2998803 max-jOPS ; 1416967 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro SuperBlade A+ Blade Server SBA-4119S-C2N
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Apr-2020
Model	BH12SSi
Form Factor	8U
CPU Name	AMD EPYC 7702P
CPU Characteristics	64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems	1
Nodes Per System	20
Chips Per System	20
Cores Per System	1280
Cores Per Chip	64
Threads Per System	2560
Threads Per Core	2
Version	1.0 03/23/2020
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	20 x 1TB M.2 PCIe Gen3
File System	xfs
Memory Amount (GB)	10240
# and size of DIMM(s)	160 x 64GB
Memory Details	64GB 2Rx4 PC4-3200AA
# and type of Network Interface Cards (NICs)	Onboard 1x25GbE dual-port NIC
Power Supply Quantity and Rating (W)	6 x 2200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux 7.7 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-1062.el7.x86_64
Available	Aug-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 13.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 13.0.2
Available	Jan-2020
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	Supermicro A+ Server 2014TP-HTR
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Aug-2019
Model	H12SST-PS
Form Factor	2U
CPU Name	AMD EPYC 7702P
CPU Characteristics	64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems	1
Nodes Per System	2
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	1.0c 11/25/2019
CPU Frequency (MHz)	2000
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	2 x SATA 240GB SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	2RX4 PC4-3200AA
# and type of Network Interface Cards (NICs)	1x Supermicro AOC-MH25G-m2S2T Dual Port 25GbE SFP28 NIC
Power Supply Quantity and Rating (W)	1 x 2000W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Red Hat Enterprise Linux 7.7 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-1062.el7.x86_64
Available	Aug-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 13.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 13.0.2
Available	Jan-2020
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 Determinism Control = Manual Determinism Slider = Power Memory Clock Speed = 1467MHz L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(80)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms32736M -Xmx32736M -Xmn31736M -XX:-UseDynamicNumberOfGCThreads -XX:CICompilerCount=32 -XX:AllocatePrefetchInstr=2 -XX:+UseParallelOldGC -XX:ParallelGCThreads=32 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:SurvivorRatio=31 -XX:TargetSurvivorRatio=95 -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:LoopUnrollLimit=100 -XX:+UseTransparentHugePages
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to one NUMA node in every BH12SSi node in SuT Group1:numactl --cpunodebind=0 --membind=0 Group2:numactl --cpunodebind=1 --membind=1 Group3:numactl --cpunodebind=2 --membind=2 Group4:numactl --cpunodebind=3 --membind=3

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 Determinism Control = Manual Determinism Slider = Power Memory Clock Speed = 1467MHz L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(80)
OS Image Description	os_2
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms6g -Xmx6g -Xmn5g -XX:+UseParallelOldGC -XX:CICompilerCount=12 -XX:ParallelGCThreads=12
Tuning	None
Notes	Used numactl to interleave memory on all Nodes in Driver system numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize 20 Transaction Injector JVM to one NUMA node in Driver system Group1:numactl --cpunodebind=0 --membind=0 Group2:numactl --cpunodebind=0 --membind=0 Group3:numactl --cpunodebind=0 --membind=0 ... Group20:numactl --cpunodebind=0 --membind=0 Group21:numactl --cpunodebind=1 --membind=1 Group22:numactl --cpunodebind=1 --membind=1 ... Group40:numactl --cpunodebind=1 --membind=1 ... Group60:numactl --cpunodebind=2 --membind=2 ... Group80:numactl --cpunodebind=3 --membind=3

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	2959345	2998803	3038261	3077719	3117177

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	1006177	1203467	1440215	1676962	1953168	1416967

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 39458	- / 39458	- / 39458	- / 39458	- / 39458	- / 39458
1000us	473495 / 512953	118374 / 157832	- / 39458	- / 39458	- / 39458	- / 39458
5000us	2959345 / 2998803	2249103 / 2288560	1223196 / 1262654	986448 / 1025906	552411 / 473495	- / 39458
10000us	2998803 / -	2722598 / 2762056	2012355 / 2051813	1815065 / 1854523	986448 / 1025906	- / 39458
25000us	2998803 / -	2840972 / 2880430	2525308 / 2564766	2288560 / 2328018	1183738 / 1223196	- / 39458
50000us	2998803 / -	2880430 / 2919887	2604224 / 2643682	2367476 / 2406934	1420486 / 1459944	39458 / 78916
75000us	2998803 / -	2919887 / 2959345	2643682 / 2683140	2446392 / 2485850	1657233 / 1696691	39458 / 78916
100000us	2998803 / -	2919887 / 2959345	2683140 / 2722598	2525308 / 2564766	1933439 / 1972897	39458 / 78916
200000us	2998803 / -	2998803 / -	2801514 / 2840972	2722598 / 2762056	2564766 / 2604224	789159 / 197290
500000us	2998803 / -	2998803 / -	2880430 / 2919887	2880430 / 2919887	2801514 / 2840972	2485850 / 2525308
1000000us	2998803 / -	2998803 / -	2959345 / 2998803	2919887 / 2959345	2880430 / 2919887	2762056 / 2801514

Number of probes

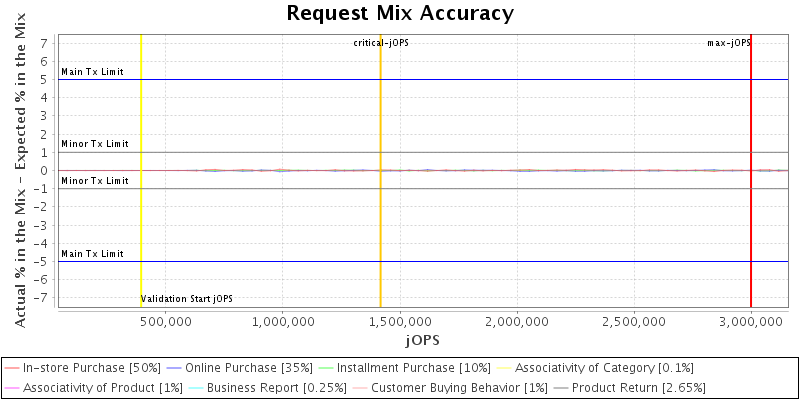

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	210
specjbb.comm.connect.selector.runner.count	0	3
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	90
specjbb.controller.host	localhost	172.27.33.243
specjbb.customerDriver.threads	64	{probe=64, saturate=64}
specjbb.forkjoin.workers	128	{Tier1=160, Tier2=14, Tier3=28}
specjbb.group.count	1	80
specjbb.heartbeat.period	10000	100000
specjbb.heartbeat.threshold	100000	1000000
specjbb.mapreducer.pool.size	128	28
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 3945794 IR

High-bound (settled) is 3339028 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro SuperBlade A+ Blade Server SBA-4119S-C2N	2998803 SPECjbb2015-Distributed max-jOPS 1416967 SPECjbb2015-Distributed critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: March 25, 2020
SPEC license #: 001176	Hardware Availability: Apr-2020	Software Availability: Jan-2020	Publication: Fri Apr 10 16:18:41 EDT 2020
