SPECjbb2015
Copyright © 2015-2020 Standard Performance Evaluation Corporation
Super Micro Computer, Inc Supermicro A+ AS-1114S-WN10RT Server 99291 SPECjbb2015-Composite max-jOPS
83971 SPECjbb2015-Composite critical-jOPS
Tested by: Super Micro Computer, Inc Test Sponsor: Super Micro Computer, Inc Test location: San Jose, California Test date: March 18, 2020
SPEC license #: 001176 Hardware Availability: Apr-2020 Software Availability: Jan-2020 Publication: Wed Apr 15 14:02:19 EDT 2020
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores24
Total Threads48
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSupermicro A+ AS-1114S-WN10RT Server
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
AvailableApr-2020
ModelH12SSW-NTR
Form Factor1U
CPU NameAMD EPYC 7F72
CPU Characteristics24 core, 3.2GHz, 192MB L3 Cache (Turbo Boost Technology up to 3.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System24
Cores Per Chip24
Threads Per System48
Threads Per Core2
VersionT20200225093557 02/25/2020
CPU Frequency (MHz)3200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache192MB (I+D) on chip per chip
Other CacheNone
Disk1 x Micron 9200 PRO NVMe SSD 3.5TB
File Systembtrfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 700w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttp://suse.com/
Version4.12.14-197.34-default
AvailableMay-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 13.0.2
AvailableJan-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • cTDP Control = Manual
  • cTDP = 240
  • Package Power Limit Control = Manual
  • Package Power Limit = 240
  • Memory Clock Speed = 1467MHz
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 4000 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled

  • Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms126g -Xmx126g -Xmn122g -server -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=48 -XX:-UseBiasedLocking -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=98 -XX:+UseTransparentHugePages -XX:InlineSmallCode=10k -XX:LoopUnrollLimit=1000 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:CICompilerCount=16
Tuning None
Notes

Used numactl to run on all available nodes

  • numactl --cpunodebind=0-1 --interleave=0-1
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 98065 99291 100516 101742 102968
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 58226 82946 92181 96226 97452 83971
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 14710 / 15936 1226 / 2452 - / 1226 - / 1226 - / 1226 - / 1226
1000us 89484 / 90710 7355 / 8581 3677 / 4903 3677 / 4903 2452 / 3677 - / 1226
5000us 98065 / 99291 93162 / 94387 66194 / 67420 53936 / 55161 33097 / 23290 4903 / 3677
10000us 99291 / - 98065 / 99291 87033 / 85807 78452 / 77226 57613 / 58839 4903 / 3677
25000us 99291 / - 99291 / - 98065 / 96839 93162 / 94387 84581 / 82129 4903 / 3677
50000us 99291 / - 99291 / - 98065 / 99291 98065 / 96839 93162 / 88258 4903 / 3677
75000us 99291 / - 99291 / - 99291 / - 98065 / 99291 95613 / 96839 4903 / 3677
100000us 99291 / - 99291 / - 99291 / - 99291 / - 98065 / 96839 8581 / 3677
200000us 99291 / - 99291 / - 99291 / - 99291 / - 98065 / 99291 64968 / 3677
500000us 99291 / - 99291 / - 99291 / - 99291 / - 99291 / - 87033 / 15936
1000000us 99291 / - 99291 / - 99291 / - 99291 / - 99291 / - 98065 / 96839

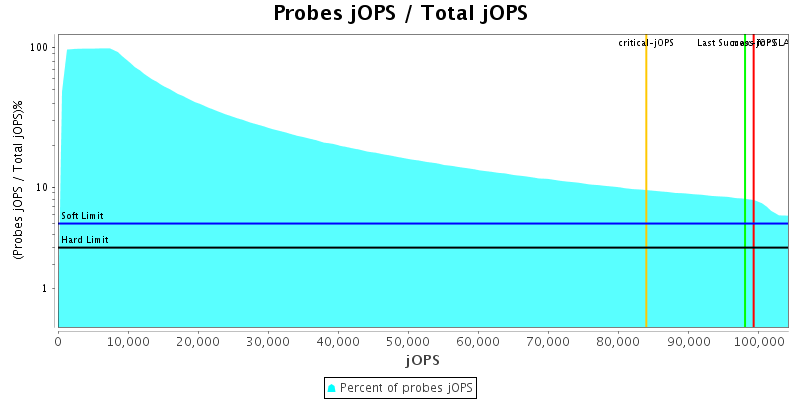

Number of probes
Probes jOPS / Total jOPS

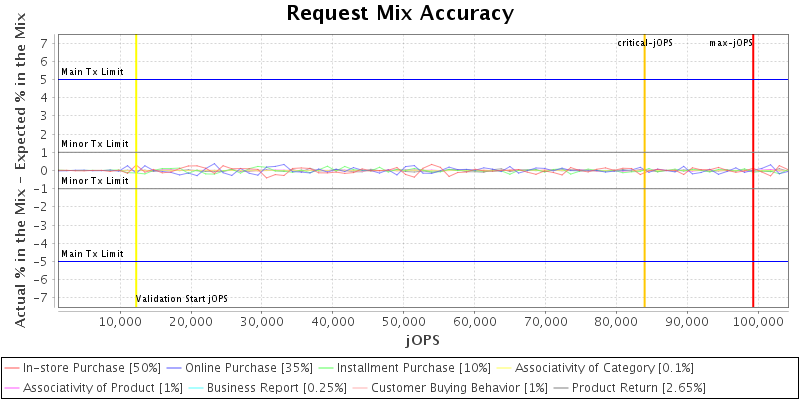

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

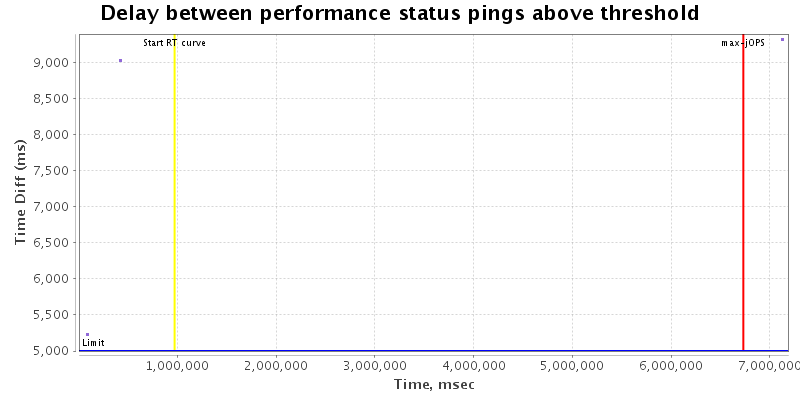

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

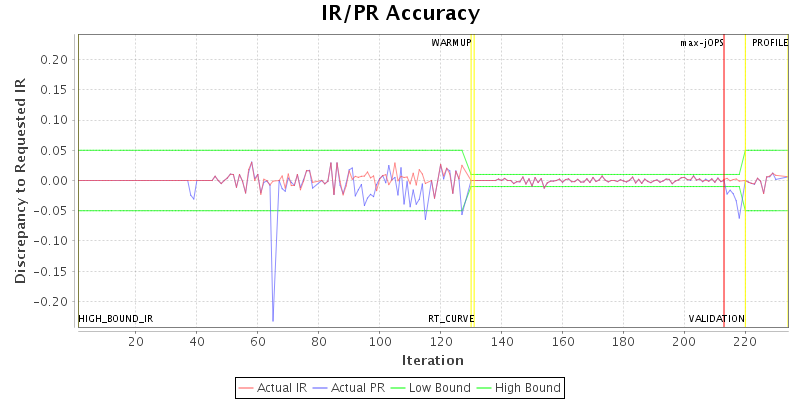

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {probe=80, saturate=95}
specjbb.forkjoin.workers 48 {Tier1=84, Tier2=4, Tier3=12}
specjbb.group.count 1 1
specjbb.mapreducer.pool.size 48 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 122581 IR
High-bound (settled) is 107689 IR
