SPECjbb2015
Copyright © 2015-2020 Standard Performance Evaluation Corporation
Super Micro Computer, Inc Supermicro A+ 2014TP-HTR Server 68976 SPECjbb2015-Composite max-jOPS
56661 SPECjbb2015-Composite critical-jOPS
Tested by: Super Micro Computer, Inc Test Sponsor: Super Micro Computer, Inc Test location: San Jose, California Test date: March 22, 2020
SPEC license #: 001176 Hardware Availability: Apr-2020 Software Availability: Jan-2020 Publication: Wed Apr 15 14:02:19 EDT 2020
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores16
Total Threads32
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSupermicro A+ 2014TP-HTR Server
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
AvailableAug-2019
ModelH12SST-PS
Form Factor2U
CPU NameAMD EPYC 7F52
CPU Characteristics16 core, 3.5GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.9GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System16
Cores Per Chip16
Threads Per System32
Threads Per Core2
VersionT20190710213757 07/10/2019
CPU Frequency (MHz)3500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x Toshiba KXG50ZNV1T02 NVMe SSD 1TB
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)8 x 64GB
Memory Details64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 2000w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.7 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-1062.el7.x86_64
AvailableAug-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 13.0.2
AvailableJan-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • cTDP Control = Manual
  • cTDP = 240
  • Package Power Limit Control = Manual
  • Package Power Limit = 240
  • Memory Clock Speed = 1600MHz
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 50000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled

  • Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms126g -Xmx126g -Xmn122g -server -XX:+UseParallelOldGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:+ScavengeBeforeFullGC -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=32 -XX:-UseBiasedLocking -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=98 -XX:+UseTransparentHugePages -XX:InlineSmallCode=10k -XX:LoopUnrollLimit=1000 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:-UseAdaptiveNUMAChunkSizing -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:CICompilerCount=16
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 68125 68976 69828 70679 71531
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 35340 59098 62589 65996 67699 56661
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2555 / 3406 - / 852 - / 852 - / 852 - / 852 - / 852
1000us 57906 / 58758 4258 / 5109 1703 / 2555 - / 852 - / 852 - / 852
5000us 68125 / 68976 65570 / 66422 43430 / 44281 34062 / 34914 19586 / 20437 4258 / 1703
10000us 68125 / 68976 67273 / 68125 61312 / 62164 55351 / 51945 34914 / 35766 4258 / 1703
25000us 68976 / - 68125 / 68976 66422 / 67273 64719 / 65570 60461 / 57055 4258 / 2555
50000us 68976 / - 68125 / 68976 67273 / 68125 67273 / 68125 62164 / 63015 20437 / 3406
75000us 68976 / - 68976 / - 68125 / 68976 67273 / 68125 66422 / 65570 20437 / 3406
100000us 68976 / - 68976 / - 68125 / 68976 68125 / 68976 67273 / 68125 40023 / 3406
200000us 68976 / - 68976 / - 68125 / 68976 68125 / 68976 67273 / 68125 43430 / 13625
500000us 68976 / - 68976 / - 68976 / - 68976 / - 68125 / 68976 62164 / 23844
1000000us 68976 / - 68976 / - 68976 / - 68976 / - 68976 / - 67273 / 68125

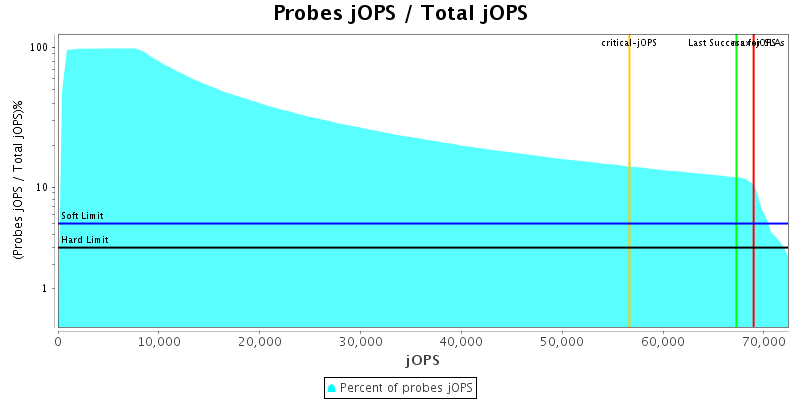

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

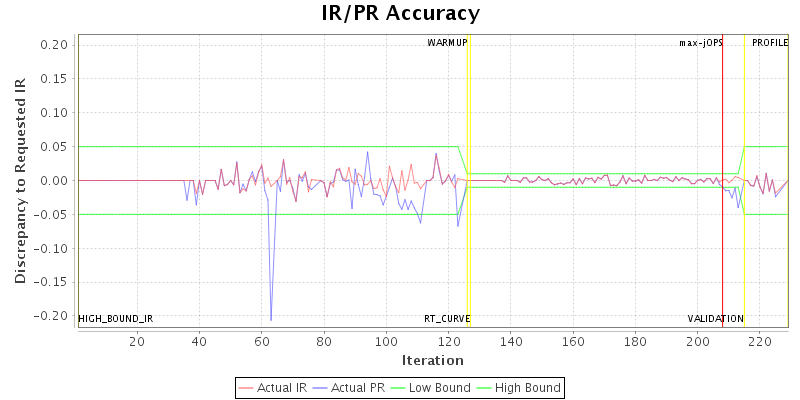

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {probe=80, saturate=95}
specjbb.forkjoin.workers 32 {Tier1=64, Tier2=4, Tier3=12}
specjbb.group.count 1 1
specjbb.mapreducer.pool.size 32 2
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 85156 IR
High-bound (settled) is 74814 IR
