SPECjbb2015 Report for jbb2015-20191023-00495 : 146383 max-jOPS ; 90134 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL325 Gen10 Plus
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2019
Model	ProLiant DL325 Gen10 Plus
Form Factor	1U Rack
CPU Name	AMD EPYC 7742
CPU Characteristics	64 Core, 2.25 GHz, 256 MB L3 Cache(Turbo Boost Technology up to 3.4 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	A43 10/07/2019
CPU Frequency (MHz)	2250
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 600 GB 12G SAS 15K rpm
File System	NTFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Standard
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.615)
Available	Jul-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 13
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 13
Available	Sep-2019
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL325 Gen10 Plus
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2019
Model	ProLiant DL325 Gen10 Plus
Form Factor	1U Rack
CPU Name	AMD EPYC 7742
CPU Characteristics	64 Core, 2.25 GHz, 256 MB L3 Cache(Turbo Boost Technology up to 3.4 GHz))
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	A43 10/07/2019
CPU Frequency (MHz)	2250
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 800 GB SSD SAS
File System	NTFS
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32 GB
Memory Details	32 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2019 Standard
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.615)
Available	Jul-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 13
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 13
Available	Sep-2019
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Two Memory Domains Per Socket Maximum Memory Bus Frequency=2933
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	Lock Pages in Memory is Enabled Power Options is set to Ultimate Performance Processor Performance Boost Mode is Enabled Processor Scheduling is set to Programs Visual Effects is set to Best Performance HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and added two new entries: MaxUserPort:- Value Type: DWORD Value data: 655350 TcpNumConnections:- Value Type: DWORD Value data: 655350
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms118g -Xmx118g -Xmn116g -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:ThreadStackSize=1m -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+BindGCTaskThreadsToCPUs
Tuning	None
Notes	Affinitized each Backend JVM to a NUMA node. start /b /NODE 0 start /b /NODE 0 start /b /NODE 1 start /b /NODE 1

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	Lock Pages in Memory is Enabled Power Options is set to Ultimate Performance Processor Performance Boost Mode is Enabled Processor Scheduling is set to Programs Visual Effects is set to Best Performance HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and added two new entries: MaxUserPort:- Value Type: DWORD Value data: 655350 TcpNumConnections:- Value Type: DWORD Value data: 655350
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	144738	146383	148027	149672	151317

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	40460	89265	114310	117599	122533	90134

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1645	- / 1645	- / 1645	- / 1645	- / 1645	- / 1645
1000us	1645 / 3289	- / 1645	- / 1645	- / 1645	- / 1645	- / 1645
5000us	134869 / 136514	88816 / 42763	18092 / 19737	16447 / 18092	11513 / 13158	- / 1645
10000us	138159 / 139804	129935 / 103619	100330 / 52632	87172 / 42763	49342 / 34540	1645 / 3289
25000us	139804 / 141448	134869 / 136514	129935 / 131580	123356 / 125001	93751 / 77303	21382 / 8224
50000us	139804 / 141448	136514 / 138159	133225 / 134869	128290 / 129935	115132 / 113488	23026 / 8224
75000us	139804 / 141448	136514 / 138159	133225 / 134869	131580 / 133225	116777 / 118422	23026 / 8224
100000us	139804 / 141448	138159 / 139804	133225 / 134869	133225 / 134869	121711 / 123356	23026 / 8224
200000us	143093 / 144738	138159 / 139804	134869 / 136514	133225 / 134869	133225 / 134869	101974 / 16447
500000us	146383 / -	143093 / 144738	139804 / 141448	138159 / 139804	138159 / 139804	133225 / 129935
1000000us	146383 / -	146383 / -	146383 / -	146383 / -	143093 / 144738	139804 / 141448

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

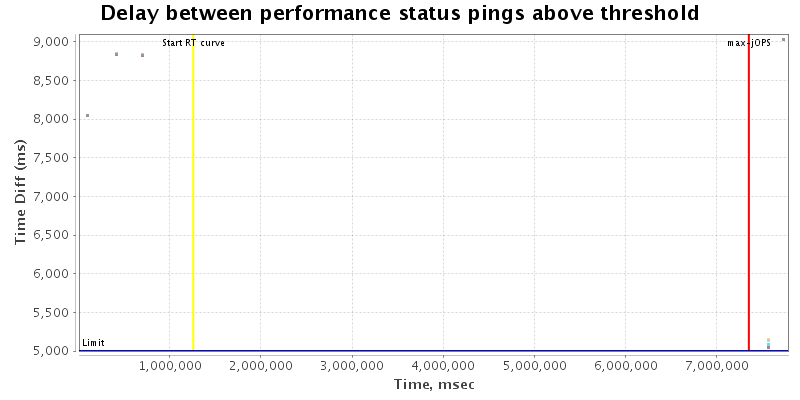

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	32
specjbb.comm.connect.worker.pool.min	1	32
specjbb.controller.host	localhost	10.10.0.98
specjbb.customerDriver.threads	64	{probe=64, saturate=64, service=64}
specjbb.forkjoin.workers	32	{Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count	1	4
specjbb.heartbeat.period	10000	100000
specjbb.heartbeat.threshold	100000	800000
specjbb.mapreducer.pool.size	32	196
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 164475 IR

High-bound (settled) is 154941 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus	146383 SPECjbb2015-Distributed max-jOPS 90134 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: October 21, 2019
SPEC license #: 3	Hardware Availability: Nov-2019	Software Availability: Sep-2019	Publication: Mon Nov 18 12:31:05 EST 2019
