SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Inspur Corporation Inspur NF5280M5 167280 SPECjbb2015-Composite max-jOPS
92924 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Sep 5, 2019
SPEC license #: 3358 Hardware Availability: Jul-2019 Software Availability: Jul-2019 Publication: Thu Sep 26 14:07:01 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameInspur NF5280M5
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableJul-2019
ModelInspur NF5280M5
Form Factor2U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.7 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
Version4.1.9
CPU Frequency (MHz)2700
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache1MB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 480GB SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details24 x 32GB 2Rx8 PC4-2933Y-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.6
VendorRed Hat
Vendor URLhttp://redhat.com/
Version3.10.0-957
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 12.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 12.0.2
AvailableJul-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • ulimit -n 65536
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms730g -Xmx730g -Xmn700g -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseParallelGC -XX:+UseNUMA -XX:-UsePerfData -XX:AllocatePrefetchInstr=2 -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 165163 167280 169398 171515 173633
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 60348 94227 98462 109579 112931 92924
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2117 - / 2117 - / 2117 - / 2117 - / 2117 - / 2117
1000us 143988 / 146105 - / 2117 - / 2117 - / 2117 - / 2117 - / 2117
5000us 156693 / 158810 137636 / 139753 50819 / 44467 38114 / 40232 27527 / 29645 - / 2117
10000us 160928 / 163045 143988 / 146105 93169 / 91051 78346 / 80464 59289 / 61407 2117 / 4235
25000us 160928 / 163045 152458 / 154575 135518 / 137636 129166 / 124931 95286 / 93169 35997 / 6352
50000us 163045 / 165163 154575 / 156693 143988 / 139753 135518 / 133401 99521 / 97404 46584 / 6352
75000us 163045 / 165163 156693 / 158810 143988 / 146105 137636 / 139753 114343 / 107991 65642 / 6352
100000us 165163 / 167280 160928 / 158810 146105 / 148223 143988 / 139753 114343 / 110108 91051 / 6352
200000us 165163 / 167280 160928 / 163045 148223 / 150340 146105 / 148223 135518 / 120696 105873 / 84699
500000us 167280 / - 165163 / 167280 160928 / 163045 160928 / 158810 152458 / 150340 135518 / 120696
1000000us 167280 / - 167280 / - 167280 / - 167280 / - 165163 / 167280 156693 / 150340
Number of probes
Probes jOPS / Total jOPS

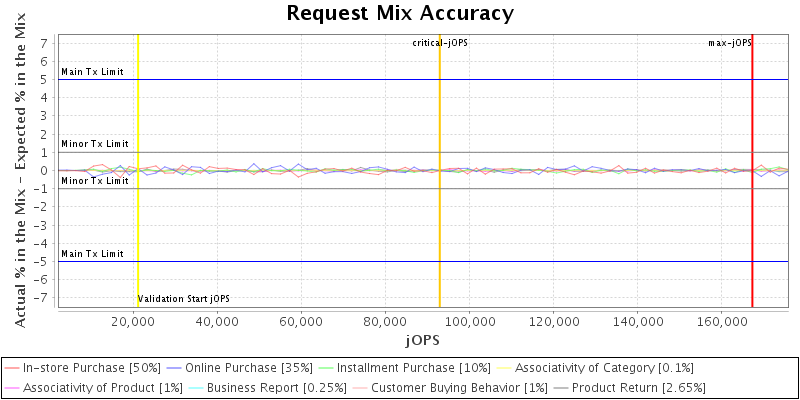

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

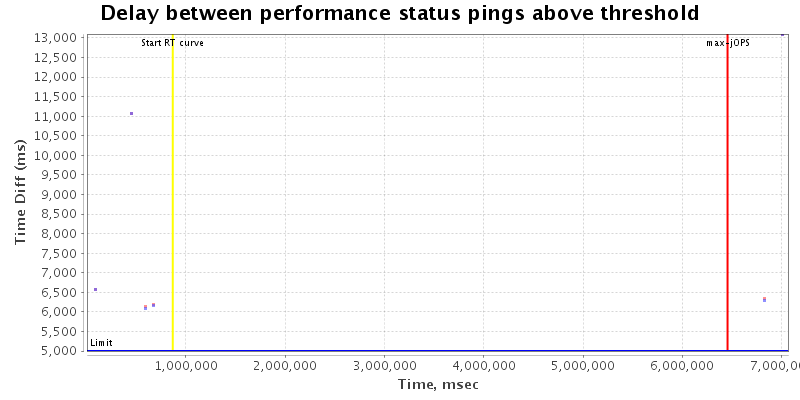

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 211747 IR
High-bound (settled) is 176593 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
