SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR655 127957 SPECjbb2015-Composite max-jOPS
99723 SPECjbb2015-Composite critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: July 14, 2019
SPEC license #: 9017 Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Wed Aug 7 19:56:20 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

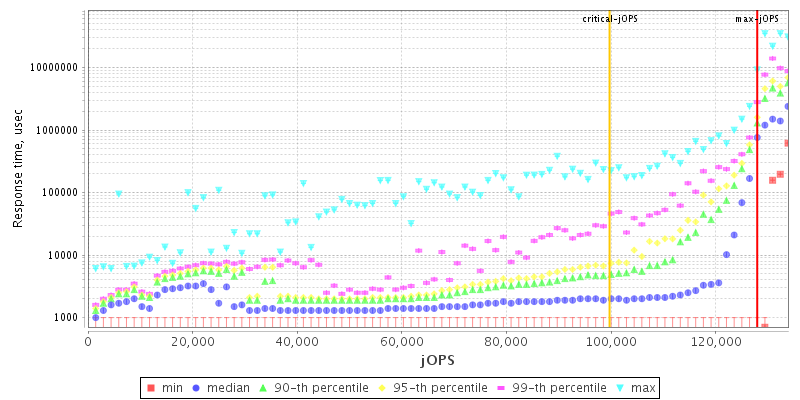

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR655
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2019
ModelThinkSystem SR655
Form Factor2U
CPU NameAMD EPYC 7742
CPU Characteristics64 core, 2.25GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionCFE103A
CPU Frequency (MHz)2250
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk960GB 6Gbps SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x ThinkSystem 10/25GbE SFP28 2-port OCP
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.593)
AvailableJun-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 12.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 12.0.1
AvailableApr-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Numa Node Per Socket set to NPS1
  • SMT Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Enable PerfAutonomousMode for Performance State Engine
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Visual Effects Adjust for best performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms800g -Xmx800g -Xmn750g -XX:SurvivorRatio=50 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=112 -verbose:gc -Xlog:gc*
Tuning affinitize Composite JVM to a single memory node
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 126486 127957 129428 130899 132369
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 72852 96335 109572 112514 113984 99723
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1471 - / 1471 - / 1471 - / 1471 - / 1471 - / 1471
1000us 120603 / 13237 1471 / 2942 - / 1471 - / 1471 - / 1471 - / 1471
5000us 125015 / 126486 120603 / 122074 100012 / 20591 86775 / 17649 69126 / 14708 - / 1471
10000us 125015 / 126486 120603 / 122074 111779 / 113249 105895 / 104425 83834 / 63243 16178 / 5883
25000us 126486 / 127957 123545 / 125015 116191 / 117662 113249 / 114720 102954 / 89717 42652 / 5883
50000us 126486 / 127957 123545 / 125015 119132 / 120603 116191 / 117662 108837 / 110308 61772 / 5883
75000us 126486 / 127957 125015 / 126486 122074 / 123545 119132 / 117662 113249 / 111779 61772 / 5883
100000us 126486 / 127957 125015 / 126486 122074 / 123545 119132 / 120603 113249 / 114720 82363 / 25003
200000us 126486 / 127957 126486 / 127957 123545 / 125015 123545 / 125015 119132 / 117662 105895 / 77951
500000us 127957 / - 126486 / 127957 126486 / 127957 125015 / 126486 125015 / 126486 117662 / 116191
1000000us 127957 / - 127957 / - 126486 / 127957 126486 / 127957 126486 / 127957 123545 / 125015
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

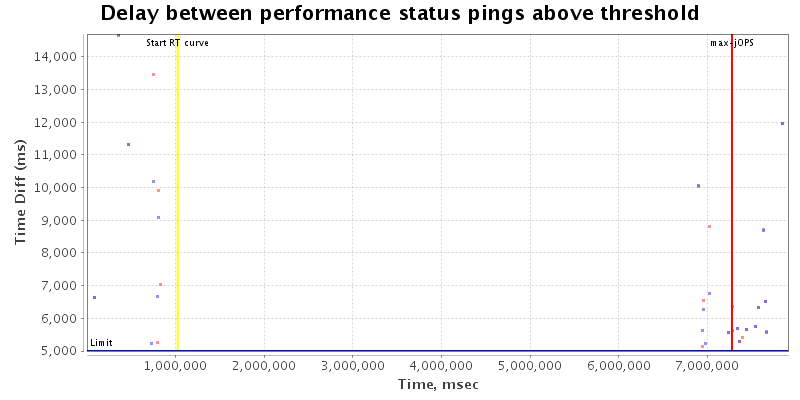

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 64 {Tier1=180, Tier2=100, Tier3=28}
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 147077 IR
High-bound (settled) is 136318 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
