Lenovo Global Technology ThinkSystem SR655 148237 SPECjbb2015-Composite max-jOPS
135431 SPECjbb2015-Composite critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jul 16, 2019
SPEC license #: 9017 Hardware Availability: Aug-2019 Software Availability: May-2019 Publication: Wed Aug 7 19:56:20 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR655
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2019
ModelThinkSystem SR655
Form Factor2U
CPU NameAMD EPYC 7742
CPU Characteristics64 core, 2.25GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionCFE103A
CPU Frequency (MHz)2250
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)1 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRedHat Linux Enterprise Server 8
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version4.18.0-80.el8.x86_64
AvailableMay-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 12.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 12.0.1
AvailableApr-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode = Maximum Performance
  • NUMA node per socket = NPS1
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Disable SELinux
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms800g -Xmx800g -Xmn750g -XX:SurvivorRatio=80 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-BiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=128 -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 146473 148237 150002 151767 153532
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 112060 135001 143825 143825 145590 135431
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 54707 / 14118 1765 / 3529 - / 1765 - / 1765 - / 1765 - / 1765
1000us 141178 / 97060 65295 / 14118 5294 / 7059 5294 / 7059 3529 / 5294 - / 1765
5000us 146473 / 148237 142943 / 144708 116472 / 90001 116472 / 79413 105884 / 63530 21177 / 1765
10000us 148237 / - 144708 / 146473 134119 / 135884 123531 / 125296 116472 / 107649 45883 / 8824
25000us 148237 / - 148237 / - 142943 / 144708 142943 / 144708 134119 / 135884 70589 / 8824
50000us 148237 / - 148237 / - 146473 / 148237 144708 / 146473 142943 / 144708 102354 / 8824
75000us 148237 / - 148237 / - 148237 / - 146473 / 148237 142943 / 144708 105884 / 8824
100000us 148237 / - 148237 / - 148237 / - 146473 / 148237 144708 / 146473 116472 / 67060
200000us 148237 / - 148237 / - 148237 / - 148237 / - 146473 / 148237 134119 / 118237
500000us 148237 / - 148237 / - 148237 / - 148237 / - 148237 / - 142943 / 144708
1000000us 148237 / - 148237 / - 148237 / - 148237 / - 148237 / - 144708 / 146473

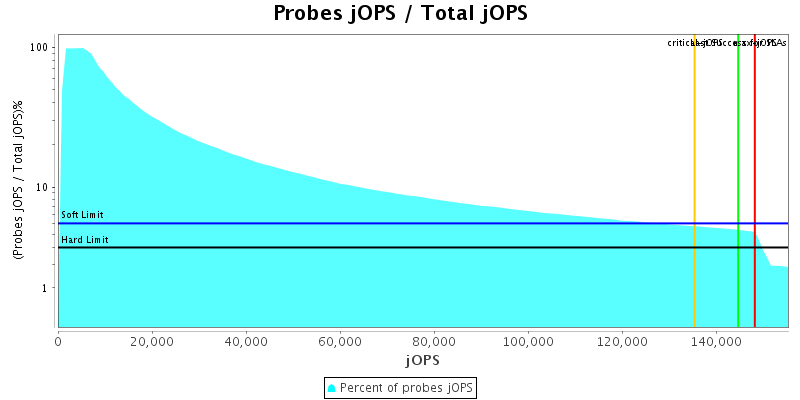

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

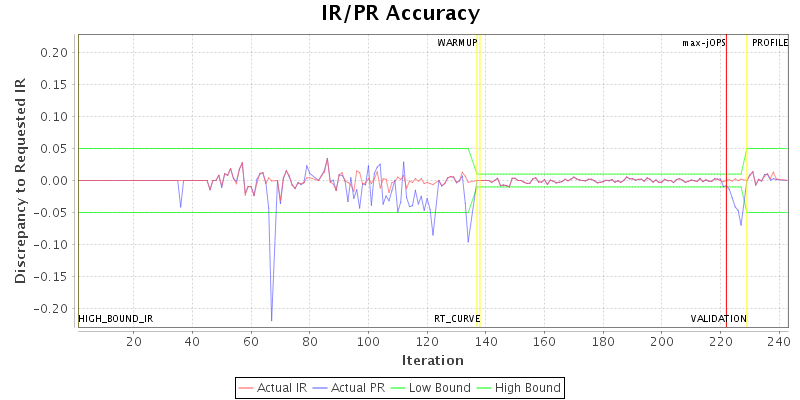

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.worker.pool.min 1 80
specjbb.forkjoin.workers 128 {Tier1=180, Tier2=1, Tier3=25}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 160814 IR
