SPECjbb2015 Report for jbb2015-20190717-00465 : 171631 max-jOPS ; 27651 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL325 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Aug-2019
Model	ProLiant DL325 Gen10
Form Factor	1U Rack
CPU Name	AMD EPYC 7702P
CPU Characteristics	64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	A41 07/04/2019
CPU Frequency (MHz)	2000
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB L3 cache per chip
Other Cache	None
Disk	1 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2933Y-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 12.0.1
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 12.0.1
Available	Apr-2019
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL: http://bugs.openjdk.java.net/secure/Dashboard.jspa
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL385 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Aug-2019
Model	ProLiant DL385 Gen10
Form Factor	2U Rack
CPU Name	AMD EPYC 7702
CPU Characteristics	64 Core, 2.00 GHz, 16 MB L3 cache per 4 core (Turbo Boost Technology up to 3.35 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	A40 07/04/2019
CPU Frequency (MHz)	2000
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB L3 cache per chip
Other Cache	None
Disk	1 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	OpenJDK 12.0.1
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 12.0.1
Available	Apr-2019
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL: http://bugs.openjdk.java.net/secure/Dashboard.jspa
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled NUMA memory domains per socket=Four memory domains per socket Last-Level Cache(LLC) As NUMA Node= Enabled Maximum memory Bus Frequency=2933
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance ulimit -n 655350 echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to two NUMA nodes. numactl --cpunodebind=0,1 --localalloc numactl --cpunodebind=2,3 --localalloc numactl --cpunodebind=4,5 --localalloc numactl --cpunodebind=6,7 --localalloc numactl --cpunodebind=8,9 --localalloc numactl --cpunodebind=10,11 --localalloc numactl --cpunodebind=12,13 --localalloc numactl --cpunodebind=14,15 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled NUMA memory domains per socket=Four memory domains per socket Processor Power and Utilization Monitoring = Disabled Memory Pre-Failure Notification = Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_2
Tuning	tuned-adm profile=throughput-performance ulimit -n 655350 echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16 > /proc/sys/kernel/sched_nr_migrate echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	None
Notes	numactl --interleave=all
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2
Tuning	None
Notes	None

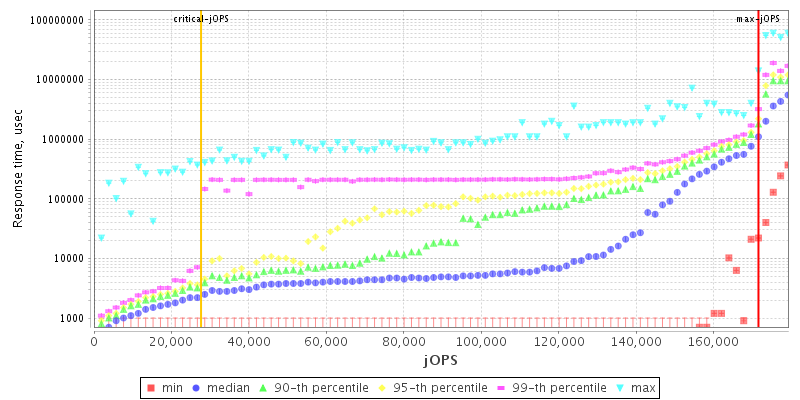

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	169724	171631	173538	175445	177352

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	27651	27651	27651	27651	27651	27651

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	1907 / 3814	- / 1907	- / 1907	- / 1907	- / 1907	- / 1907
1000us	26698 / 24791	7628 / 9535	3814 / 5721	1907 / 3814	- / 1907	- / 1907
5000us	141119 / 143026	93443 / 95350	40047 / 30512	28605 / 30512	22884 / 24791	- / 1907
10000us	144933 / 146840	125863 / 127770	70559 / 72466	53396 / 43861	26698 / 28605	- / 1907
25000us	148747 / 150654	139212 / 141119	93443 / 95350	59117 / 61024	26698 / 28605	1907 / 3814
50000us	150654 / 152561	141119 / 143026	101072 / 102979	70559 / 72466	26698 / 28605	15256 / 3814
75000us	152561 / 154468	144933 / 146840	120142 / 122049	91536 / 85815	26698 / 28605	15256 / 3814
100000us	154468 / 156375	148747 / 150654	125863 / 123956	99165 / 95350	26698 / 28605	15256 / 3814
200000us	162096 / 164003	152561 / 154468	141119 / 143026	135398 / 137305	66745 / 30512	15256 / 11442
500000us	169724 / 171631	164003 / 165910	156375 / 158282	154468 / 156375	150654 / 152561	49582 / 32419
1000000us	171631 / -	169724 / 171631	167817 / 169724	167817 / 169724	164003 / 165910	104886 / 106793

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

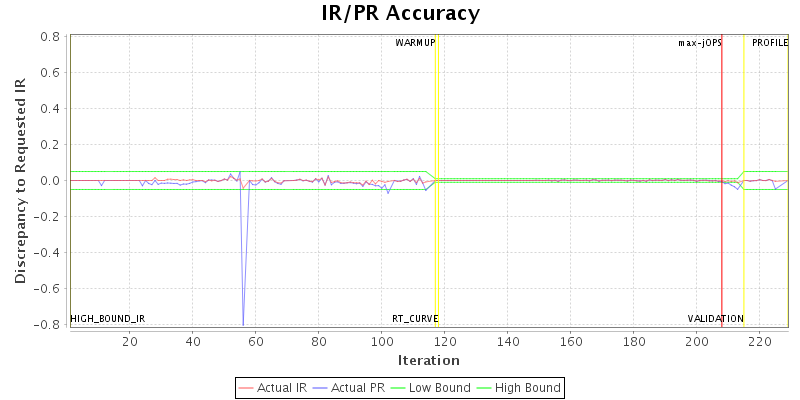

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.TxInjector.txiJVM1	Group2.TxInjector.txiJVM1	Group3.TxInjector.txiJVM1	Group4.TxInjector.txiJVM1	Group5.TxInjector.txiJVM1	Group6.TxInjector.txiJVM1	Group7.TxInjector.txiJVM1	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	128	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	4	1	1	1	1	1	1	1	1
specjbb.comm.connect.timeouts.connect	60000	800000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.timeouts.read	60000	800000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.timeouts.write	60000	800000	700000	700000	700000	700000	700000	700000	700000	700000
specjbb.comm.connect.worker.pool.max	256	128	111	111	111	111	111	111	111	111
specjbb.comm.connect.worker.pool.min	1	32	64	64	64	64	64	64	64	64
specjbb.controller.host	localhost	10.10.0.98
specjbb.customerDriver.threads	64	{=64, probe=64, saturate=64}
specjbb.forkjoin.workers	255	{Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	255	32
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 190701 IR

High-bound (settled) is 180350 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Hewlett Packard Enterprise ProLiant DL325 Gen10	171631 SPECjbb2015-Distributed max-jOPS 27651 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: July 14, 2019
SPEC license #: 3	Hardware Availability: Aug-2019	Software Availability: Jun-2019	Publication: Wed Aug 7 19:56:20 EDT 2019
