SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
UNIWIDE Technologies Inc. RC228P 52067 SPECjbb2015-Composite max-jOPS
27117 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Jul 1, 2019
SPEC license #: A83 Hardware Availability: Jul-2019 Software Availability: Apr-2019 Publication: Mon Jul 22 14:28:43 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorUNIWIDE Technologies Inc.
Vendor URLhttp://www.uniwide.co.kr
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)576
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameRC228P
VendorUNIWIDE Technologies Inc.
Vendor URLhttp://www.uniwide.co.kr
AvailableJul-2018
ModelRC228P
Form Factor2U
CPU NameIntel Xeon Gold 6144
CPU Characteristics8Core, 3.50GHz, 24.75MB L3 Cache (Turbo Boost Technology up to 4.20 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionInspur 4.0.6 08/21/2018
CPU Frequency (MHz)3500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache25344 KB (I+D) on chip per chip
Other CacheNone
Disk4 x 300 GB HDD SATA
File SystemXFS
Memory Amount (GB)576
# and size of DIMM(s)18 x 32 GB
Memory Details32 GB DDR4 2666MHz PC4-21300R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)800W Dual Redundant
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.12.1.el7.x86_64-default
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u212
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_212
AvailableApr-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • SELinux=enforcing
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms450g -Xmx450g -Xmn400g -server -XX:+UseParallelOldGC -XX:+UseLargePages -XX:MaxTenuringThreshold=8 -XX:+ScavengeBeforeFullGC -XX:+UseNUMA -XX:-UseAdaptiveSizePolicy
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 51475 52067 52659 53250 53842
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 20793 26196 28529 29808 31654 27117
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4733 / 5325 1183 / 1775 592 / 1183 - / 592 - / 592 - / 592
1000us 42009 / 42600 3550 / 4142 2367 / 2958 1775 / 2367 1183 / 1775 - / 592
5000us 49700 / 50292 42600 / 43192 34909 / 23075 15975 / 16567 11833 / 12425 2958 / 1775
10000us 49700 / 50292 44375 / 44967 36684 / 37275 30767 / 31359 21892 / 14200 10058 / 1775
25000us 50884 / 51475 47925 / 48517 41417 / 42009 39642 / 40234 30767 / 14200 13017 / 2367
50000us 50884 / 51475 49700 / 50292 44375 / 43192 42600 / 42009 32542 / 14200 13017 / 2367
75000us 51475 / 52067 49700 / 50292 46742 / 44967 42600 / 43192 34317 / 22483 15383 / 2367
100000us 51475 / 52067 49700 / 50292 46742 / 47334 44375 / 43192 34317 / 28992 15383 / 2367
200000us 52067 / - 50884 / 51475 47334 / 47925 46742 / 44967 42600 / 34909 25442 / 2367
500000us 52067 / - 52067 / - 50884 / 50292 49700 / 50292 47925 / 43192 36684 / 14200
1000000us 52067 / - 52067 / - 52067 / - 52067 / - 52067 / - 47334 / 42600

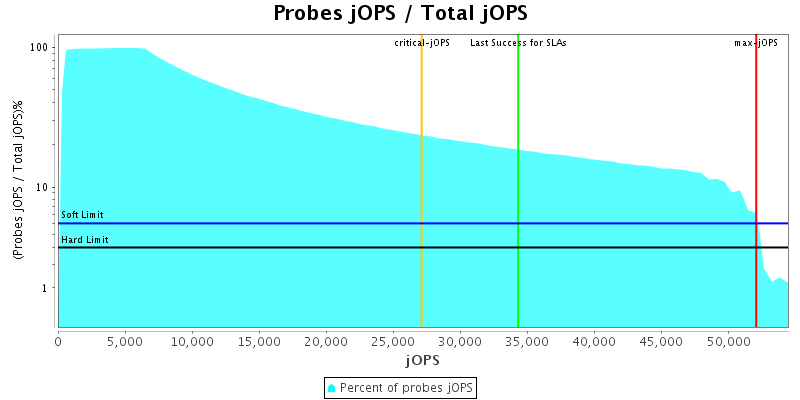

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 59167 IR
High-bound (settled) is 55947 IR
