Sugon I980-G30 686568 SPECjbb2015-MultiJVM max-jOPS
253214 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon Test Sponsor: Sugon Test location: Beijing,CHN Test date: Mar 21, 2019
SPEC license #: 9046 Hardware Availability: Nov-2018 Software Availability: Jan-2019 Publication: Thu Apr 11 14:27:21 EDT 2019
Benchmark Results Summary

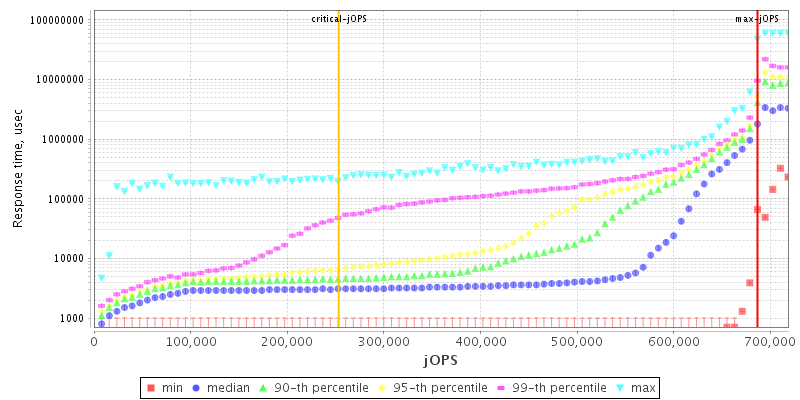

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSugon
Vendor URLhttp://www.sugon.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores224
Total Threads448
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameI980-G30
VendorSugon
Vendor URLhttp://www.sugon.com/
AvailableNov-2018
ModelI980-G30
Form Factor8U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28-core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System224
Cores Per Chip28
Threads Per System448
Threads Per Core2
Version0WDSL014 released Nov-2018
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache38.5 MB (I+D) on chip per chip
Other CacheNone
Disk4 x 1.0 TB SATA HDD, RAID5
File Systembtrfs
Memory Amount (GB)1536
# and size of DIMM(s)96 x 16GB
Memory Details2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)2x 1 Gbit on-board NICs
Power Supply Quantity and Rating (W)6 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes:The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15(x86_64)
VendorSUSE
Vendor URLhttp://www.suse.com
Version4.12.14-23-default
AvailableJuly-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u201
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM (build 25.201-b09,mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • SNC=Enable
  • IMC Interleaving:1-Way Interleave
  • Patrol Scrub=Disable
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • ulimit -n 65536
  • sched_rt_runtime_us=990000
  • sched_migration_cost_ns=1000
  • sched_latency_ns=16000000
  • sched_min_granularity_ns=6000000
  • sched_wakeup_granularity_ns=15000000
  • dirty_expire_centisecs=10000
  • dirty_writeback_centisecs=1500
  • dirty_ratio=40
  • dirty_background_ratio=10
  • swappiness=10
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xmn1536m -Xms2g -Xmx2g -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms30g -Xmx30g -Xmn28g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=28 -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseBiasedLocking -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=15 -XX:+AggressiveOpts
Tuning to affinitize each Backend JVM to a single memory numa node with numactl, e.g.:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xmn1536m -Xms2g -Xmx2g -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning to affinitize each TxInjector JVM to a single memory numa node with numactl, e.g.:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 678677 686568 694460 702351 710243
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 169669 209127 256476 311718 366959 253214
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 7892 - / 7892 - / 7892 - / 7892 - / 7892 - / 7892
1000us 31566 / 39458 7892 / 15783 - / 7892 - / 7892 - / 7892 - / 7892
5000us 607652 / 615544 544520 / 552411 323555 / 331447 173615 / 181507 86807 / 94699 7892 / 15783
10000us 615544 / 623436 568194 / 576086 434037 / 441929 347230 / 355122 165723 / 173615 7892 / 15783
25000us 623436 / 631327 599761 / 607652 512953 / 520845 441929 / 449821 205181 / 213073 15783 / 23675
50000us 631327 / 639219 607652 / 615544 536628 / 544520 465604 / 473495 252531 / 260422 15783 / 23675
75000us 631327 / 639219 615544 / 623436 544520 / 552411 497170 / 505062 307772 / 315664 15783 / 23675
100000us 647110 / 655002 615544 / 623436 560303 / 568194 512953 / 520845 363013 / 370905 15783 / 23675
200000us 655002 / 662894 631327 / 639219 599761 / 607652 576086 / 583978 528737 / 536628 252531 / 78916
500000us 670785 / 678677 655002 / 662894 639219 / 647110 631327 / 639219 623436 / 631327 568194 / 544520
1000000us 686568 / - 678677 / 686568 670785 / 678677 662894 / 670785 655002 / 662894 631327 / 639219
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

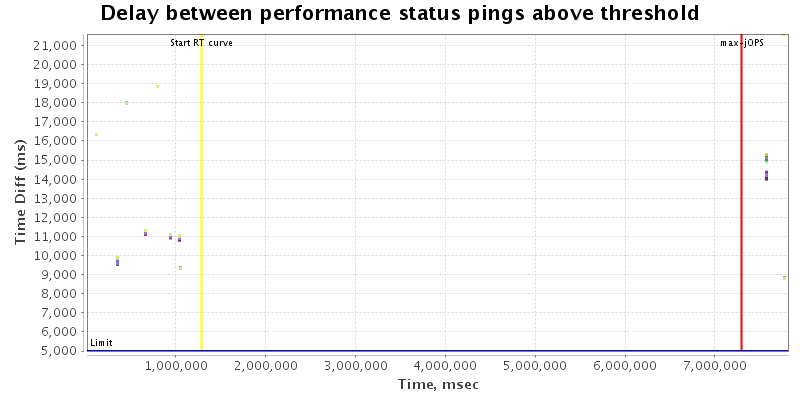

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.handshake.timeout 600000 800000
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 448 {Tier1=172, Tier2=44, Tier3=22}
specjbb.group.count 1 16
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 448 5
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 789159 IR
High-bound (settled) is 723220 IR
