SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS C240 M5 162355 SPECjbb2015-Composite max-jOPS
95906 SPECjbb2015-Composite critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: March 12,2019
SPEC license #: 9019 Hardware Availability: April-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

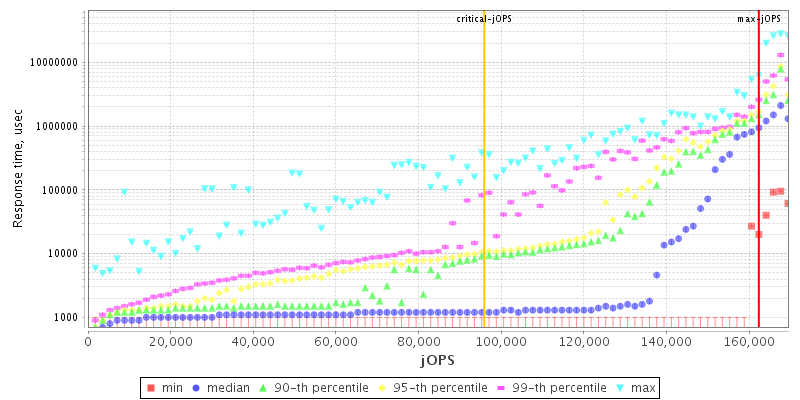

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS C240 M5
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableApril-2019
ModelCisco UCS C240 M5
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28Cores, 2.70 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
Version4.0.3.34 released Mar-2019
CPU Frequency (MHz)2700
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details768 GB(24 X 32GB 2Rx4 PC4-2933V)
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600 W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.12.14-23-default
AvailableJuly-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • LLc Prefetch Enabled
  • Hyperthreading Enabled
  • Power Technology set to performance
Notes none
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile set to throughput performance
  • ulimit -u 4078332
  • ulimit -n 1024000
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 2000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 30000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms530g -Xmx530g -Xmn500g -XX:+UseLargePages -XX:-UsePerfData -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:CompileThreshold=1000
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 160590 162355 164120 165885 167649
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 77059 92774 97942 103138 112354 95906
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 12353 / 14118 1765 / 3529 - / 1765 - / 1765 - / 1765 - / 1765
1000us 144708 / 146473 30000 / 31765 3529 / 5294 3529 / 5294 1765 / 3529 - / 1765
5000us 150002 / 151767 137649 / 139414 84707 / 74119 58236 / 60001 42354 / 44118 3529 / 1765
10000us 150002 / 151767 137649 / 139414 102354 / 104119 93531 / 95295 79413 / 75883 17647 / 8824
25000us 155296 / 157061 144708 / 146473 128825 / 130590 123531 / 125296 98825 / 88236 56471 / 8824
50000us 157061 / 158826 146473 / 148237 134119 / 135884 127061 / 125296 104119 / 91766 58236 / 8824
75000us 157061 / 158826 150002 / 151767 135884 / 137649 127061 / 128825 109413 / 95295 68824 / 8824
100000us 157061 / 158826 150002 / 151767 135884 / 137649 132355 / 134119 114707 / 111178 72354 / 28236
200000us 157061 / 158826 150002 / 151767 141178 / 142943 135884 / 137649 123531 / 118237 100590 / 74119
500000us 160590 / 162355 155296 / 157061 150002 / 151767 148237 / 144708 137649 / 134119 123531 / 120002
1000000us 162355 / - 162355 / - 155296 / 157061 155296 / 157061 155296 / 157061 148237 / 134119
Number of probes
Probes jOPS / Total jOPS

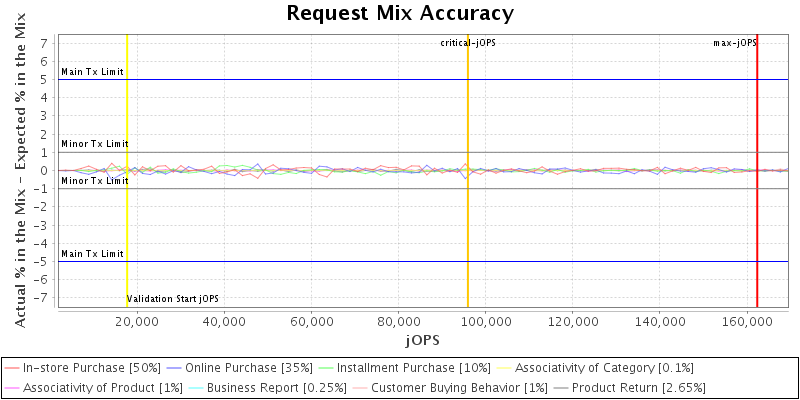

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 88
specjbb.comm.connect.worker.pool.min 1 44
specjbb.forkjoin.workers 112 {Tier1=160, Tier2=40, Tier3=28}
specjbb.mapreducer.pool.size 112 28
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 176473 IR
High-bound (settled) is 170815 IR
