Fujitsu PRIMERGY RX2540 M5 98065 SPECjbb2015-Composite max-jOPS
71031 SPECjbb2015-Composite critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Mar 13, 2019
SPEC license #: 19 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Fri Apr 12 17:17:37 EDT 2019
Benchmark Results Summary

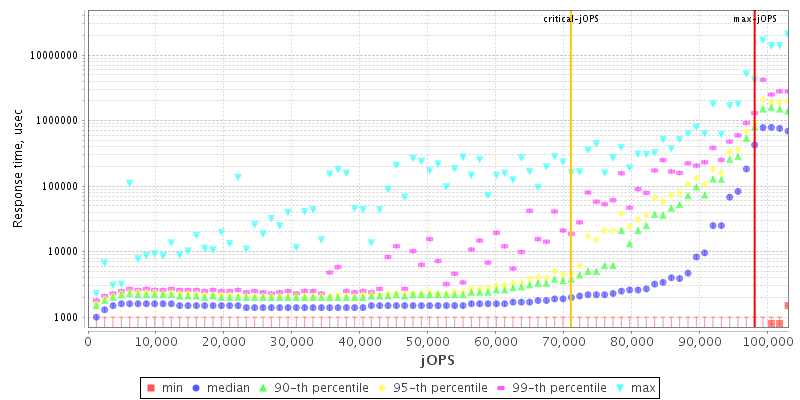

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFujitsu Server PRIMERGY RX2540 M5
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableApr-2019
ModelFujitsu Server PRIMERGY RX2540 M5
Form Factor2U
CPU NameIntel Xeon Platinum 8280M
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionR1.2.0 28.02.2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5MB I+D on chip per chip
Other CacheNone
Disk1x 1.6TB SAS SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details32GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Supported by Fujitsu
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2016 Standard
VendorMicrosoft
Vendor URLhttp://www.microsoft.com/
VersionVersion 1607 (OS Build 14393.2580)
AvailableOct-2018
Bitness64
NotesSupported by Microsoft
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesSupported by Oracle
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Hyper-Threading set to Disabled
  • Hardware Prefetcher set to Disabled
  • Adjacent Cache Line Prefetch set to Disabled
  • DCU Streamer Prefetcher set to Disabled
  • Intel Virtualization Technology set to Disabled
  • VT-d set to Disabled
  • Override OS Energy Performance set to Enabled
  • Energy Performance set to Performance
  • Link Frequency Select set to 10.4GT/s
  • Patrol Scrub set to Disable
  • SNC set to Disabled
  • Write CRC set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms670g -Xmx670g -Xmn625g -XX:SurvivorRatio=100 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+UseNUMA -XX:-UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=56 -verbose:gc -XX:+AggressiveHeap
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 96839 98065 99291 100516 101742
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 55697 69054 74570 77635 81209 71031
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1226 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
1000us 82129 / 83355 1226 / 2452 - / 1226 - / 1226 - / 1226 - / 1226
5000us 95613 / 96839 88258 / 89484 74774 / 76000 71097 / 72323 55161 / 36774 4903 / 2452
10000us 95613 / 96839 90710 / 91936 77226 / 78452 72323 / 73549 63742 / 45355 13484 / 6129
25000us 95613 / 96839 93162 / 94387 82129 / 83355 79678 / 78452 71097 / 64968 41678 / 6129
50000us 96839 / 98065 93162 / 94387 85807 / 87033 82129 / 83355 79678 / 73549 42903 / 6129
75000us 96839 / 98065 94387 / 95613 90710 / 89484 85807 / 87033 79678 / 73549 58839 / 6129
100000us 96839 / 98065 95613 / 96839 90710 / 91936 87033 / 88258 82129 / 78452 66194 / 6129
200000us 98065 / - 96839 / 98065 93162 / 94387 93162 / 94387 87033 / 84581 79678 / 45355
500000us 98065 / - 98065 / - 95613 / 96839 95613 / 96839 94387 / 95613 85807 / 84581
1000000us 98065 / - 98065 / - 98065 / - 98065 / - 96839 / 98065 93162 / 91936
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

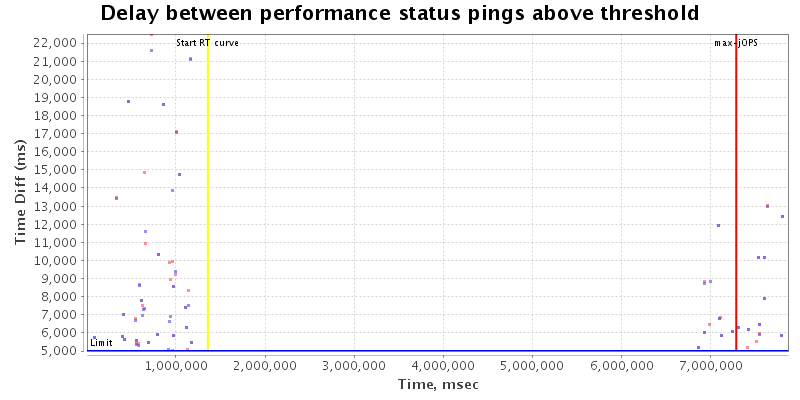

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {saturate=96}
specjbb.forkjoin.workers 56 {Tier1=180, Tier2=28, Tier3=20}
specjbb.heartbeat.threshold 100000 100000
specjbb.mapreducer.pool.size 56 4
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 122581 IR
High-bound (settled) is 102646 IR
