Lenovo Global Technology ThinkSystem SR950 251332 SPECjbb2015-MultiJVM max-jOPS
200372 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Mar 13, 19
SPEC license #: 9017 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips3
Total Cores84
Total Threads168
Total Memory Amount (GB)2304
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR950
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableApr-2019
ModelThinkSystem SR950
Form Factor4U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System3
Cores Per System84
Cores Per Chip28
Threads Per System168
Threads Per Core2
VersionPSE121I
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)2304
# and size of DIMM(s)36 x 64GB
Memory Details64GB 2Rx4 PC4-2933V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.el7.x86_64
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(3), jvm_TxInjector_1(3)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 3000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+UseCondCardMark -XX:ParallelGCThreads=1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms500g -Xmx500g -Xmn440g -XX:SurvivorRatio=42 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=56 -XX:InlineSmallCode=10k
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+UseCondCardMark -XX:ParallelGCThreads=4
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 248267 251332 254397 257463 260528
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 142523 215318 219149 219149 219149 200372
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3065 - / 3065 - / 3065 - / 3065 - / 3065 - / 3065
1000us 88886 / 91951 6130 / 9195 3065 / 6130 3065 / 6130 - / 3065 - / 3065
5000us 239072 / 242137 229877 / 232942 107276 / 104211 79691 / 82756 49040 / 52106 6130 / 9195
10000us 242137 / 245202 236007 / 232942 217617 / 220682 196162 / 199227 140991 / 144056 6130 / 9195
25000us 242137 / 245202 236007 / 239072 229877 / 232942 223747 / 226812 217617 / 208422 15325 / 18390
50000us 242137 / 245202 236007 / 239072 229877 / 232942 229877 / 226812 217617 / 220682 107276 / 18390
75000us 242137 / 245202 236007 / 239072 229877 / 232942 229877 / 232942 217617 / 220682 107276 / 18390
100000us 245202 / 248267 236007 / 239072 229877 / 232942 229877 / 232942 217617 / 220682 107276 / 58236
200000us 245202 / 248267 239072 / 242137 229877 / 232942 229877 / 232942 229877 / 226812 211487 / 202292
500000us 245202 / 248267 242137 / 245202 236007 / 239072 236007 / 239072 229877 / 232942 217617 / 220682
1000000us 251332 / - 245202 / 248267 245202 / 248267 239072 / 242137 239072 / 242137 229877 / 232942
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

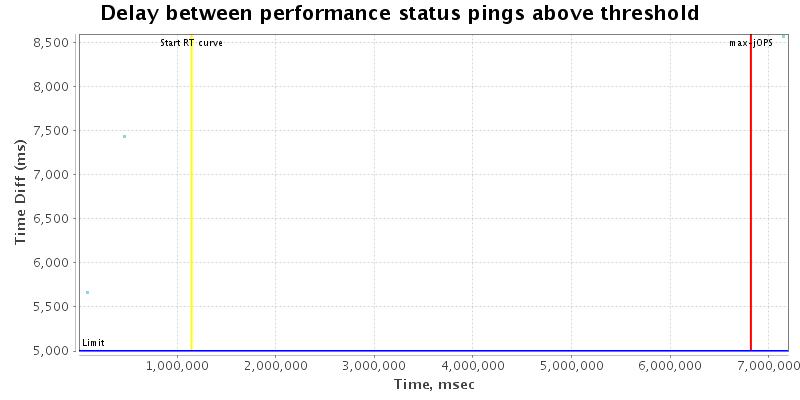

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 56 {Tier1=200, Tier2=1, Tier3=23}
specjbb.group.count 1 3
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 306503 IR
High-bound (settled) is 265053 IR
