SPECjbb2015 Report for jbb2015-20190314-00408 : 93649 max-jOPS ; 32896 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR650
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Apr-2019
Model	ThinkSystem SR650
Form Factor	2U
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	28
Cores Per Chip	28
Threads Per System	56
Threads Per Core	2
Version	IVE135S
CPU Frequency (MHz)	2700
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1x 960GB SATA SSD
File System	xfs
Memory Amount (GB)	192
# and size of DIMM(s)	12 x 16GB
Memory Details	16GB 2Rx8 PC4-2933V-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 (x86_64)
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	4.12.14-23-default
Available	Jul-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR650
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Apr-2019
Model	ThinkSystem SR650
Form Factor	2U
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28 core, 2.70GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	PSE113P
CPU Frequency (MHz)	2700
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1x 800GB SATA SSD
File System	xfs
Memory Amount (GB)	384
# and size of DIMM(s)	24 x 16GB
Memory Details	16GB 2Rx8 PC4-2933V-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 (x86_64)
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	4.12.14-23-default
Available	Jul-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance Per Core P-state set to Disable SNC set to Disable Patrol Scrub set to Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(1)
OS Image Description	os_1
Tuning	echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:-UseBiasedLocking -XX:AllocatePrefetchInstr=2 -XX:UseAVX=1
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Enable Patrol Scrub set to Disable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(1)
OS Image Description	os_2
Tuning	None
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14
Tuning	numactl used to affinitize Ctr JVM to a single memory node, eg: numactl --cpunodebind=0 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-server -Xms3g -Xmx3g -Xmn2g -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

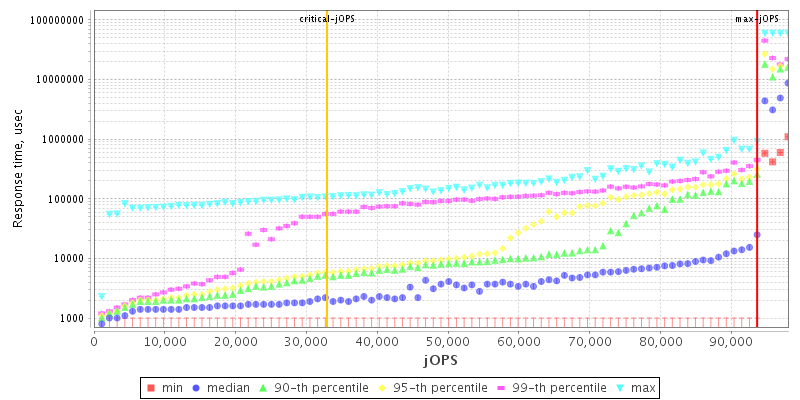

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	92560	93649	94738	95827	96916

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	21234	23412	32123	43013	56080	32896

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1089	- / 1089	- / 1089	- / 1089	- / 1089	- / 1089
1000us	29401 / 28312	3267 / 4356	1089 / 2178	- / 1089	- / 1089	- / 1089
5000us	93649 / -	68603 / 66425	33757 / 32668	29401 / 30490	18512 / 19601	1089 / 2178
10000us	93649 / -	87115 / 88204	59892 / 60981	51180 / 52269	20690 / 21779	1089 / 2178
25000us	93649 / -	93649 / -	71870 / 72959	58803 / 59892	25046 / 21779	1089 / 2178
50000us	93649 / -	93649 / -	75137 / 76226	65336 / 64247	31579 / 32668	1089 / 2178
75000us	93649 / -	93649 / -	80582 / 79493	68603 / 69692	42469 / 43558	10889 / 4356
100000us	93649 / -	93649 / -	82759 / 83848	74048 / 72959	56625 / 55536	28312 / 29401
200000us	93649 / -	93649 / -	92560 / 93649	88204 / 89293	82759 / 83848	65336 / 64247
500000us	93649 / -	93649 / -	93649 / -	93649 / -	93649 / -	88204 / 86026
1000000us	93649 / -	93649 / -	93649 / -	93649 / -	93649 / -	93649 / -

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM1
specjbb.comm.connect.client.pool.size	256	256	300
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000	700000
specjbb.comm.connect.timeouts.read	60000	600000	700000
specjbb.comm.connect.timeouts.write	60000	600000	700000
specjbb.comm.connect.worker.pool.max	256	64	120
specjbb.comm.connect.worker.pool.min	1	64	1
specjbb.controller.host	localhost	10.10.10.1
specjbb.controller.maxir.maxFailedPoints	3	3
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.customerDriver.threads	64	64	{}
specjbb.forkjoin.workers	22	{Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count	1	1
specjbb.heartbeat.threshold	100000	100000
specjbb.mapreducer.pool.size	22	112
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 108894 IR

High-bound (settled) is 104937 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Lenovo Global Technology ThinkSystem SR650	93649 SPECjbb2015-Distributed max-jOPS 32896 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Mar 14, 2019
SPEC license #: 9017	Hardware Availability: Apr-2019	Software Availability: Jan-2019	Publication: Tue Apr 2 15:05:14 EDT 2019
