SPECjbb2015 Report for jbb2015-20190314-00404 : 171642 max-jOPS ; 56027 critical-jOPS

SUT Description

Hardware hw_1
Name	Cisco UCS C240 M5
Vendor	Cisco Systems
Vendor URL	http://www.cisco.com/
Available	April-2019
Model	Cisco UCS C240 M5
Form Factor	2U Rack
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28Cores, 2.70 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	Version 4.0.3.34
CPU Frequency (MHz)	2700
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	1024 KB (I+D) per core
Tertiary Cache	38.5MB (I+D) on chip per chip
Other Cache	None
Disk	1x 400GB SSD SAS
File System	NTFS
Memory Amount (GB)	768
# and size of DIMM(s)	24 x 32GB
Memory Details	768 GB(24 X 32GB 2Rx4 PC4-2933V)
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	http://www.microsoft.com/
Version	Version 10.0.17763 Build 17763
Available	October 2018
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS tuning Memory Patrol Scrub disabled CPU Performance set to Enterprise Hyperthreading Enabled IMC Interleave to one-way SNC Enabled Memory RAS configuration set to Maximum performance Power Technology set to performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	Power Options is set to High performance Processor scheduling is set to Programs Lock Pages in Memory is Enabled HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and add a new entry . Value Name: MaxUserPort Value Type: DWORD Value data: 65534
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15 -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=10k -XX:+UseRTMLocking -XX:+UseRTMDeopt -XX:-UsePerfData
Tuning	Affinitized each Backend JVM to a NUMA node start /NODE [0-3]
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-showversion -Xmn3584m -Xms4g -Xmx4g -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
Tuning	Affinitized each Tx Injector JVM to a NUMA node start /NODE [0-3]
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	169669	171642	173615	175588	177561

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	32552	44390	60173	73983	85821	56027

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973
1000us	5919 / 7892	3946 / 5919	1973 / 3946	1973 / 3946	- / 1973	- / 1973
5000us	126266 / 96672	45377 / 47350	21702 / 23675	19729 / 21702	15783 / 17756	- / 1973
10000us	140076 / 138103	116401 / 88780	63133 / 55241	47350 / 49322	31566 / 33539	- / 1973
25000us	144022 / 145995	134157 / 136130	108509 / 110482	92726 / 90753	43404 / 45377	3946 / 5919
50000us	145995 / 147967	140076 / 142049	122320 / 124293	112455 / 114428	59187 / 61160	3946 / 5919
75000us	147967 / 149940	142049 / 144022	128238 / 130211	116401 / 118374	72997 / 74970	3946 / 5919
100000us	149940 / 151913	142049 / 144022	132184 / 134157	120347 / 122320	84835 / 86808	3946 / 5919
200000us	153886 / 155859	147967 / 149940	140076 / 142049	138103 / 140076	126266 / 128238	74970 / 31566
500000us	169669 / 171642	161778 / 163751	151913 / 153886	149940 / 151913	145995 / 147967	134157 / 128238
1000000us	171642 / -	171642 / -	165724 / 167696	165724 / 163751	159805 / 153886	147967 / 149940

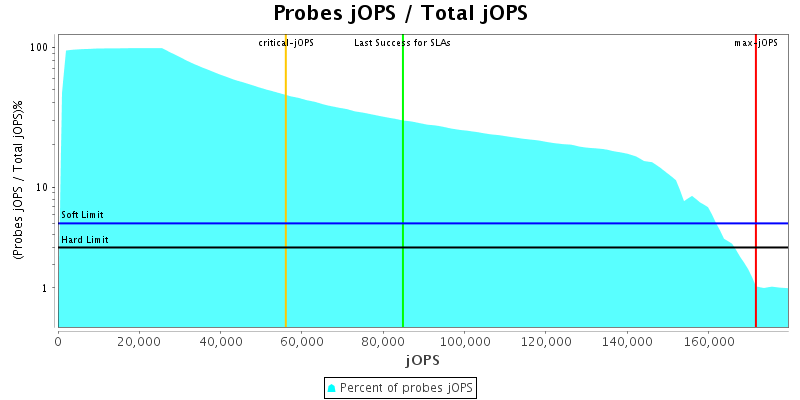

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

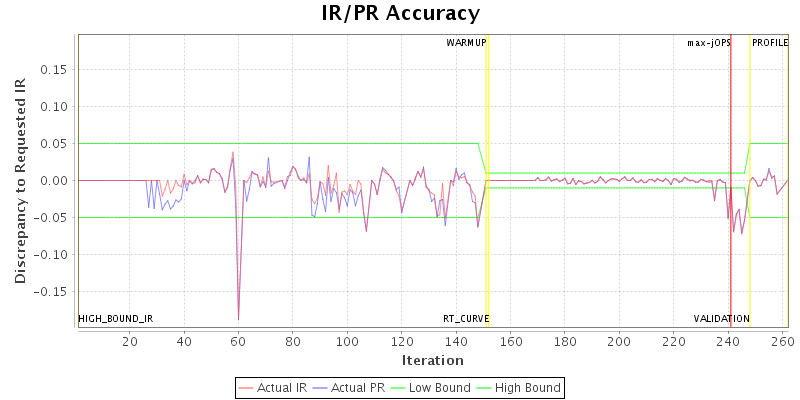

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	58
specjbb.comm.connect.worker.pool.min	1	58
specjbb.customerDriver.threads	64	{=64, probe=64, saturate=64, service=64}
specjbb.forkjoin.workers	56	{Tier1=160, Tier2=1, Tier3=28}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	56	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 197290 IR

High-bound (settled) is 177734 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Cisco Systems Cisco UCS C240 M5	171642 SPECjbb2015-MultiJVM max-jOPS 56027 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems	Test Sponsor: Cisco Systems	Test location: San Jose, CA	Test date: March 12, 2019
SPEC license #: 9019	Hardware Availability: April-2019	Software Availability: Jan-2019	Publication: Tue Apr 2 15:05:14 EDT 2019

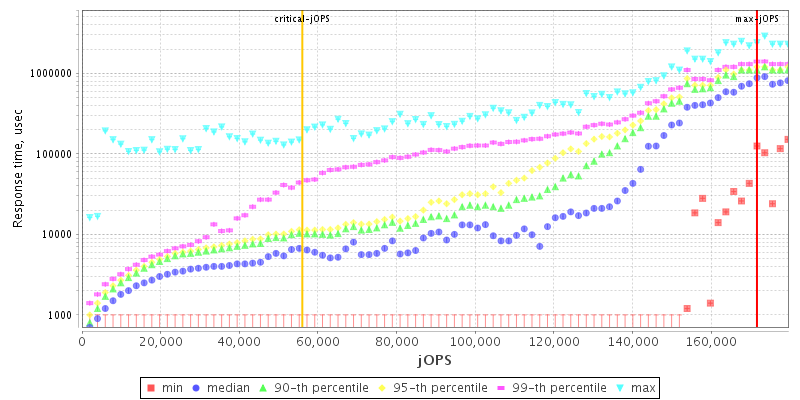

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
