Lenovo Global Technology ThinkSystem SR950 318763 SPECjbb2015-MultiJVM max-jOPS
269614 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Feb 23, 19
SPEC license #: 9017 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

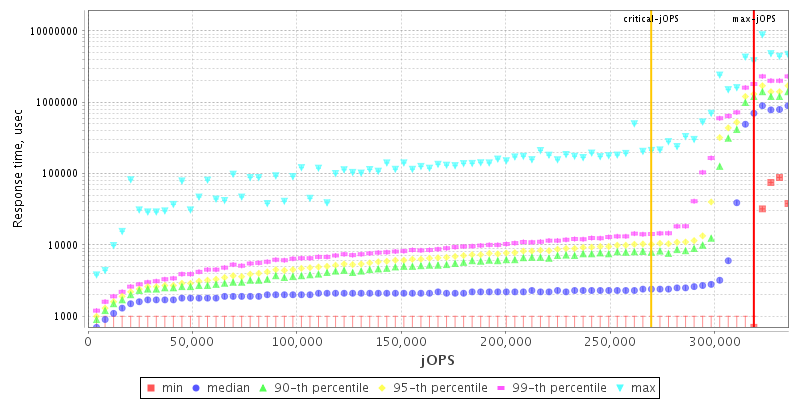

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR950
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableApr-2019
ModelThinkSystem SR950
Form Factor4U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionPSE121I
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64GB
Memory Details64GB 2Rx4 PC4-2933V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.el7.x86_64
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 3000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+UseCondCardMark -XX:ParallelGCThreads=1
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms500g -Xmx500g -Xmn440g -XX:SurvivorRatio=42 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=56 -XX:InlineSmallCode=10k
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+UseCondCardMark -XX:ParallelGCThreads=4
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 314676 318763 322849 326936 331023
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 198205 288112 292199 292199 292199 269614
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4087 - / 4087 - / 4087 - / 4087 - / 4087 - / 4087
1000us 200248 / 204335 8173 / 12260 4087 / 8173 4087 / 8173 - / 4087 - / 4087
5000us 310589 / 314676 302416 / 306502 155295 / 159381 114428 / 118514 65387 / 69474 8173 / 12260
10000us 310589 / 314676 306502 / 310589 294242 / 298329 257462 / 261549 196162 / 200248 12260 / 16347
25000us 310589 / 314676 306502 / 310589 298329 / 302416 294242 / 298329 286069 / 290156 16347 / 20433
50000us 314676 / 318763 310589 / 314676 298329 / 302416 298329 / 302416 290156 / 294242 114428 / 20433
75000us 314676 / 318763 310589 / 314676 298329 / 302416 298329 / 302416 290156 / 294242 114428 / 20433
100000us 314676 / 318763 310589 / 314676 298329 / 302416 298329 / 302416 290156 / 294242 118514 / 102167
200000us 314676 / 318763 310589 / 314676 302416 / 306502 298329 / 302416 298329 / 302416 257462 / 216595
500000us 318763 / - 314676 / 318763 310589 / 314676 306502 / 310589 298329 / 302416 290156 / 294242
1000000us 318763 / - 318763 / - 314676 / 318763 310589 / 314676 310589 / 314676 298329 / 302416
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

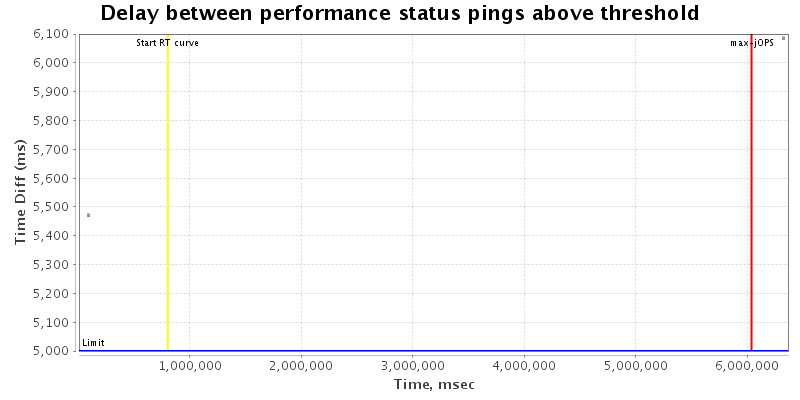

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 56 {Tier1=200, Tier2=1, Tier3=23}
specjbb.group.count 1 4
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 408670 IR
High-bound (settled) is 340625 IR
