SPECjbb2015 Report for jbb2015-20190314-00402 : 318763 max-jOPS ; 286512 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR950
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Apr-2019
Model	ThinkSystem SR950
Form Factor	4U
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	PSE121I
CPU Frequency (MHz)	2700
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1x 960GB SATA SSD
File System	xfs
Memory Amount (GB)	3072
# and size of DIMM(s)	48 x 64GB
Memory Details	64GB 2Rx4 PC4-2933V-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit NIC
Power Supply Quantity and Rating (W)	4 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux 7.6 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-957.el7.x86_64
Available	Oct-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR650
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Apr-2019
Model	ThinkSystem SR650
Form Factor	2U
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28 core, 2.70GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	PSE113P
CPU Frequency (MHz)	2700
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1x 800GB SATA SSD
File System	xfs
Memory Amount (GB)	384
# and size of DIMM(s)	24 x 16GB
Memory Details	16GB 2Rx8 PC4-2933V-R
# and type of Network Interface Cards (NICs)	1x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Red Hat Enterprise Linux 7.6 (Maipo)
Vendor	Red Hat
Vendor URL	http://www.redhat.com/
Version	3.10.0-957.el7.x86_64
Available	Oct-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Disable Patrol Scrub set to Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance SELINUX=disabled ulimit -n 32768 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 175000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 10 > /proc/sys/vm/swappiness
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms500g -Xmx500g -Xmn440g -XX:SurvivorRatio=42 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=56 -XX:InlineSmallCode=10k
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance SNC set to Enable Patrol Scrub set to Disable
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	SELINUX=disabled ulimit -n 32768
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-server -Xms3g -Xmx3g -Xmn2g -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=28
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	310589	314676	318763	322849	326936

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	230898	296285	304459	304459	304459	286512

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4087 / 8173	- / 4087	- / 4087	- / 4087	- / 4087	- / 4087
1000us	306502 / 310589	16347 / 20433	8173 / 12260	4087 / 8173	- / 4087	- / 4087
5000us	318763 / -	318763 / -	220682 / 224768	179815 / 183901	106254 / 110341	- / 4087
10000us	318763 / -	318763 / -	306502 / 310589	302416 / 306502	228855 / 232942	12260 / 16347
25000us	318763 / -	318763 / -	310589 / 314676	306502 / 310589	294242 / 298329	20433 / 24520
50000us	318763 / -	318763 / -	314676 / 318763	310589 / 314676	302416 / 306502	155295 / 24520
75000us	318763 / -	318763 / -	314676 / 318763	310589 / 314676	302416 / 306502	155295 / 24520
100000us	318763 / -	318763 / -	314676 / 318763	310589 / 314676	302416 / 306502	155295 / 122601
200000us	318763 / -	318763 / -	318763 / -	314676 / 318763	306502 / 310589	253375 / 228855
500000us	318763 / -	318763 / -	318763 / -	318763 / -	318763 / -	302416 / 298329
1000000us	318763 / -	318763 / -	318763 / -	318763 / -	318763 / -	318763 / -

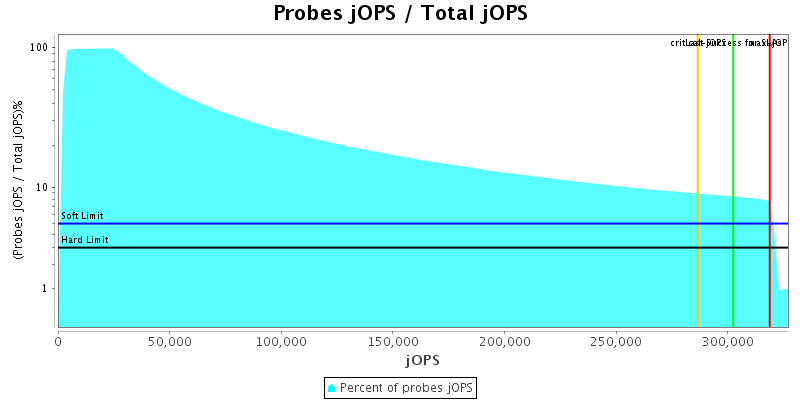

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	12
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.comm.connect.worker.pool.min	1	64
specjbb.controller.host	localhost	10.10.10.8
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	56	{Tier1=200, Tier2=1, Tier3=23}
specjbb.group.count	1	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 408670 IR

High-bound (settled) is 344905 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Lenovo Global Technology ThinkSystem SR950	318763 SPECjbb2015-Distributed max-jOPS 286512 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Feb 24, 2019
SPEC license #: 9017	Hardware Availability: Apr-2019	Software Availability: Jan-2019	Publication: Tue Apr 2 15:05:14 EDT 2019
