SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR950 248267 SPECjbb2015-Distributed max-jOPS
201615 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Mar 14, 2019
SPEC license #: 9017 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 3)

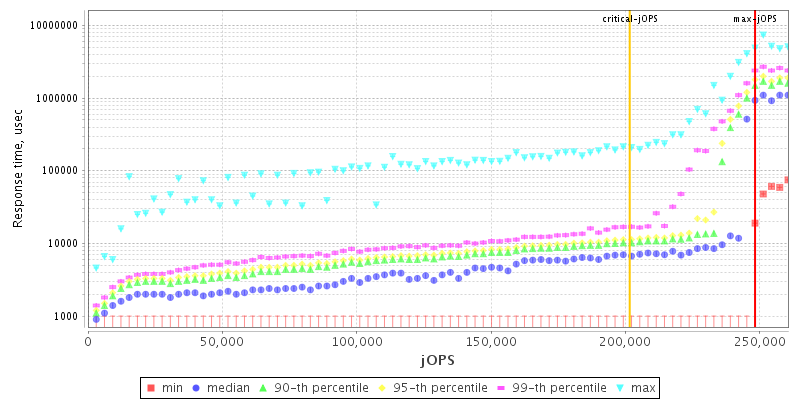

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips3
Total Cores84
Total Threads168
Total Memory Amount (GB)2304
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR950
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableApr-2019
ModelThinkSystem SR950
Form Factor4U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 core, 2.70GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System3
Cores Per System84
Cores Per Chip28
Threads Per System168
Threads Per Core2
VersionPSE121I
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)2304
# and size of DIMM(s)36 x 64GB
Memory Details64GB 2Rx4 PC4-2933V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.el7.x86_64
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableApr-2019
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 core, 2.70GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionPSE113P
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)24 x 16GB
Memory Details16GB 2Rx8 PC4-2933V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.el7.x86_64
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(3)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • SELINUX=disabled
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 10 > /proc/sys/vm/swappiness
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms500g -Xmx500g -Xmn440g -XX:SurvivorRatio=42 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=56 -XX:InlineSmallCode=10k
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Enable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(3)
OS Image Description os_2
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -server -Xms3g -Xmx3g -Xmn2g -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=28
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 245202 248267 251332 254397 257463
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 142523 213019 222214 222214 222214 201615
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3065 - / 3065 - / 3065 - / 3065 - / 3065 - / 3065
1000us 30650 / 18390 3065 / 6130 - / 3065 - / 3065 - / 3065 - / 3065
5000us 242137 / 245202 156317 / 159382 91951 / 95016 82756 / 79691 42910 / 45975 3065 / 6130
10000us 242137 / 245202 236007 / 239072 196162 / 199227 177772 / 180837 144056 / 140991 9195 / 12260
25000us 245202 / 248267 242137 / 245202 232942 / 236007 229877 / 232942 214552 / 211487 18390 / 15325
50000us 245202 / 248267 242137 / 245202 232942 / 236007 232942 / 236007 220682 / 223747 107276 / 15325
75000us 245202 / 248267 242137 / 245202 232942 / 236007 232942 / 236007 220682 / 223747 107276 / 15325
100000us 245202 / 248267 242137 / 245202 232942 / 236007 232942 / 236007 220682 / 223747 107276 / 91951
200000us 245202 / 248267 242137 / 245202 236007 / 239072 232942 / 236007 229877 / 232942 205357 / 193097
500000us 248267 / - 242137 / 245202 239072 / 242137 236007 / 239072 236007 / 239072 223747 / 226812
1000000us 248267 / - 248267 / - 245202 / 248267 242137 / 245202 239072 / 242137 236007 / 232942
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

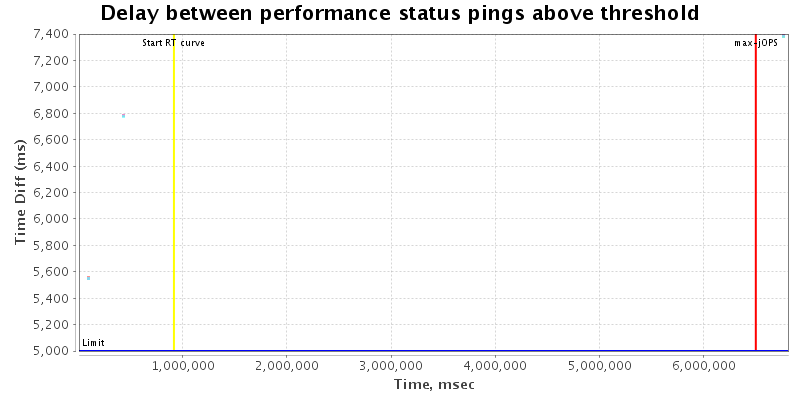

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM1 Group2.Backend.beJVM2 Group3.Backend.beJVM3
specjbb.comm.connect.selector.runner.count 0 4 12 12 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64 1 1 1
specjbb.controller.host localhost 10.10.10.1
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.rtcurve.step 0.01 0.01
specjbb.forkjoin.workers 22 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 3
specjbb.mapreducer.pool.size 22 112
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 306503 IR
High-bound (settled) is 255469 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
