SPECjbb2015 Report for jbb2015-20190314-00398 : 363013 max-jOPS ; 137248 critical-jOPS

SUT Description

Hardware hw_1
Name	Cisco UCS C480 M5
Vendor	Cisco Systems
Vendor URL	http://www.cisco.com/
Available	April-2019
Model	Cisco UCS C480 M5
Form Factor	4U Rack
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28Cores, 2.70 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	Version 4.0.3.34
CPU Frequency (MHz)	2700
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	1024 KB (I+D) per core
Tertiary Cache	38.5MB (I+D) on chip per chip
Other Cache	None
Disk	1x 400GB SSD SAS
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	48 x 32GB
Memory Details	1536 GB(48 X 32GB 2Rx4 PC4-2933V)
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	4 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	4.12.14-23-default
Available	July-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 11.0.2
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS tuning Memory Patrol Scrub disabled CPU Performance set to Enterprise Hyperthreading Enabled IMC Interleave to one-way SNC Enabled Memory RAS configuration set to Maximum performance Power Technology set to performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	tuned-adm profile set to off ulimit -n 65536 echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 5000000 > /proc/sys/kernel/sched_latency_ns echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xmn1536m -Xms2g -Xmx2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15 -XX:AllocatePrefetchInstr=2 -XX:InlineSmallCode=10k -XX:-UsePerfData
Tuning	numactl used to affinitize each Backend JVM to a single memory node numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1 numactl --cpunodebind=2 --membind=2 numactl --cpunodebind=3 --membind=3 numactl --cpunodebind=4 --membind=4 numactl --cpunodebind=5 --membind=5 numactl --cpunodebind=6 --membind=6 numactl --cpunodebind=7 --membind=7
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-showversion -Xmn1536m -Xms2g -Xmx2g -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
Tuning	numactl used to affinitize each Backend JVM to a single memory node numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1 numactl --cpunodebind=2 --membind=2 numactl --cpunodebind=3 --membind=3 numactl --cpunodebind=4 --membind=4 numactl --cpunodebind=5 --membind=5 numactl --cpunodebind=6 --membind=6 numactl --cpunodebind=7 --membind=7
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	359067	363013	366958	370904	374850

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	92726	108509	136130	171642	207154	137248

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 3946	- / 3946	- / 3946	- / 3946	- / 3946	- / 3946
1000us	15783 / 19729	3946 / 7892	- / 3946	- / 3946	- / 3946	- / 3946
5000us	323555 / 327501	288043 / 291988	110482 / 114428	63133 / 67078	43404 / 47349	- / 3946
10000us	327501 / 331446	295934 / 299880	224910 / 228856	173615 / 177561	90753 / 94699	7892 / 3946
25000us	331446 / 335392	315663 / 319609	268314 / 272260	232802 / 236747	106536 / 110482	7892 / 11837
50000us	335392 / 339338	319609 / 323555	280151 / 284097	244639 / 248585	134157 / 138103	7892 / 11837
75000us	339338 / 343284	323555 / 327501	288043 / 291988	260422 / 264368	169669 / 173615	7892 / 11837
100000us	339338 / 343284	327501 / 331446	295934 / 299880	268314 / 272260	205181 / 209127	19729 / 11837
200000us	343284 / 347230	331446 / 335392	315663 / 319609	307772 / 311717	284097 / 288043	134157 / 138103
500000us	359067 / 363013	347230 / 351175	339338 / 343284	331446 / 335392	323555 / 327501	276205 / 280151
1000000us	359067 / 363013	359067 / 363013	351175 / 355121	351175 / 355121	347230 / 351175	327501 / 331446

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

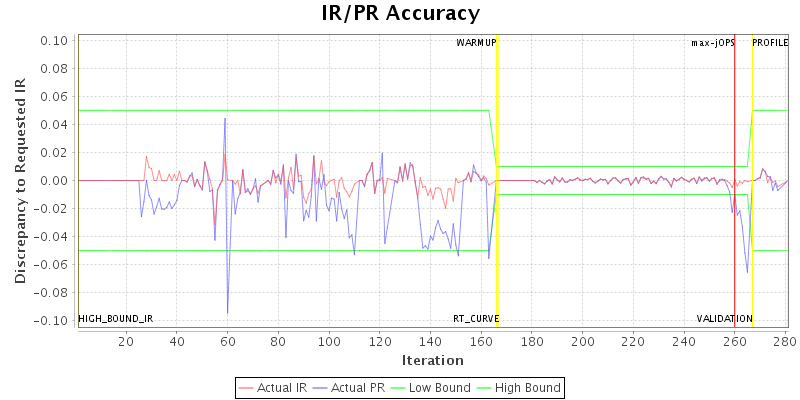

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	700000
specjbb.comm.connect.timeouts.read	60000	700000
specjbb.comm.connect.timeouts.write	60000	700000
specjbb.controller.handshake.timeout	600000	800000
specjbb.forkjoin.workers	224	{Tier1=200, Tier2=80, Tier3=30}
specjbb.group.count	1	8
specjbb.heartbeat.threshold	100000	700000
specjbb.mapreducer.pool.size	224	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 394579 IR

High-bound (settled) is 381673 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Cisco Systems Cisco UCS C480 M5	363013 SPECjbb2015-MultiJVM max-jOPS 137248 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems	Test Sponsor: Cisco Systems	Test location: San Jose, CA	Test date: March 02, 2019
SPEC license #: 9019	Hardware Availability: April-2019	Software Availability: Jan-2019	Publication: Tue Apr 2 15:05:14 EDT 2019
