SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Huawei Technologies Co., Ltd FusionServer 2288H V5 75444 SPECjbb2015-Composite max-jOPS
34835 SPECjbb2015-Composite critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shen Zhen, China Test date: Mar 13, 2019
SPEC license #: 3175 Hardware Availability: Apr-2019 Software Availability: Feb-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableApr-2019
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70GHz, 39424KB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
Version636 02/15/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5M I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
# and type of Network Interface Cards (NICs)LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/en-us/
VersionVersion 1809 (OS Build 17763.348)
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.2+9-LTS, mixed mode)
AvailableJan-2019
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Power policy set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line None
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 74614 75444 76273 77102 77931
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 12790 30026 42330 53473 59013 34835
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4145 / 4974 829 / 1658 829 / 1658 - / 829 - / 829 - / 829
1000us 60521 / 10778 4145 / 4974 2487 / 3316 2487 / 3316 1658 / 2487 - / 829
5000us 72956 / 73785 58033 / 24042 15752 / 16581 14094 / 14923 9120 / 6632 - / 829
10000us 72956 / 73785 65495 / 48914 36478 / 34820 30675 / 29846 17410 / 6632 - / 829
25000us 73785 / 74614 72956 / 73785 60521 / 52230 43940 / 44769 33991 / 15752 - / 829
50000us 73785 / 74614 72956 / 73785 65495 / 53059 60521 / 52230 43940 / 16581 12436 / 9949
75000us 73785 / 74614 72956 / 73785 70469 / 53059 65495 / 53059 56375 / 50572 24042 / 13265
100000us 73785 / 74614 72956 / 73785 72127 / 53059 70469 / 53059 60521 / 52230 37307 / 16581
200000us 73785 / 74614 73785 / 74614 72956 / 73785 72956 / 73785 72127 / 52230 58863 / 16581
500000us 74614 / 75444 73785 / 74614 73785 / 74614 73785 / 74614 72956 / 73785 70469 / 52230
1000000us 75444 / - 74614 / 75444 73785 / 74614 73785 / 74614 73785 / 74614 72956 / 73785
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

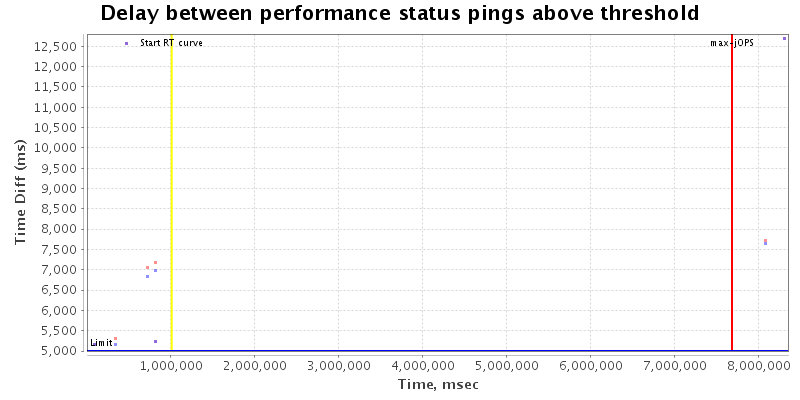

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 82905 IR
High-bound (settled) is 78948 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
