SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Huawei Technologies Co., Ltd FusionServer 2288H V5 69079 SPECjbb2015-MultiJVM max-jOPS
26336 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shen Zhen,China Test date: Mar 09, 2019
SPEC license #: 3175 Hardware Availability: Apr-2019 Software Availability: Feb-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

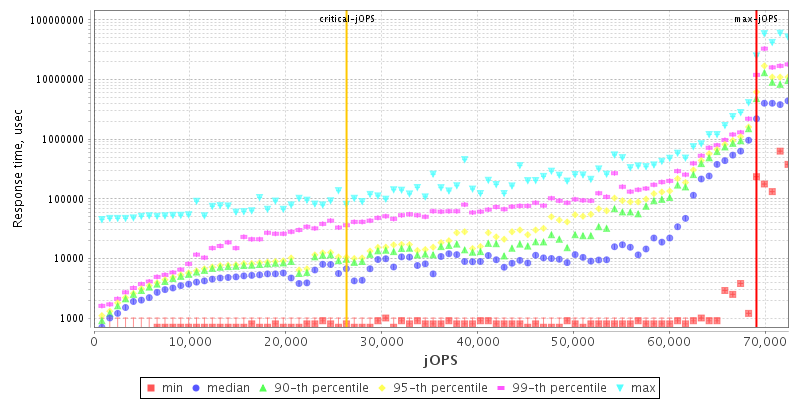

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableApr-2019
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70GHz, 39424KB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
Version636 02/15/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5M I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)12 x 32GB
Memory Details384 GB (12 x 32 GB 2Rx4 PC4-2933Y-R)
# and type of Network Interface Cards (NICs)LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/en-us/
VersionVersion 1809 (OS Build 17763.348)
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.2+9-LTS, mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Power policy set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line None
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line None
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line None
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 68257 69079 69901 70724 71546
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 10279 17681 31798 42881 51123 26336
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
1000us 2467 / 3289 1645 / 2467 822 / 1645 - / 822 - / 822 - / 822
5000us 54276 / 29605 27961 / 15625 9046 / 9868 8224 / 9046 6579 / 7401 - / 822
10000us 61678 / 62500 53454 / 32072 27961 / 23026 27138 / 20559 9868 / 10691 - / 822
25000us 62500 / 63322 60033 / 60855 51809 / 52632 45230 / 37829 17270 / 18092 - / 822
50000us 62500 / 63322 61678 / 62500 53454 / 54276 49342 / 50165 34540 / 30428 4112 / 4934
75000us 62500 / 63322 61678 / 62500 57566 / 58388 53454 / 54276 43586 / 38651 19737 / 10691
100000us 64145 / 64967 61678 / 62500 59211 / 60033 57566 / 54276 51809 / 47697 30428 / 17270
200000us 65790 / 66612 62500 / 63322 61678 / 62500 61678 / 60855 60033 / 54276 49342 / 35362
500000us 67434 / 68257 65790 / 66612 64145 / 64967 63322 / 64145 62500 / 63322 61678 / 54276
1000000us 68257 / 69079 68257 / 69079 67434 / 68257 66612 / 67434 65790 / 66612 63322 / 64145
Number of probes
Probes jOPS / Total jOPS

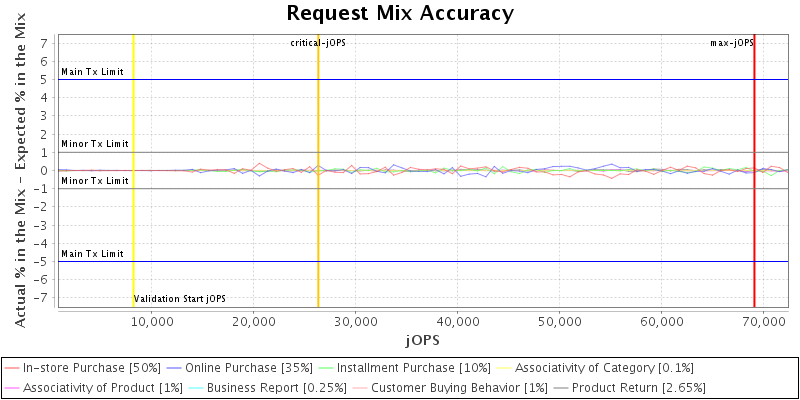

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

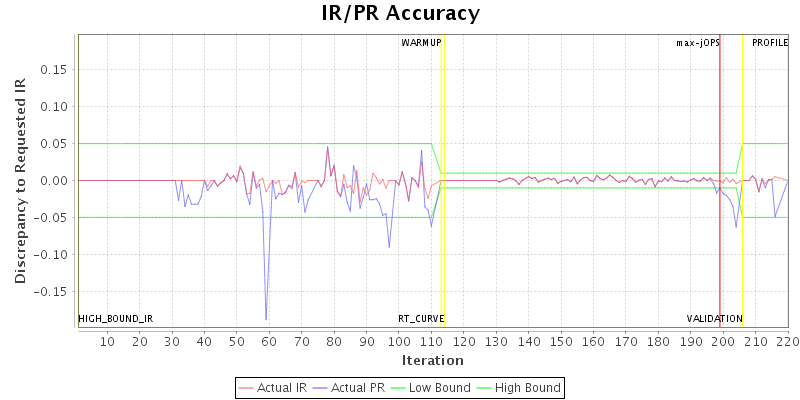

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 82237 IR
High-bound (settled) is 69802 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
