SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise ProLiant DL360 Gen10 161425 SPECjbb2015-MultiJVM max-jOPS
95252 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Mar 08, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameProLiant DL360 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL360 Gen10
Form Factor1U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionU30 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D On Chip Per Core
Secondary Cache1024 KB I+D On Chip Per Core
Tertiary Cache38.5 MB I+D On Chip Per Chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)24 x 32 GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x HPE 331i 4 Port 1 Gbit Ethernet
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttp://microsoft.com/
Version1809 (Build 17763.348)
AvailableMar-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u201
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM (build 25.201-b09, mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Memory Patrol Scrubbing=Disabled
  • LLC Dead Line Allocation=Disabled
  • LLC Prefetch=Enabled
  • XPT Prefetcher=Enabled
  • Enhanced Processor Performance=Enabled
  • Thermal Configuration=Maximum Cooling
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Lock Pages In Memory=Enabled
  • Performance Options=Adjust For Best Performance
  • Power Options=High Performance
  • Processor Scheduling=Programs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms350g -Xmx350g -Xmn340g -XX:+UseParallelOldGC -XX:ParallelGCThreads=56 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=90 -XX:-UsePerfData -Xnoclassgc
Tuning Affinitized Each JVM To Each Group In A NUMA Node Using START /NODE
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning Affinitized Each JVM To Each Group In A NUMA Node Using START /NODE
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 159381 161425 163468 165511 167555
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 65961 86842 102985 113552 117055 95252
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2043 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 98081 / 16347 4087 / 6130 2043 / 4087 2043 / 4087 - / 2043 - / 2043
5000us 138948 / 140991 100124 / 102167 98081 / 100124 98081 / 100124 59257 / 20433 - / 2043
10000us 138948 / 140991 126688 / 128731 98081 / 100124 98081 / 100124 83777 / 20433 - / 2043
25000us 155295 / 157338 151208 / 153251 140991 / 143034 132818 / 134861 87864 / 85821 6130 / 8173
50000us 157338 / 159381 151208 / 153251 143034 / 145078 138948 / 136904 110341 / 91951 40867 / 10217
75000us 157338 / 159381 151208 / 153251 145078 / 147121 138948 / 136904 120558 / 108298 40867 / 10217
100000us 157338 / 159381 153251 / 155295 145078 / 147121 143034 / 145078 120558 / 108298 40867 / 16347
200000us 157338 / 159381 155295 / 157338 145078 / 147121 145078 / 147121 134861 / 136904 73561 / 34737
500000us 161425 / - 157338 / 159381 153251 / 155295 151208 / 153251 145078 / 147121 136904 / 138948
1000000us 161425 / - 161425 / - 157338 / 159381 157338 / 159381 155295 / 157338 149165 / 147121
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

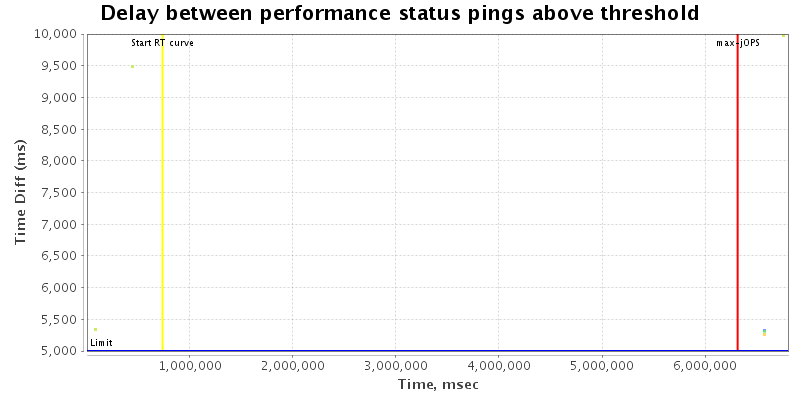

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.forkjoin.workers 56 {Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 204335 IR
High-bound (settled) is 170313 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
