SPECjbb2015 Report for jbb2015-20190313-00355 : 171641 max-jOPS ; 132472 critical-jOPS

SUT Description

Hardware hw_1
Name	Synergy 480 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Apr-2019
Model	Synergy 480 Gen10
Form Factor	Half-Height Compute Module
CPU Name	Intel Xeon Platinum 8280
CPU Characteristics	28 Core, 2.7 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	I42 02/02/2019
CPU Frequency (MHz)	2700
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 400 GB SSD SATA
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	24 x 32 GB
Memory Details	32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)	Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)	6 x 2650
Other Hardware	None
Cabinet/Housing/Enclosure	Synergy 12000 Frame
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15
Vendor	SUSE
Vendor URL	http://suse.com/
Version	4.12.14-23-default
Available	Jul-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 11.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 11.0.2
Available	Jan-2019
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute Thermal Configuration=Maximum Cooling Memory Partrol Scrubbing=Disabled Enhanced Processor Performance=Enabled LLC Deadline Allocation=Disabled LLC Prefetcher=Enabled XPT Prefetcher=Enabled Advanced Memory Protection=Advanced ECC Support Memory Pre-Failure notification=Disabled Advanced RAS Recovery Support=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance ulimit -n 131072 echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 155000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns systemctl stop systemd-update-utmp-runlevel.service
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx3g -Xmn2g
Tuning	None
Notes	Used numactl to interleave memory on all CPUs numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:-UseBiasedLocking -XX:UseAVX=0
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to a NUMA node. numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx3g -Xmn2g -XX:ParallelGCThreads=56
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	169598	171641	173685	175728	177771

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	99102	131796	142353	146099	150186	132472

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2043	- / 2043	- / 2043	- / 2043	- / 2043	- / 2043
1000us	100124 / 96037	4087 / 6130	2043 / 4087	- / 2043	- / 2043	- / 2043
5000us	165511 / 167555	155295 / 157338	89907 / 91951	71517 / 73561	42910 / 44954	- / 2043
10000us	165511 / 167555	159381 / 161425	138948 / 140991	126688 / 128731	100124 / 98081	2043 / 4087
25000us	165511 / 167555	161425 / 163468	155295 / 157338	155295 / 157338	130774 / 132818	10217 / 8173
50000us	165511 / 167555	161425 / 163468	155295 / 157338	155295 / 157338	145078 / 140991	30650 / 12260
75000us	165511 / 167555	165511 / 163468	157338 / 159381	155295 / 157338	145078 / 147121	30650 / 32694
100000us	165511 / 167555	165511 / 167555	157338 / 159381	155295 / 157338	151208 / 149165	69474 / 51084
200000us	169598 / 171641	165511 / 167555	159381 / 161425	157338 / 159381	155295 / 157338	134861 / 128731
500000us	169598 / 171641	165511 / 167555	165511 / 163468	159381 / 161425	159381 / 161425	155295 / 157338
1000000us	171641 / -	171641 / -	169598 / 171641	165511 / 167555	165511 / 167555	159381 / 161425

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

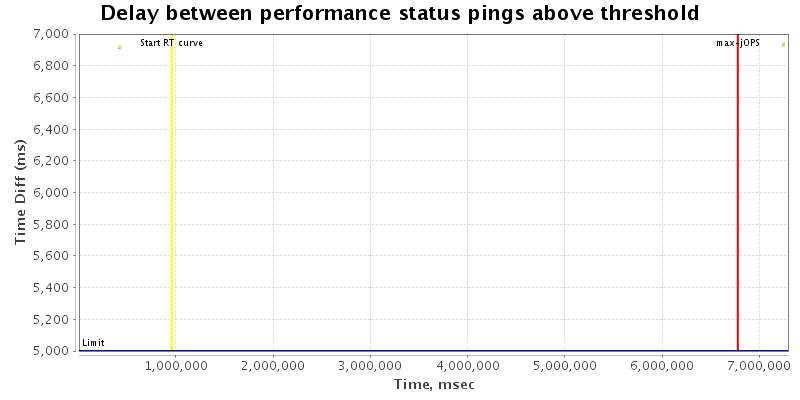

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.forkjoin.workers	112	{Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count	1	2
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 204335 IR

High-bound (settled) is 183562 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]

Hewlett Packard Enterprise Synergy 480 Gen10	171641 SPECjbb2015-MultiJVM max-jOPS 132472 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: March 06, 2019
SPEC license #: 3	Hardware Availability: Apr-2019	Software Availability: Jan-2019	Publication: Tue Apr 2 15:05:14 EDT 2019


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 2) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
