SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise ProLiant DL360 Gen10 85821 SPECjbb2015-Composite max-jOPS
46127 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Mar 11, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameProLiant DL360 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL360 Gen10
Form Factor1U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionU30 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D On Chip Per Core
Secondary Cache1024 KB I+D On Chip Per Core
Tertiary Cache38.5 MB I+D On Chip Per Chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemNTFS
Memory Amount (GB)192
# and size of DIMM(s)12 x 16 GB
Memory Details16 GB 2Rx8 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x HPE 331i 4 Port 1 Gbit Ethernet
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttp://microsoft.com/
Version1809 (Build 17763.348)
AvailableMar-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u201
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM (build 25.201-b09, mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Lock Pages In Memory=Enabled
  • Performance Options=Adjust For Best Performance
  • Power Options=High Performance
  • Processor Scheduling=Programs
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Lock Pages In Memory=Enabled
  • Performance Options=Adjust For Best Performance
  • Power Options=High Performance
  • Processor Scheduling=Programs
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms150g -Xmx150g -Xmn120g -XX:+UseParallelGC -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:+UseNUMA -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 84799 85821 86843 87864 88886
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 32353 38313 47508 55681 63684 46127
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 6130 / 7152 2043 / 3065 1022 / 2043 1022 / 2043 - / 1022 - / 1022
1000us 74583 / 19412 6130 / 7152 3065 / 4087 3065 / 4087 3065 / 4087 - / 1022
5000us 83778 / 84799 71518 / 72539 60279 / 20434 45976 / 19412 15325 / 16347 5108 / 1022
10000us 83778 / 84799 75604 / 76626 61301 / 56192 55171 / 48019 33715 / 31672 8173 / 3065
25000us 83778 / 84799 81734 / 82756 73561 / 74583 68453 / 69474 37802 / 38824 8173 / 3065
50000us 83778 / 84799 81734 / 82756 75604 / 76626 70496 / 71518 46997 / 48019 33715 / 3065
75000us 83778 / 84799 81734 / 82756 75604 / 76626 73561 / 72539 55171 / 56192 41889 / 3065
100000us 83778 / 84799 83778 / 82756 75604 / 76626 73561 / 74583 66409 / 58236 42911 / 9195
200000us 84799 / 85821 83778 / 84799 79691 / 80713 77648 / 76626 73561 / 71518 52106 / 46997
500000us 85821 / - 84799 / 85821 83778 / 84799 83778 / 82756 80713 / 81734 69474 / 58236
1000000us 85821 / - 85821 / - 85821 / - 85821 / - 83778 / 84799 74583 / 75604
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

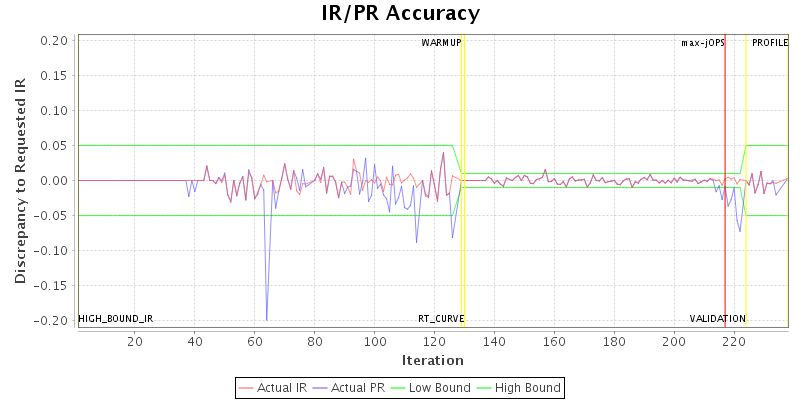

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 102168 IR
High-bound (settled) is 90677 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
