Fujitsu PRIMERGY RX1330 M4 25155 SPECjbb2015-MultiJVM max-jOPS
9535 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Oct 7, 2018
SPEC license #: 19 Hardware Availability: Nov-2018 Software Availability: Jul-2018 Publication: Thu Nov 8 10:44:08 EST 2018
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores6
Total Threads12
Total Memory Amount (GB)64
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFujitsu Server PRIMERGY RX1330 M4
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableNov-2018
ModelFujitsu Server PRIMERGY RX1330 M4
Form Factor1U
CPU NameIntel Xeon E-2186G
CPU Characteristics6 core, 3.80GHz, 12MB L3 Cache (Turbo Boost Technology up to 4.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System6
Cores Per Chip6
Threads Per System12
Threads Per Core2
VersionNone
CPU Frequency (MHz)3800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache12MB I+D on chip per chip
Other CacheNone
Disk1x 240GB M.2 SSD
File Systemxfs
Memory Amount (GB)64
# and size of DIMM(s)4 x 16GB
Memory Details16GB 2Rx8 PC4-2666V-E
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 450W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.12.14-23-default
AvailableJul-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • VT-d set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
  • cpupower -c all frequency-set -g performance
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 500000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx28g -Xms28g -Xmn27g --add-modules=java.xml.bind -XX:+UseParallelOldGC -XX:ParallelGCThreads=12 -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=23 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:TargetSurvivorRatio=90 -XX:+UseRTMDeopt -XX:MaxGCPauseMillis=300
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 24869 25155 25441 25726 26012
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 7289 8175 9528 10976 12648 9535
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 286 - / 286 - / 286 - / 286 - / 286 - / 286
1000us 572 / 858 286 / 572 - / 286 - / 286 - / 286 - / 286
5000us 20867 / 21153 15150 / 15436 4859 / 5145 4574 / 4859 3716 / 4002 1429 / 572
10000us 21725 / 22010 19438 / 19724 14864 / 15150 12292 / 12006 7432 / 7146 1429 / 572
25000us 22010 / 22296 20581 / 20867 17437 / 17723 15436 / 15722 8861 / 7718 1429 / 572
50000us 22296 / 22582 21153 / 21439 18580 / 18866 17151 / 17437 9719 / 9147 1429 / 572
75000us 22296 / 22582 21725 / 22010 19152 / 19438 17437 / 17723 11434 / 10291 1429 / 572
100000us 22296 / 22582 21725 / 22010 19724 / 20009 18009 / 18294 12863 / 12006 1429 / 572
200000us 22868 / 23154 22296 / 22582 21439 / 21725 20581 / 20867 17437 / 17723 14292 / 4002
500000us 24869 / 25155 23440 / 23726 22868 / 23154 22582 / 22868 22582 / 22868 21725 / 20581
1000000us 25155 / - 24869 / 25155 24297 / 24583 24297 / 24583 23726 / 24011 22868 / 23154

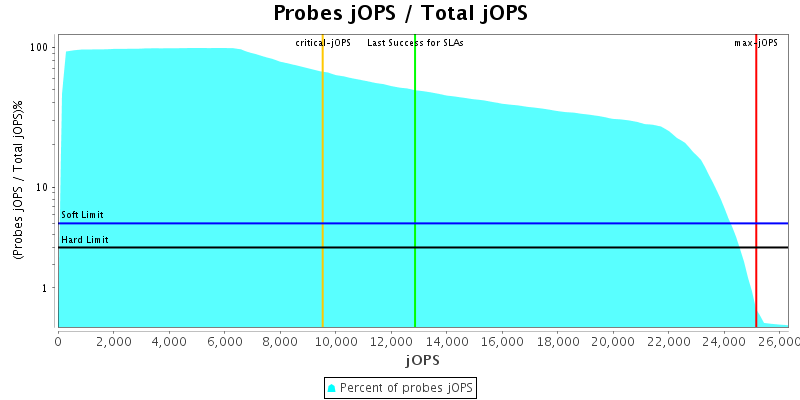

Probes jOPS / Total jOPS

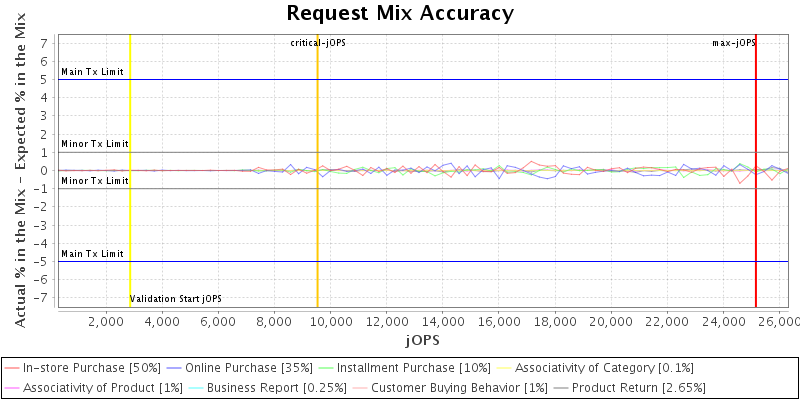

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 28585 IR
High-bound (settled) is 26500 IR
