Hewlett Packard Enterprise ProLiant DL380 Gen10 68453 SPECjbb2015-Composite max-jOPS
46617 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Spetember 18, 2018
SPEC license #: 3 Hardware Availability: Jun-2018 Software Availability: Aug-2018 Publication: Thu Oct 11 18:37:58 EDT 2018
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2018
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionU30 06/20/2018
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)24 x 32 GB
Memory Details32 GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2016 Standard
VendorMicrosoft
Vendor URLhttp://www.microsoft.com/
VersionVersion 1607 (OS Build 14393.2430)
AvailableAug-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Memory Patrol Scrubbing=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k --add-modules=java.xml.bind -XX:CompileThreshold=1000
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 67431 68453 69474 70496 71518
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 32523 46486 51595 52616 53638 46617
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4087 / 2043 1022 / 2043 - / 1022 - / 1022 - / 1022 - / 1022
1000us 56192 / 22477 5108 / 6130 2043 / 3065 1022 / 2043 - / 1022 - / 1022
5000us 66409 / 67431 56192 / 57214 45976 / 20434 45976 / 20434 36780 / 2043 11238 / 1022
10000us 66409 / 67431 58236 / 57214 45976 / 37802 45976 / 31672 36780 / 31672 21455 / 3065
25000us 68453 / - 63344 / 64366 52106 / 53127 51084 / 52106 45976 / 46997 26564 / 3065
50000us 68453 / - 64366 / 65388 54149 / 55171 53127 / 54149 51084 / 52106 26564 / 3065
75000us 68453 / - 64366 / 65388 54149 / 55171 54149 / 55171 52106 / 53127 36780 / 3065
100000us 68453 / - 64366 / 65388 54149 / 55171 54149 / 55171 53127 / 54149 45976 / 3065
200000us 68453 / - 65388 / 66409 56192 / 57214 56192 / 55171 54149 / 55171 51084 / 50062
500000us 68453 / - 67431 / 68453 59257 / 57214 56192 / 57214 56192 / 57214 52106 / 53127
1000000us 68453 / - 68453 / - 67431 / 68453 64366 / 65388 60279 / 61301 56192 / 55171
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

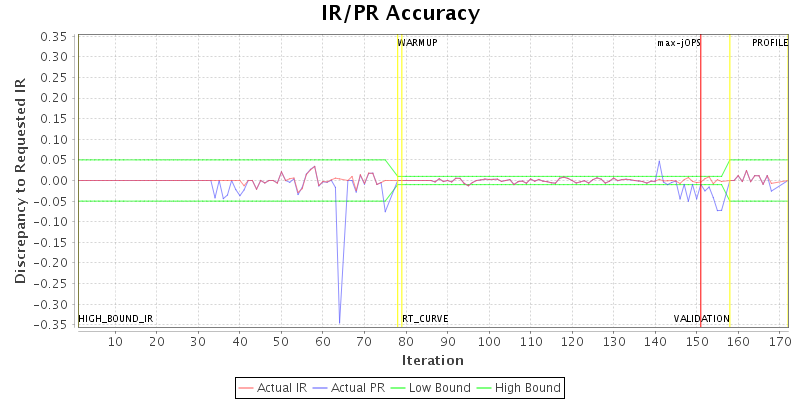

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 6000000
specjbb.comm.connect.timeouts.read 60000 6000000
specjbb.comm.connect.timeouts.write 60000 6000000
specjbb.heartbeat.threshold 100000 10000000
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 102168 IR
High-bound (settled) is 85156 IR
