Lenovo Global Technology ThinkSystem SR650 153282 SPECjbb2015-Distributed max-jOPS
130617 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jul 26, 2018
SPEC license #: 9017 Hardware Availability: Aug-2017 Software Availability: Jul-2018 Publication: Sep 13, 2018
Benchmark Results Summary

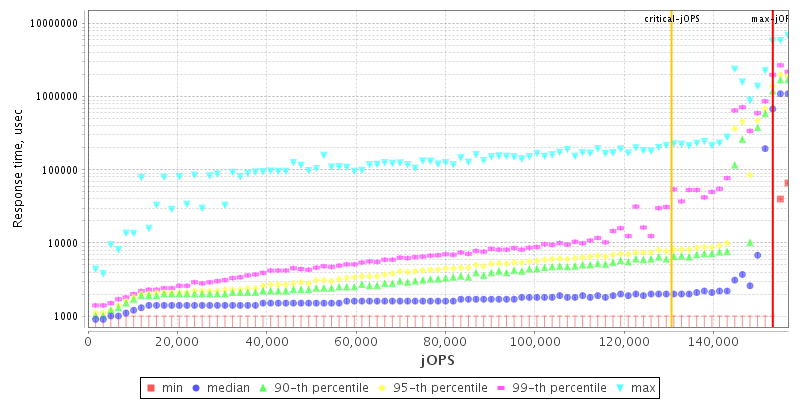

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180M
CPU Characteristics28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionIVE121D
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.5
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-862.3.2
AvailableMay-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameLenovo System x3550 M5
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableMar-2016
ModelLenovo System x3550 M5
Form Factor1U
CPU NameIntel Xeon E5-2697A v4
CPU Characteristics16 core, 2.60GHz, 40MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
VersionNone
CPU Frequency (MHz)2600
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache40 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details16GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 900W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux 7.2
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-327
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 10.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 10 > /proc/sys/vm/swappiness
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=20 -XX:MaxTenuringThreshold=15 --add-modules=java.xml.bind -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=56 -XX:InlineSmallCode=10k -verbose:gc
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • COD Preference set to Enable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m --add-modules=java.xml.bind -XX:+UseCondCardMark -XX:+UseParallelOldGC
Tuning numactl used to affinitize Ctr JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -server -Xms3g -Xmx3g -Xmn2g --add-modules=java.xml.bind -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=16
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 149875 151579 153282 154985 156688
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 109851 124896 135399 142211 143914 130617
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1703 - / 1703 - / 1703 - / 1703 - / 1703 - / 1703
1000us 143063 / 144766 6813 / 8516 3406 / 5109 - / 1703 - / 1703 - / 1703
5000us 151579 / 153282 148172 / 149875 112407 / 114110 88563 / 90266 56203 / 57906 3406 / 5109
10000us 151579 / 153282 149875 / 151579 143063 / 144766 143063 / 144766 110703 / 109000 6813 / 8516
25000us 151579 / 153282 149875 / 151579 148172 / 144766 143063 / 144766 126032 / 122625 13625 / 11922
50000us 151579 / 153282 149875 / 151579 148172 / 144766 143063 / 144766 139657 / 131141 30656 / 11922
75000us 151579 / 153282 149875 / 151579 148172 / 144766 143063 / 144766 141360 / 143063 30656 / 11922
100000us 151579 / 153282 149875 / 151579 148172 / 144766 148172 / 144766 143063 / 144766 61313 / 45985
200000us 151579 / 153282 151579 / 153282 148172 / 146469 148172 / 144766 143063 / 144766 126032 / 122625
500000us 153282 / - 151579 / 153282 149875 / 151579 149875 / 151579 148172 / 144766 143063 / 144766
1000000us 153282 / - 153282 / - 151579 / 153282 151579 / 153282 151579 / 153282 148172 / 144766

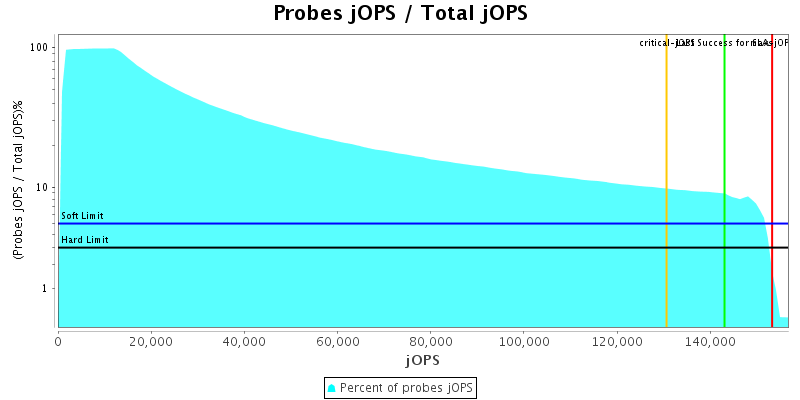

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

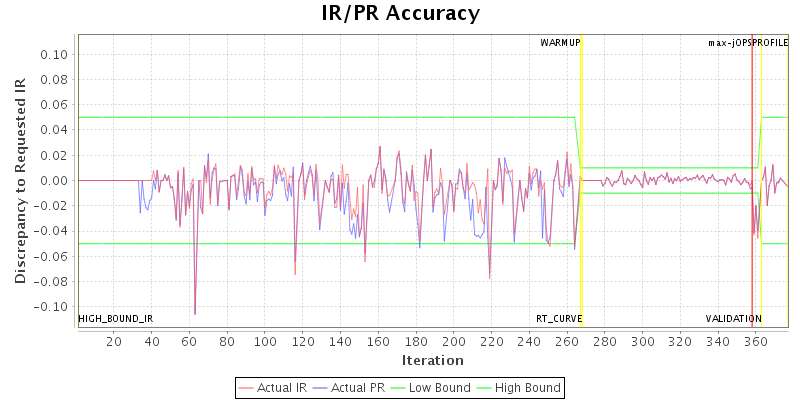

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.host localhost 10.10.10.153
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 16 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 170313 IR
High-bound (settled) is 163759 IR
