SPECjbb2015 Report for jbb2015-20180829-00303 : 74937 max-jOPS ; 66008 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL380 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jun-2018
Model	ProLiant DL380 Gen10
Form Factor	2U Rack
CPU Name	Intel Xeon Platinum 8180
CPU Characteristics	28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	28
Cores Per Chip	28
Threads Per System	56
Threads Per Core	2
Version	U30 06/20/2018
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP3
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.4.120-94.17-default
Available	Mar-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 10.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 10.0.2
Available	Jul-2018
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL380 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jun-2018
Model	ProLiant DL380 Gen10
Form Factor	2U Rack
CPU Name	Intel Xeon Platinum 8180
CPU Characteristics	28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	U30 06/20/2018
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 400 GB SSD SAS
File System	XFS
Memory Amount (GB)	192
# and size of DIMM(s)	24 x 8 GB
Memory Details	8 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 12 SP3
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.4.120-94.17-default
Available	Mar-2018
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 10.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 10.0.2
Available	Jul-2018
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute Thermal Configuration=Maximum Cooling
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(1)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 175000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	--add-modules=java.xml.bind -XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms705g -Xmx705g -Xmn652g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to NUMA node. numactl --cpunodebind=0 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute Thermal Configuration=Maximum Cooling Sub-NUMA Clustering=Enabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(1)
OS Image Description	os_2
Tuning	tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 175000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	--add-modules=java.xml.bind -Xms2g -Xmx3g -Xmn2g
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	--add-modules=java.xml.bind -Xms2g -Xmx3g -Xmn2g -XX:ParallelGCThreads=56
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	74086	74937	75789	76640	77492

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	52371	69260	70168	70168	70168	66008

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 852	- / 852	- / 852	- / 852	- / 852	- / 852
1000us	45133 / 45984	2555 / 3406	1703 / 2555	852 / 1703	- / 852	- / 852
5000us	74086 / 74937	71531 / 72383	43430 / 44281	34914 / 35766	22141 / 22992	- / 852
10000us	74086 / 74937	73234 / 72383	67273 / 68125	63867 / 64719	51945 / 52797	- / 852
25000us	74937 / -	73234 / 74086	71531 / 72383	71531 / 70679	69828 / 68125	17883 / 5109
50000us	74937 / -	73234 / 74086	71531 / 72383	71531 / 70679	71531 / 68125	45133 / 5961
75000us	74937 / -	73234 / 74086	71531 / 72383	71531 / 70679	71531 / 68125	45133 / 5961
100000us	74937 / -	73234 / 74086	73234 / 72383	71531 / 70679	71531 / 68125	45133 / 5961
200000us	74937 / -	73234 / 74086	73234 / 72383	73234 / 72383	71531 / 70679	64719 / 54500
500000us	74937 / -	74937 / -	73234 / 72383	73234 / 72383	73234 / 72383	71531 / 70679
1000000us	74937 / -	74937 / -	74937 / -	74937 / -	74937 / -	71531 / 72383

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

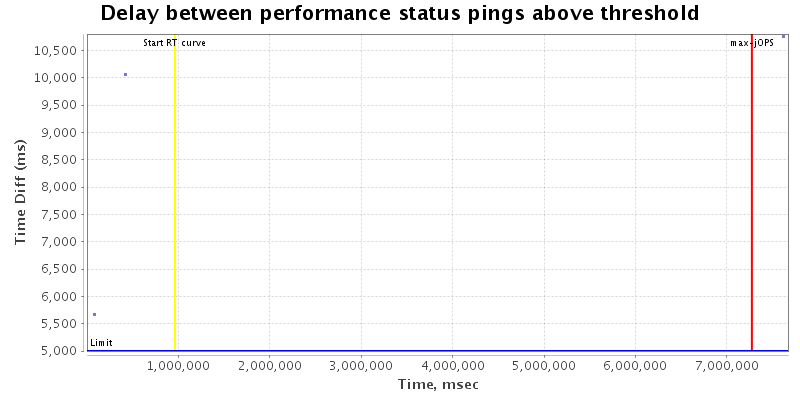

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.host	localhost	10.10.0.174
specjbb.forkjoin.workers	112	{Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count	1	1
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 85156 IR

High-bound (settled) is 80520 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]

Hewlett Packard Enterprise ProLiant DL380 Gen10	74937 SPECjbb2015-Distributed max-jOPS 66008 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: August 16, 2018
SPEC license #: 3	Hardware Availability: Jun-2018	Software Availability: Jul-2018	Publication: Sep 13, 2018
