H3C UniServer R6900 G3 339338 SPECjbb2015-Distributed max-jOPS
120540 SPECjbb2015-Distributed critical-jOPS
Tested by: H3C Test Sponsor: H3C Test location: Hangzhou, ZheJiang, China Test date: Mar 23, 2018
SPEC license #: 9066 Hardware Availability: Oct-2017 Software Availability: Jan-2018 Publication: Fri Apr 13 11:24:41 EDT 2018
Benchmark Results Summary

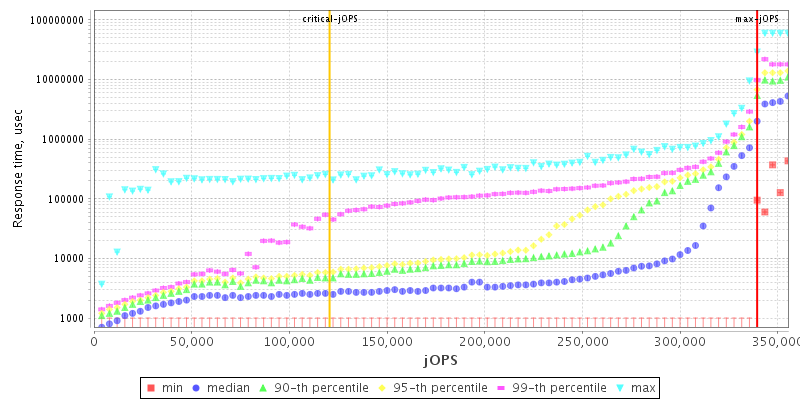

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorH3C
Vendor URLhttp://www.h3c.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameH3C UniServer R6900 G3
VendorH3C
Vendor URLhttp://www.h3c.com
AvailableOct-2017
ModelH3C UniServer R6900 G3
Form Factor4U
CPU NameIntel(R) Xeon(R) Platinum 8180 CPU
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache39424 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 300 GB SSD SATA
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)48 x 16 GB
Memory Details768 GB (48 x 16 GB 2Rx8 PC4-2666V)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE Linux Enterprise Server
Vendor URLhttps://www.suse.com/
Version4.4.21-69-default
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 9.0.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 9.0.4
AvailableJan-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameH3C UniServer R6900 G3
VendorH3C
Vendor URLhttp://www.h3c.com
AvailableOct-2017
ModelH3C UniServer R6900 G3
Form Factor4U
CPU NameIntel(R) Xeon(R) Platinum 8180 CPU
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache39424 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)384
# and size of DIMM(s)24 x 16 GB
Memory Details384 GB (24 x 16 GB 2Rx8 PC4-2666V)
# and type of Network Interface Cards (NICs)2x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE Linux Enterprise Server
Vendor URLhttps://www.suse.com/
Version4.4.21-69-default
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 9.0.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 9.0.4
AvailableJan-2018
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • SNC was enable
  • IMC set to 1-way Interleave
  • Memory Patrol Scrub was disabled
  • Energy Performance BIAS Mode set to Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • tuned-adm active profile was throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -verbose:gc -XX:-UseBiasedLocking -XX:AllocatePrefetchInstr=2 --add-modules=java.xml.bind
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • SNC was enable
  • IMC set to 1-way Interleave
  • Memory Patrol Scrub was disabled
  • Energy Performance BIAS Mode set to Performance
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • tuned-adm active profile was throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14 --add-modules=java.xml.bind
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14 --add-modules=java.xml.bind
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 335392 339338 343284 347230 351175
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 80889 100618 120346 147967 175588 120540
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 74970 / 51295 11837 / 15783 - / 3946 - / 3946 - / 3946 - / 3946
5000us 311717 / 315663 256476 / 260422 122319 / 126265 98645 / 102591 47349 / 51295 3946 / 7892
10000us 315663 / 319609 295934 / 299880 220964 / 224910 185452 / 189398 82862 / 78916 3946 / 7892
25000us 323555 / 327501 307772 / 311717 268314 / 272260 232802 / 236747 98645 / 102591 11837 / 7892
50000us 323555 / 327501 311717 / 315663 276205 / 280151 244639 / 248585 122319 / 118374 11837 / 7892
75000us 327501 / 331446 315663 / 319609 280151 / 284097 256476 / 260422 145994 / 149940 11837 / 7892
100000us 327501 / 331446 315663 / 319609 288043 / 291988 264368 / 268314 173615 / 177561 11837 / 7892
200000us 331446 / 335392 319609 / 323555 303826 / 307772 295934 / 299880 272260 / 276205 71024 / 31566
500000us 335392 / 339338 327501 / 331446 319609 / 323555 319609 / 323555 315663 / 319609 268314 / 252531
1000000us 339338 / - 335392 / 339338 327501 / 331446 327501 / 331446 323555 / 327501 315663 / 319609
Probes jOPS / Total jOPS

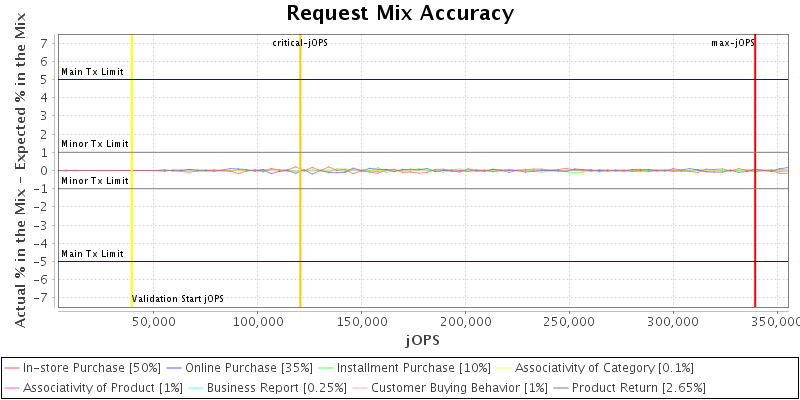

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.TxInjector.txiJVM1 Group2.TxInjector.txiJVM1 Group3.TxInjector.txiJVM1 Group4.TxInjector.txiJVM1 Group5.TxInjector.txiJVM1 Group6.TxInjector.txiJVM1 Group7.TxInjector.txiJVM1 Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000 600000 600000 600000 600000 600000 600000 600000 600000
specjbb.comm.connect.timeouts.read 60000 700000 600000 600000 600000 600000 600000 600000 600000 600000
specjbb.comm.connect.timeouts.write 60000 700000 600000 600000 600000 600000 600000 600000 600000 600000
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 1
specjbb.controller.host localhost 192.168.10.2
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 224 {=228, Tier1=200, Tier2=75, Tier3=32}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 200000
specjbb.mapreducer.pool.size 224 224
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 365753 IR
