SPECjbb2015
Copyright © 2015-2018 Standard Performance Evaluation Corporation
H3C UniServer R6900 G3 253044 SPECjbb2015-Composite max-jOPS
93986 SPECjbb2015-Composite critical-jOPS
Tested by: H3C Test Sponsor: H3C Test location: Hangzhou, ZheJiang, China Test date: Mar 15, 2018
SPEC license #: 9066 Hardware Availability: Oct-2017 Software Availability: Jan-2018 Publication: Thu Apr 5 17:14:46 EDT 2018
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorH3C
Vendor URLhttp://www.h3c.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameH3C UniServer R6900 G3
VendorH3C
Vendor URLhttp://www.h3c.com
AvailableOct-2017
ModelH3C UniServer R6900 G3
Form Factor4U
CPU NameIntel(R) Xeon(R) Platinum 8180 CPU
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache39424 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 300 GB SSD SATA
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)48 x 16 GB
Memory Details768 GB (48 x 16 GB 2Rx8 PC4-2666V)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE Linux Enterprise Server
Vendor URLhttps://www.suse.com/
Version4.4.21-69-default
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 9.0.4
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 9.0.4
AvailableJan-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub was disabled
  • Energy Performance BIAS Mode set to Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 5000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=17 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k --add-modules=java.xml.bind
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Pass Fail
jOPS 249995 253044 256092 259141 262190
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 80283 84220 96034 101696 111060 93986
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 42682 / 45731 - / 3049 - / 3049 - / 3049 - / 3049 - / 3049
1000us 240849 / 243898 100608 / 103656 6097 / 9146 3049 / 6097 - / 3049 - / 3049
5000us 249995 / 253044 231703 / 225605 121949 / 112803 82315 / 76218 54877 / 45731 - / 3049
10000us 249995 / 253044 231703 / 225605 152436 / 155485 140241 / 143290 97559 / 45731 3049 / 6097
25000us 249995 / 253044 240849 / 243898 210362 / 204264 173777 / 149387 97559 / 76218 27438 / 6097
50000us 253044 / - 240849 / 243898 210362 / 204264 192069 / 155485 115851 / 76218 51828 / 6097
75000us 253044 / - 240849 / 243898 216459 / 204264 192069 / 155485 115851 / 76218 51828 / 15244
100000us 253044 / - 243898 / 246946 216459 / 204264 201216 / 155485 137192 / 76218 57926 / 15244
200000us 253044 / - 249995 / 246946 231703 / 213410 207313 / 155485 170728 / 76218 115851 / 33536
500000us 253044 / - 253044 / - 237800 / 225605 237800 / 213410 216459 / 149387 161582 / 76218
1000000us 253044 / - 253044 / - 253044 / - 253044 / - 253044 / - 237800 / 88413
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

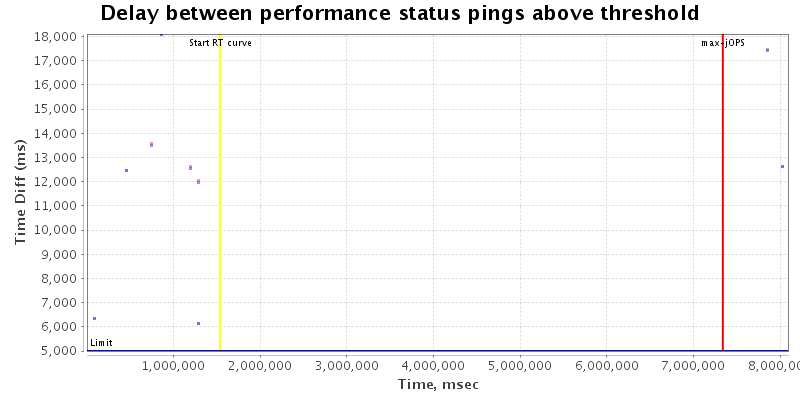

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.selector.runner.count 0 0
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 1
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.rtcurve.warmup.step 0.1 0.9
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 224 {=224, Tier1=224, Tier2=110, Tier3=55}
specjbb.heartbeat.threshold 100000 200000
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 304872 IR
High-bound (settled) is 277186 IR
Copyright © 2015-2018 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]
