SPECjbb2015
Copyright © 2015-2018 Standard Performance Evaluation Corporation
ATEC A1GR2 43403 SPECjbb2015-Composite max-jOPS
19623 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: Seongnam-city, Gyeonggi-do, Korea Test date: Feb 13, 2018
SPEC license #: A83 Hardware Availability: Jan-2018 Software Availability: Jan-2018 Publication: Thu Mar 8 18:17:04 EST 2018
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

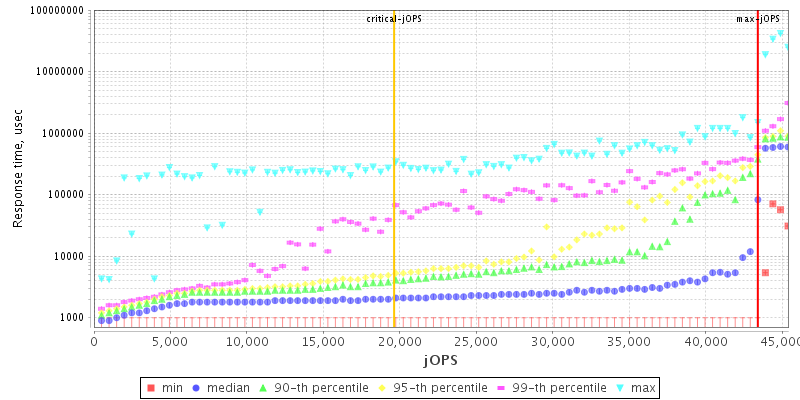

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorATEC
Vendor URLhttp://atec.kr/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores20
Total Threads40
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameA1GR2
VendorATEC
Vendor URLhttp://www.atec.kr
AvailableJan-18
ModelA1GR2
Form Factor2U
CPU NameIntel Xeon E5-2640v4
CPU Characteristics10Core, 2.4Ghz, 25MB L3 Cache (Turbo Boost Technology up to 3.4GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System20
Cores Per Chip10
Threads Per System40
Threads Per Core2
VersionNone
CPU Frequency (MHz)2400
Primary Cache32 KB(I) + 32 KB(D) Per Core
Secondary Cache2560 KB Per Chip
Tertiary Cache25600 KB Per Chip
Other CacheNone
Disk1 x 1TB SATA
File SystemXFS
Memory Amount (GB)128GB
# and size of DIMM(s)8 x 16GB
Memory DetailsDDR4 U-dimm 16GB 2133MHz
# and type of Network Interface Cards (NICs)2 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1100W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttp://www.suse.com
Version4.4.73-5-default
AvailableSep-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u161
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_161
AvailableJan-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration
  • CPU Power and Performance Policy set to Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms100g -Xmx100g -Xmn88g -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 42910 43403 43897 44390 44883
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 13152 15673 20057 24825 28345 19623
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 493 - / 493 - / 493 - / 493 - / 493 - / 493
1000us 21208 / 21702 1480 / 1973 - / 493 - / 493 - / 493 - / 493
5000us 43403 / - 39951 / 40444 23675 / 24168 19236 / 19729 11344 / 10358 3946 / 1480
10000us 43403 / - 42417 / 42910 34525 / 35019 30086 / 28607 13810 / 12824 3946 / 1973
25000us 43403 / - 42910 / 43403 37485 / 37978 33046 / 29593 18742 / 14797 3946 / 1973
50000us 43403 / - 42910 / 43403 38964 / 38471 36005 / 35019 20715 / 19729 8385 / 1973
75000us 43403 / - 42910 / 43403 39458 / 39951 37485 / 35019 25154 / 24168 10851 / 1973
100000us 43403 / - 43403 / - 41924 / 40444 38964 / 37978 32059 / 24168 10851 / 1973
200000us 43403 / - 43403 / - 42417 / 42910 41924 / 40937 38964 / 35019 10851 / 3453
500000us 43403 / - 43403 / - 43403 / - 43403 / - 42910 / 43403 34525 / 29593
1000000us 43403 / - 43403 / - 43403 / - 43403 / - 43403 / - 42910 / 39458
Number of probes
Probes jOPS / Total jOPS

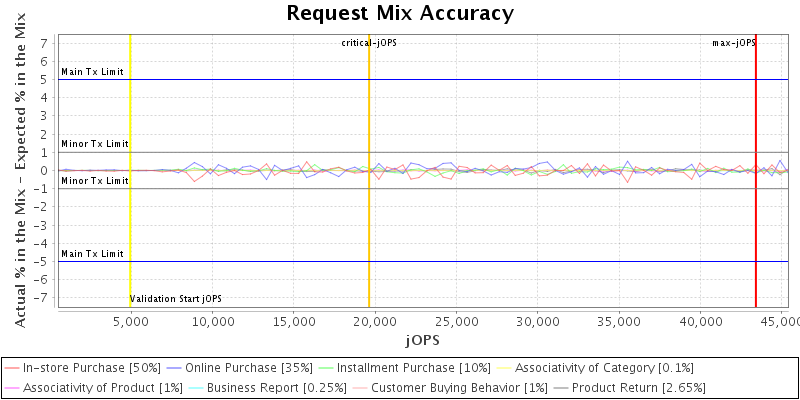

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

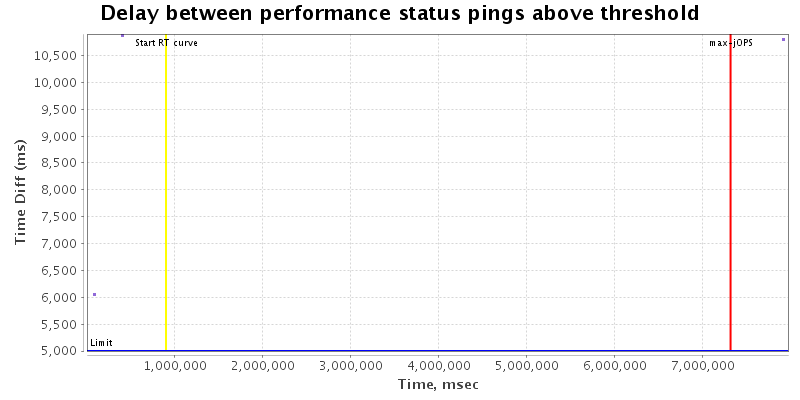

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

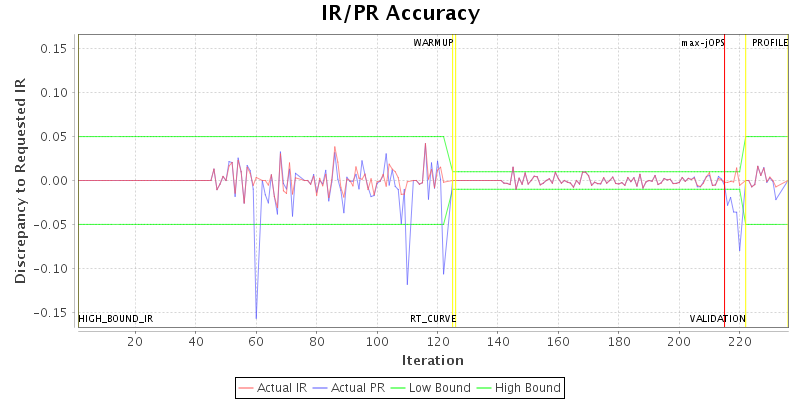

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 49322 IR
High-bound (settled) is 46640 IR
Copyright © 2015-2018 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]
