SPECjbb2015 Report for jbb2015-20180131-00278 : 120879 max-jOPS ; 77717 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL385 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2017
Model	ProLiant DL385 Gen10
Form Factor	2U Rack
CPU Name	AMD EPYC 7601
CPU Characteristics	32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.2 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	64
Cores Per Chip	32
Threads Per System	128
Threads Per Core	2
Version	A40 10/06/2017
CPU Frequency (MHz)	2200
Primary Cache	64 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	8MB L3 cache per 4 core
Other Cache	None
Disk	1 x 800 GB SSD SAS
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64G 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP3
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.4.73-5-default
Available	Sep-2017
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u152
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_152
Available	Oct-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ProLiant DL580 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Sep-2017
Model	ProLiant DL580 Gen10
Form Factor	4U Rack
CPU Name	Intel Xeon Platinum 8180
CPU Characteristics	28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	U34 12/14/2017
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 800 GB SSD SAS
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	48 x 16 GB
Memory Details	16 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	4 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Workload Profile=High Performance Compute Thermal Configuration=Maximum Cooling Memory Patrol Scrubbing=Disabled
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 12 SP3
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.4.73-5-default
Available	Sep-2017
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 8u152
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_152
Available	Oct-2017
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=General Throughput Compute Thermal Configuration=Maximum Cooling Processor Power and Utilization Monitoring=Disabled Performance Determinism=Power Deterministic
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(8)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 200000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns Added cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms123g -Xmx123g -Xmn121g -XX:SurvivorRatio=80 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:InlineSmallCode=12k -XX:MaxGCPauseMillis=500
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to NUMA node. numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	None
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description	os_2
Tuning	tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 200000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns Added processor.max_cstate=1 intel_idle.max_cstate=0 to GRUB_CMDLINE_LINUX_DEFAULT
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=28 -XX:-UsePerfData -XX:+UseParallelOldGC
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:ParallelGCThreads=28 -XX:-UsePerfData -XX:+UseParallelOldGC
Tuning	None
Notes	None

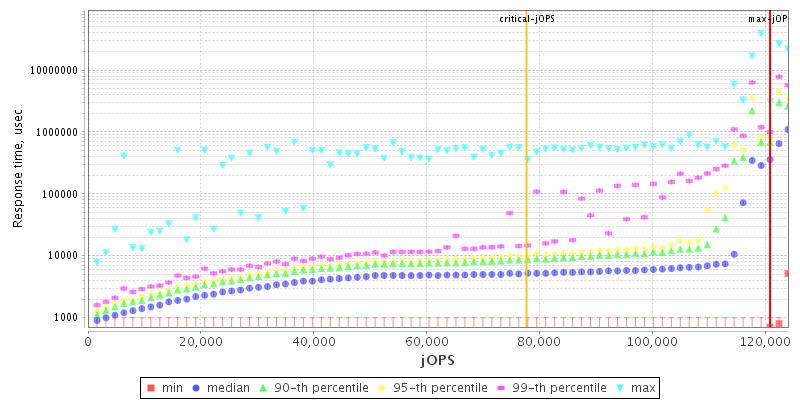

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	117698	119288	120879	122469	124060

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	45329	83502	89802	89802	92885	77717

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1591	- / 1591	- / 1591	- / 1591	- / 1591	- / 1591
1000us	15905 / 17496	3181 / 4772	- / 1591	- / 1591	- / 1591	- / 1591
5000us	116107 / 117698	73163 / 74754	31810 / 33401	28629 / 30220	19086 / 20677	- / 1591
10000us	117698 / 119288	112926 / 114517	89069 / 90659	77935 / 79525	44534 / 46125	1591 / 3181
25000us	117698 / 119288	114517 / 116107	109745 / 111336	108155 / 109745	92250 / 74754	17496 / 4772
50000us	117698 / 119288	114517 / 116107	112926 / 114517	108155 / 109745	98612 / 79525	30220 / 6362
75000us	117698 / 119288	116107 / 117698	112926 / 114517	109745 / 111336	98612 / 79525	38172 / 6362
100000us	117698 / 119288	116107 / 117698	112926 / 114517	109745 / 111336	101793 / 79525	38172 / 6362
200000us	120879 / -	116107 / 117698	112926 / 114517	112926 / 114517	108155 / 104974	38172 / 6362
500000us	120879 / -	120879 / -	116107 / 117698	112926 / 114517	112926 / 114517	79525 / 15905
1000000us	120879 / -	120879 / -	120879 / 117698	120879 / 117698	120879 / 114517	112926 / 114517

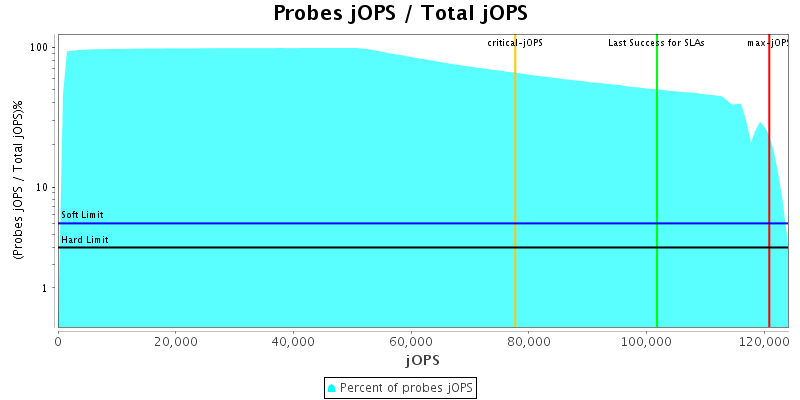

Number of probes

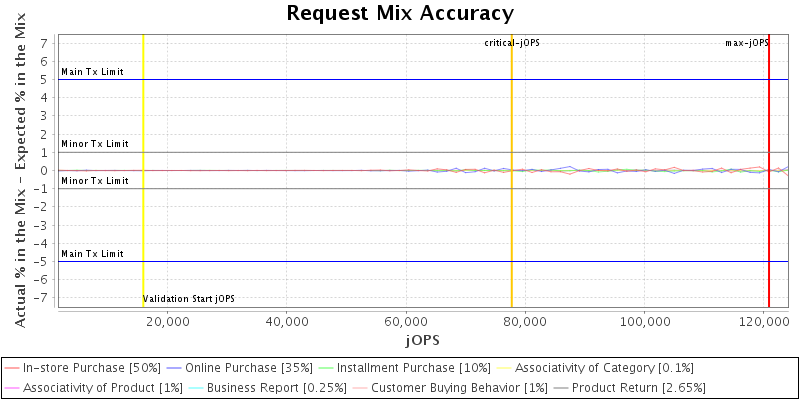

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

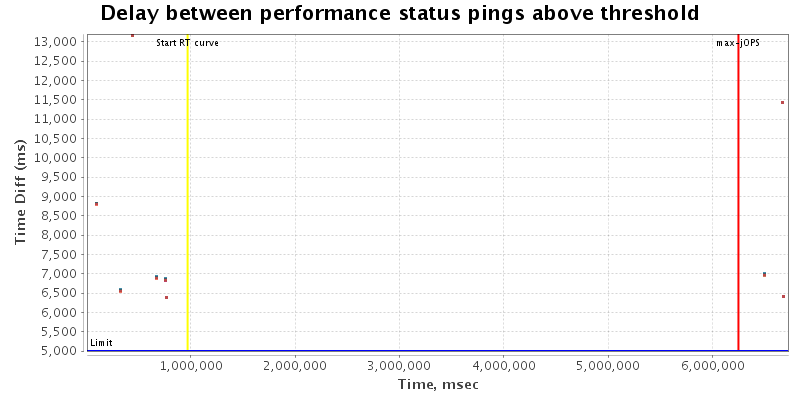

Delay between performance status pings during RT Curve (Response-Throughput Curve)

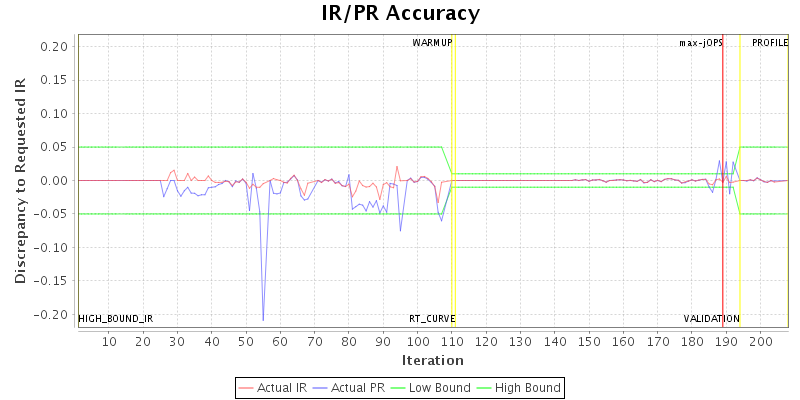

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	700000
specjbb.comm.connect.timeouts.read	60000	700000
specjbb.comm.connect.timeouts.write	60000	700000
specjbb.comm.connect.worker.pool.max	256	111
specjbb.comm.connect.worker.pool.min	1	64
specjbb.controller.host	localhost	10.10.0.206
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	224	{Tier1=90, Tier2=1, Tier3=13}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	224	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 159051 IR

High-bound (settled) is 139809 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]

Hewlett Packard Enterprise ProLiant DL385 Gen10	120879 SPECjbb2015-Distributed max-jOPS 77717 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: January 04, 2018
SPEC license #: 3	Hardware Availability: Nov-2017	Software Availability: Oct-2017	Publication: Fri Feb 16 11:54:56 EST 2018
