SPECjbb2015 Report for jbb2015-20171025-00263 : 84799 max-jOPS ; 39487 critical-jOPS

Hardware hw_1
Name	ProLiant DL385 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2017
Model	ProLiant DL385 Gen10
Form Factor	2U Rack
CPU Name	AMD Epyc 7601
CPU Characteristics	32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.2 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	64
Cores Per Chip	32
Threads Per System	128
Threads Per Core	2
Version	A40 10/06/2017
CPU Frequency (MHz)	2200
Primary Cache	64 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	64 MB I+D on chip per chip
Other Cache	None
Disk	1 x 800 GB SSD SAS
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64G 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP3
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.4.73-5-default
Available	Sep-2017
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u144
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_144
Available	Jul-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute Thermal Configuration=Maximum Cooling Memory Patrol Scrubbing=Disabled Processor Power and Utilization Monitoring=Disabled Memory Pre-Failure Notification=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	tuned-adm profile=throughput-performance echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo always > /sys/kernel/mm/transparent_hugepage/defrag echo 1000 > /proc/sys/kernel/sched_migration_cost_ns systemctl stop systemd-update-utmp-runlevel.service Added cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:CompileThreshold=1000 -XX:ParallelGCThreads=128
Tuning	None
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	83778	84799	85821	86843	87864

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	17757	42074	48149	49149	54297	39487

Note

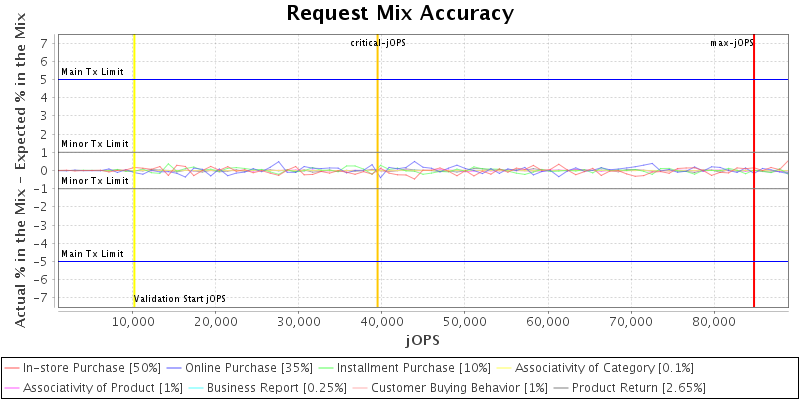

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	6000000
specjbb.comm.connect.timeouts.read	60000	6000000
specjbb.comm.connect.timeouts.write	60000	6000000
specjbb.heartbeat.threshold	100000	10000000


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 102168 IR

High-bound (settled) is 85156 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise ProLiant DL385 Gen10	84799 SPECjbb2015-Composite max-jOPS 39487 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: October 19, 2017
SPEC license #: 3	Hardware Availability: Nov-2017	Software Availability: Sep-2017	Publication: Tue Nov 21 12:21:24 EST 2017

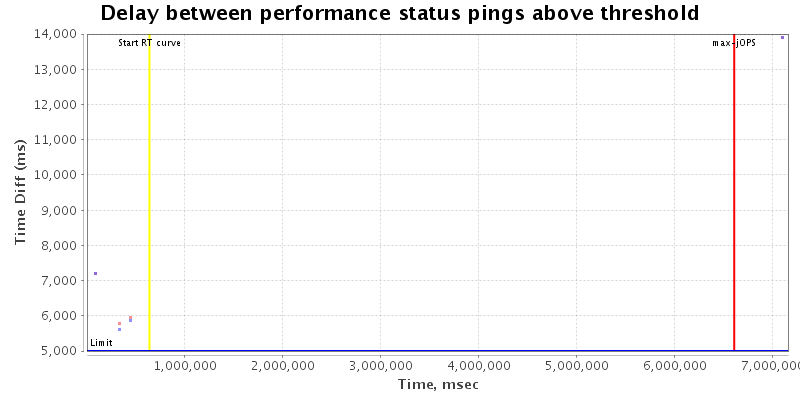

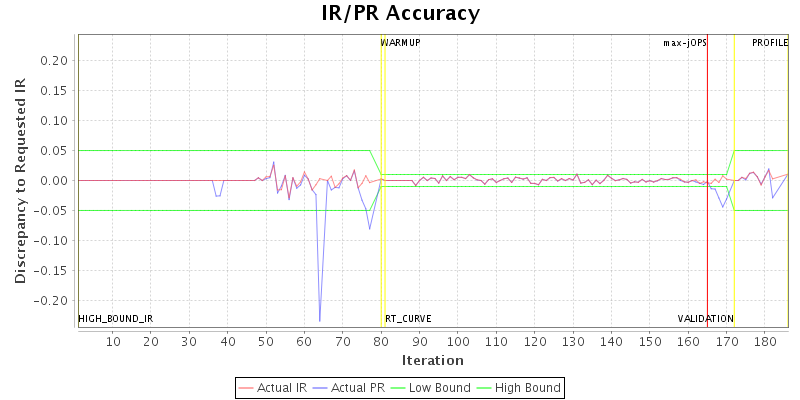

SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
