SPECjbb2015
Copyright © 2015-2017 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR650 144766 SPECjbb2015-Distributed max-jOPS
120407 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Sep 4, 2017
SPEC license #: 9017 Hardware Availability: Aug-2017 Software Availability: Jul-2017 Publication: Thu Oct 26 18:23:05 EDT 2017
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 2)

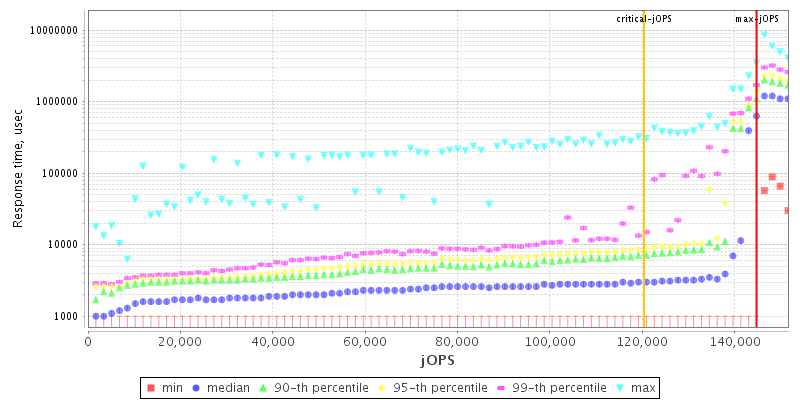

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server 7.3 (Maipo)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameLenovo System x3550 M5
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableMar-2016
ModelLenovo System x3550 M5
Form Factor1U
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22 core, 2.20GHz, 55MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details16GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)1 x 900W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server 7.2 (Maipo)
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 8u144
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 10 > /proc/sys/vm/swappiness
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms360g -Xmx360g -Xmn340g -XX:SurvivorRatio=36 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode = Maximum Performance
  • COD Preference set to Enable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=22
Tuning numactl used to affinitize Ctr JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=22
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 143063 144766 146469 148172 149875
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 97930 123355 125180 125180 133695 120407
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1703 - / 1703 - / 1703 - / 1703 - / 1703 - / 1703
1000us 136250 / 134547 3406 / 5109 - / 1703 - / 1703 - / 1703 - / 1703
5000us 141360 / 143063 137954 / 139657 86860 / 76641 57906 / 59610 35766 / 37469 - / 1703
10000us 144766 / - 139657 / 141360 136250 / 134547 127735 / 129438 97078 / 98782 8516 / 1703
25000us 144766 / - 141360 / 143063 137954 / 139657 136250 / 134547 127735 / 117516 8516 / 10219
50000us 144766 / - 141360 / 143063 137954 / 139657 137954 / 134547 127735 / 122625 86860 / 11922
75000us 144766 / - 141360 / 143063 137954 / 139657 137954 / 139657 127735 / 122625 86860 / 11922
100000us 144766 / - 141360 / 143063 137954 / 139657 137954 / 139657 136250 / 131141 86860 / 11922
200000us 144766 / - 141360 / 143063 137954 / 139657 137954 / 139657 136250 / 134547 86860 / 69828
500000us 144766 / - 143063 / 144766 141360 / 143063 137954 / 139657 137954 / 139657 137954 / 134547
1000000us 144766 / - 144766 / - 143063 / 144766 143063 / 144766 141360 / 143063 137954 / 139657

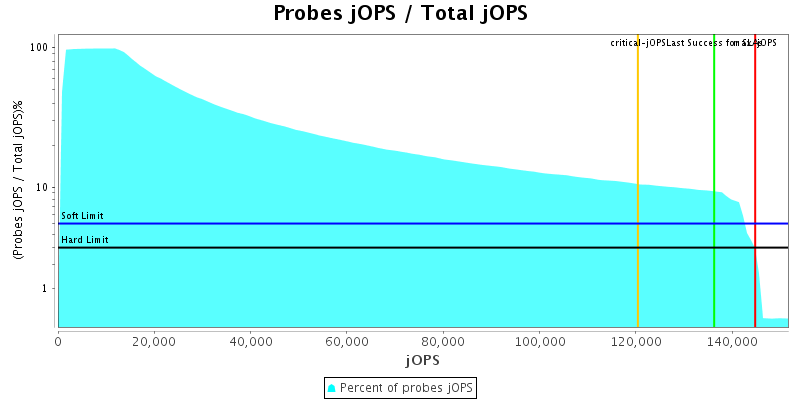

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.host localhost 10.10.10.153
specjbb.forkjoin.workers 32 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 2
specjbb.heartbeat.threshold 100000 200000
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 170313 IR
High-bound (settled) is 153002 IR
