Cisco Systems Cisco UCS C480 M5 262190 SPECjbb2015-Composite max-jOPS
97569 SPECjbb2015-Composite critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: July 2, 2017
SPEC license #: 9019 Hardware Availability: August-2016 Software Availability: April-2017 Publication: Jul 20, 2017
Benchmark Results Summary

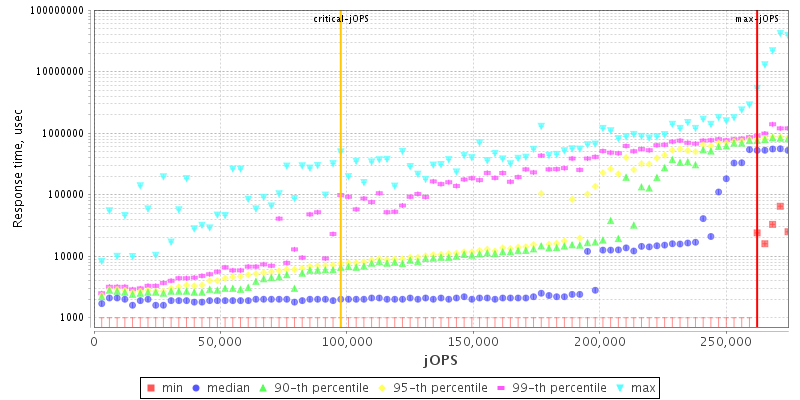

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C480 M5
VendorNone
Vendor URLNone
AvailableAugust-2017
ModelCisco UCS C480 M5
Form Factor4U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28Cores, 2.50 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64GB
Memory Details3072 GB(48 X 64GB 4DRx4 DDR4 PC4-2666V)
# and type of Network Interface Cards (NICs)2 x 1 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.3
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-514.el7.x86_64
AvailableNovember-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApril-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to Auto
  • SNC Disabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
  • ulimit -n 819200
  • ulimit -s 819200
  • tuned-adm profile set to off
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 5000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=17 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 259141 262190 265239 268287 271336
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 81008 86507 92477 108399 125868 97569
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3049 - / 3049 - / 3049 - / 3049 - / 3049 - / 3049
1000us 128046 / 3049 - / 3049 - / 3049 - / 3049 - / 3049 - / 3049
5000us 249995 / 253044 198167 / 195118 79267 / 82315 60974 / 64023 42682 / 45731 - / 3049
10000us 249995 / 253044 198167 / 195118 143290 / 146339 128046 / 131095 91462 / 73169 15244 / 6097
25000us 256092 / 259141 243898 / 240849 207313 / 204264 192069 / 176826 94510 / 73169 30487 / 6097
50000us 256092 / 259141 243898 / 246946 213410 / 210362 192069 / 176826 94510 / 88413 51828 / 6097
75000us 256092 / 259141 243898 / 246946 213410 / 210362 192069 / 176826 121949 / 97559 70121 / 18292
100000us 256092 / 259141 243898 / 246946 213410 / 210362 192069 / 176826 131095 / 112803 91462 / 18292
200000us 256092 / 259141 249995 / 253044 222557 / 225605 198167 / 201216 167680 / 155485 131095 / 54877
500000us 262190 / - 256092 / 259141 237800 / 240849 225605 / 228654 207313 / 201216 182923 / 121949
1000000us 262190 / - 262190 / - 262190 / - 262190 / - 262190 / - 225605 / 176826
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

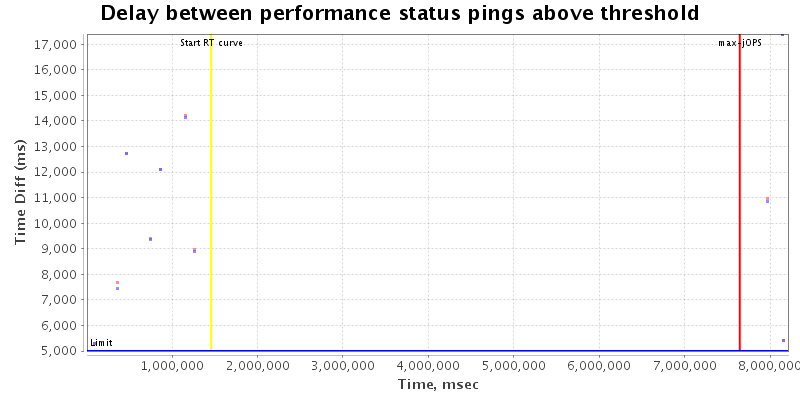

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.forkjoin.workers 224 {Tier1=224, Tier2=110, Tier3=55}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 304872 IR
High-bound (settled) is 269359 IR
