SPECjbb2015
Copyright © 2015-2017 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS C480 M5 351175 SPECjbb2015-MultiJVM max-jOPS
112800 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: July 03, 2017
SPEC license #: 9019 Hardware Availability: August-2016 Software Availability: April-2017 Publication: Jul 20, 2017
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 8)

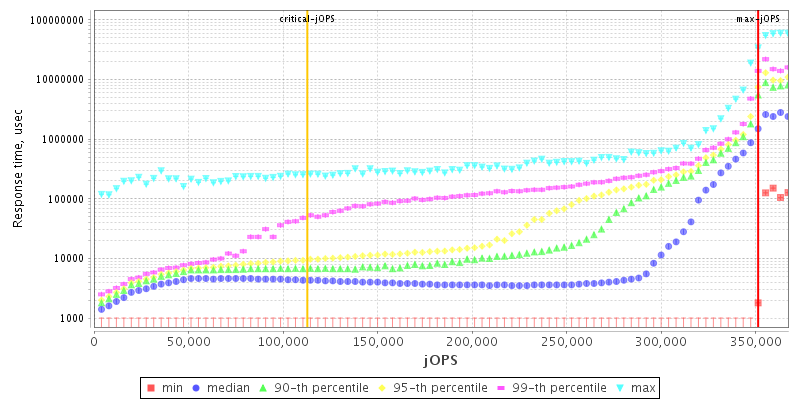

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS C480 M5
VendorNone
Vendor URLNone
AvailableAugust-2017
ModelCisco UCS C480 M5
Form Factor4U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28Cores, 2.50 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)768
# and size of DIMM(s)48 x 16GB
Memory Details768 GB(48 X 16GB 2Rx4 PC4-2666V)
# and type of Network Interface Cards (NICs)2 x 1 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP2
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSUSE Linux Enterprise Server 12 SP2 (x86_64)
AvailableNovember-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApril-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to one-way
  • SNC Enabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile set to off
  • ulimit -n 65536
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 5000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=2 --membind=2
  • numactl --cpunodebind=3 --membind=3
  • numactl --cpunodebind=4 --membind=4
  • numactl --cpunodebind=5 --membind=5
  • numactl --cpunodebind=6 --membind=6
  • numactl --cpunodebind=7 --membind=7
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=2 --membind=2
  • numactl --cpunodebind=3 --membind=3
  • numactl --cpunodebind=4 --membind=4
  • numactl --cpunodebind=5 --membind=5
  • numactl --cpunodebind=6 --membind=6
  • numactl --cpunodebind=7 --membind=7
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 347230 351175 355121 359067 363013
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 69051 92726 116401 140075 174930 112800
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
5000us 315663 / 319609 288043 / 291988 35512 / 39458 31566 / 35512 23675 / 27621 - / 3946
10000us 323555 / 327501 295934 / 299880 209127 / 205181 122319 / 126265 67078 / 71024 - / 3946
25000us 327501 / 331446 307772 / 311717 264368 / 268314 217018 / 220964 94699 / 90753 - / 3946
50000us 331446 / 335392 315663 / 319609 272260 / 276205 236747 / 240693 118374 / 114428 - / 3946
75000us 331446 / 335392 315663 / 319609 280151 / 284097 248585 / 252531 142048 / 138103 - / 3946
100000us 331446 / 335392 319609 / 323555 284097 / 288043 256476 / 260422 177561 / 169669 - / 3946
200000us 339338 / 343284 327501 / 331446 303826 / 307772 291988 / 295934 272260 / 276205 71024 / 19729
500000us 347230 / 351175 339338 / 343284 327501 / 331446 323555 / 327501 319609 / 323555 280151 / 284097
1000000us 351175 / - 347230 / 351175 339338 / 343284 339338 / 343284 335392 / 339338 319609 / 323555

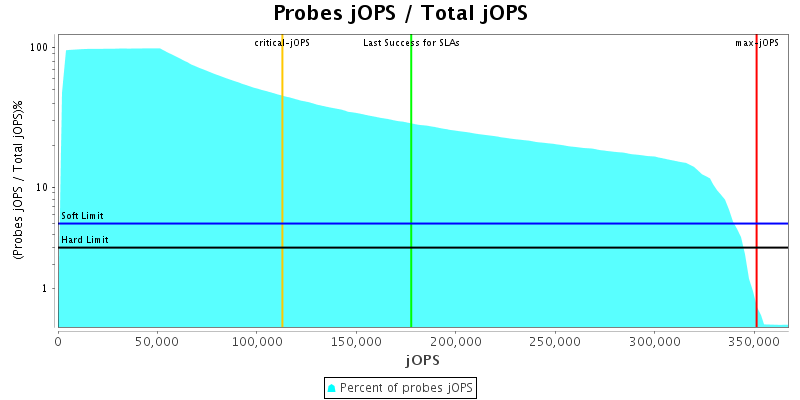

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

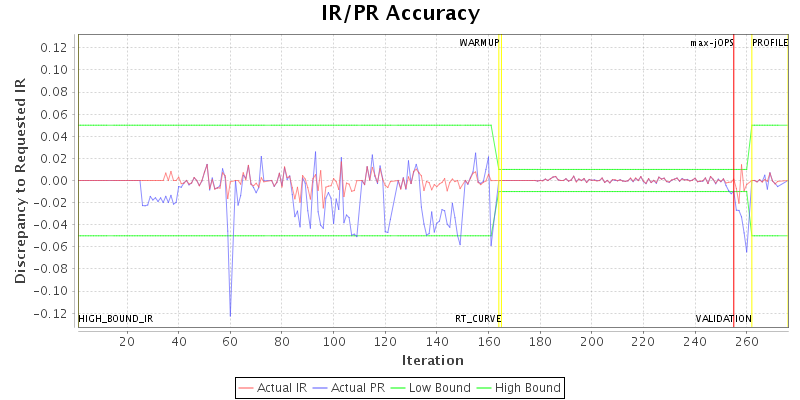

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 120
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 224 {Tier1=190, Tier2=70, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 224 28
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 394579 IR
High-bound (settled) is 372886 IR
