SPECjbb2015 Report for jbb2015-20170621-00171 : 253044 max-jOPS ; 109590 critical-jOPS

Hardware hw_1
Name	Synergy 660 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jul-2017
Model	Synergy 660 Gen10
Form Factor	Full-height Compute Module
CPU Name	Intel Xeon Platinum 8180 CPU
CPU Characteristics	28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	I43 06/01/2017
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D per core
Secondary Cache	1024 KB I+D per core
Tertiary Cache	38.5 MB I+D per chip
Other Cache	None
Disk	1 x 480 GB SSD SAS
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	48 x 16384 MB
Memory Details	16 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)	Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)	6 x 2650
Other Hardware	None
Cabinet/Housing/Enclosure	Synergy 12000 Frame
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	4.4.21-69-default
Available	Nov-2016
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u131
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_131
Available	Apr-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Composite_1 : Composite

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute (HPC) Thermal Configuration=Maximum Cooling Process Jitter Control=Manual-tuned Process Jitter Control Frequency=3000
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Composite_1(1)
OS Image Description	os_1
Tuning	echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo always > /sys/kernel/mm/transparent_hugepage/defrag echo 1000 > /proc/sys/kernel/sched_migration_cost_ns systemctl stop systemd-update-utmp-runlevel.service ulimit -l 800000000 ulimit -m 800000000 ulimit -v 800000000 ulimit -n 819200 ulimit -s 819200 Added 'processor.max_cstate=1 intel_idle.max_cstate=0 cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,cpuset,perf_event,devices,pids,net_cls,net_prio,freezer audit=0 selinux=0 apparmor=0' to GRUB_CMDLINE_LINUX_DEFAULT
Notes	None
JVM Instance jvm_Composite_1
Parts of Benchmark	Composite
JVM Instance Description	jvm_1
Command Line	-server -Xms530g -Xmx530g -Xmn500g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=17 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=10k
Tuning	None
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	249995	253044	256092	259141	262190

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	80355	96124	114775	129353	137846	109590

Note

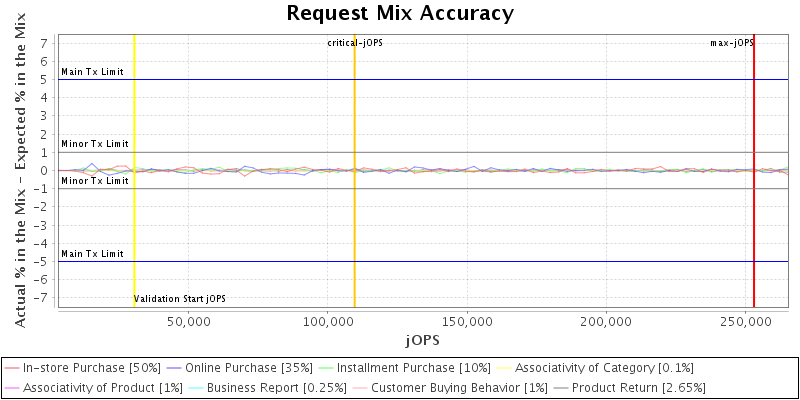

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	300
specjbb.comm.connect.worker.pool.max	256	300
specjbb.forkjoin.workers	224	{Tier1=300, Tier2=150, Tier3=55}


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 304872 IR

High-bound (settled) is 267814 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise Synergy 660 Gen10	253044 SPECjbb2015-Composite max-jOPS 109590 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: June 19, 2017
SPEC license #: 3	Hardware Availability: Jul-2017	Software Availability: Apr-2017	Publication: Tue Jul 11 13:21:27 EDT 2017

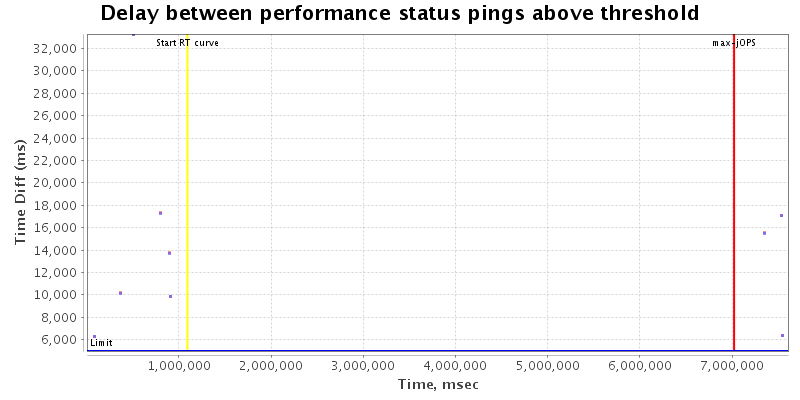

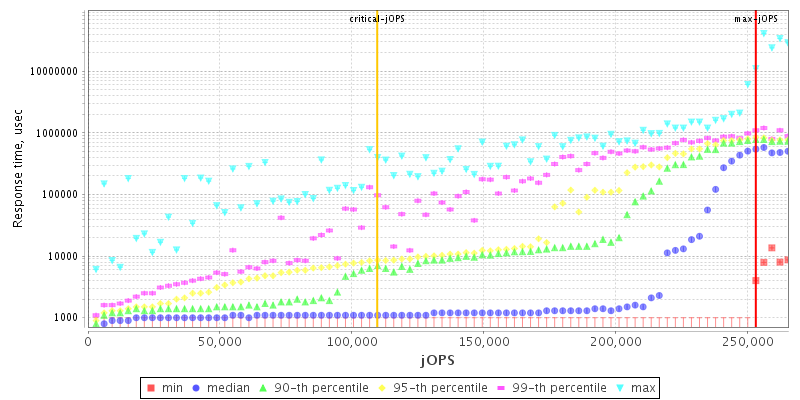

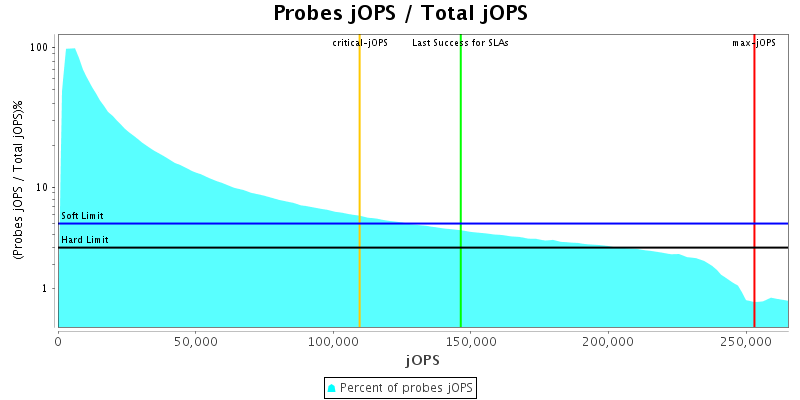

SPECjbb2015-Composite: Single JVM/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
