Sugon I980-G20 402335 SPECjbb2015-MultiJVM max-jOPS
123010 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon Test Sponsor: Sugon Test location: Beijing, CN Test date: Dec 09, 2016
SPEC license #: 9046 Hardware Availability: Jun-2016 Software Availability: Oct-2016 Publication: Feb 17, 2017
Benchmark Results Summary

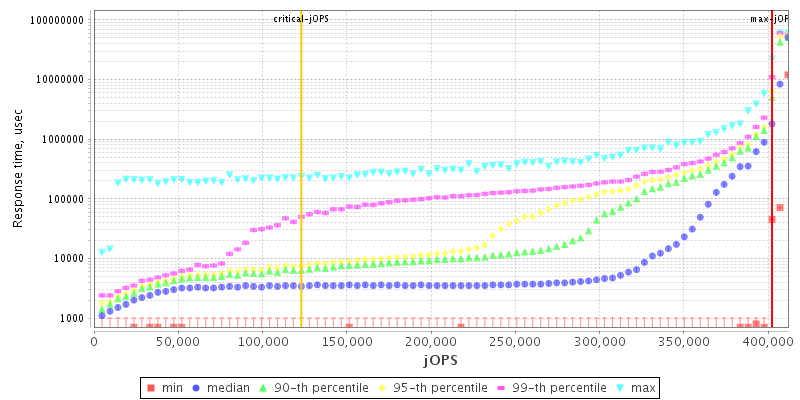

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSugon
Vendor URLhttp://www.sugon.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores192
Total Threads384
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSugon I980-G20
VendorSugon
Vendor URLhttp://www.sugon.com/
AvailableOct-2016
ModelSugon I980-G20
Form Factor8U
CPU NameIntel Xeon E7-8890v4
CPU Characteristics24-Core, 2.20GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System192
Cores Per Chip24
Threads Per System384
Threads Per Core2
VersionV2.60
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk2x 1.0TB RAID 1, 1x 2.0TB 7200 RPM SAS
File Systemext4
Memory Amount (GB)2048GB
# and size of DIMM(s)128 x 16GB
Memory Details2048 GB(128 x 16GB 2Rx4 PC4-2133P)
# and type of Network Interface Cards (NICs)1 x 1 Gbit NICs with RJ-45 Quad-Port
Power Supply Quantity and Rating (W)4 x 1400W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLN/A
VersionN/A
AvailableN/A
BitnessN/A
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttp://www.suse.com/
Version12-SP1
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u112
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_112
AvailableOct-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLN/A
VersionN/A
AvailableN/A
BitnessN/A
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning numactl used to affinitize Ctr JVM to memory node 3
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=48 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each Injector JVM to asingle memory node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 392868 397601 402335 407068 411801
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 78100 92300 125433 158567 196434 123010
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us 9467 / 14200 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
5000us 359735 / 364468 307668 / 312401 75734 / 80467 52067 / 56800 37867 / 42600 - / 4733
10000us 364468 / 369201 326601 / 331334 217734 / 222467 170401 / 175134 75734 / 80467 - / 4733
25000us 373935 / 378668 350268 / 355001 288734 / 293468 236667 / 241401 89934 / 94667 9467 / 14200
50000us 373935 / 378668 359735 / 364468 298201 / 302934 260334 / 265068 123067 / 127800 9467 / 14200
75000us 378668 / 383401 359735 / 364468 312401 / 317134 269801 / 274534 156201 / 160934 9467 / 14200
100000us 378668 / 383401 364468 / 369201 321868 / 326601 288734 / 293468 194067 / 198801 9467 / 14200
200000us 388135 / 392868 373935 / 378668 345535 / 350268 326601 / 331334 312401 / 317134 75734 / 18933
500000us 397601 / 402335 388135 / 392868 378668 / 383401 373935 / 378668 364468 / 369201 307668 / 298201
1000000us 402335 / - 397601 / 402335 388135 / 392868 388135 / 392868 383401 / 388135 359735 / 364468
Probes jOPS / Total jOPS

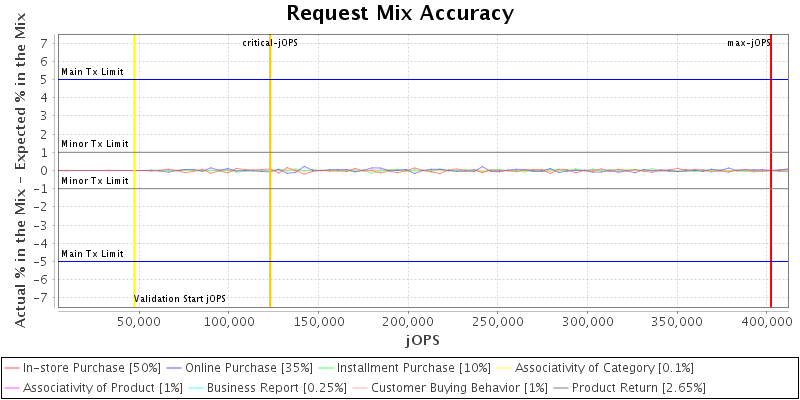

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

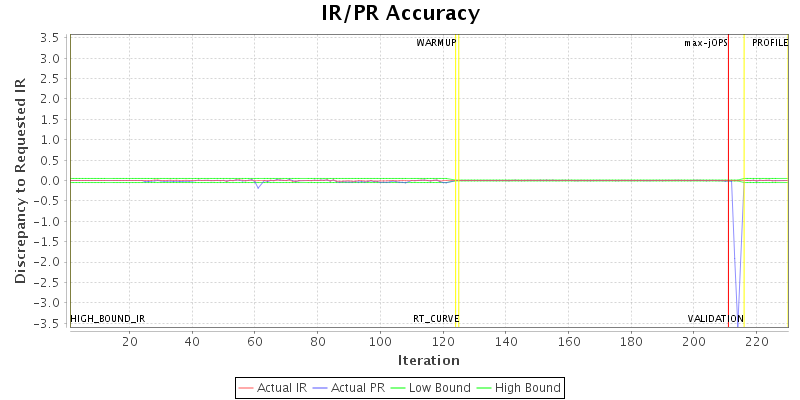

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 384 {=384, Tier1=256, Tier2=64, Tier3=32}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 384 36
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 420137 IR
