SPECjbb2015 Report for jbb2015-20161125-00132 : 332913 max-jOPS ; 104105 critical-jOPS

Hardware hw_1
Name	Sugon I980-G20
Vendor	Sugon
Vendor URL	http://www.sugon.com/
Available	Oct-2016
Model	Sugon I980-G20
Form Factor	8U
CPU Name	Intel Xeon E7-8890v3
CPU Characteristics	18-Core, 2.50GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	144
Cores Per Chip	18
Threads Per System	288
Threads Per Core	2
Version	V2.60
CPU Frequency (MHz)	2500
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	256 KB (I+D) per core
Tertiary Cache	45 MB (I+D) on chip per chip
Other Cache	None
Disk	2x 1.0 TB RAID 1, 1x 2.0 TB 7200 RPM SAS
File System	ext4
Memory Amount (GB)	2048GB
# and size of DIMM(s)	128 x 16GB
Memory Details	2048 GB(128 x 16GB 2Rx4 PC4-2133P)
# and type of Network Interface Cards (NICs)	1 x 1 Gbit NICs with Quad-Port
Power Supply Quantity and Rating (W)	4 x 1400W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	N/A
Version	N/A
Available	N/A
Bitness	N/A
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 12 SP1
Vendor	SUSE
Vendor URL	http://www.suse.com/
Version	12-SP1
Available	Nov-2015
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u112
Vendor	Oracle Corporation
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 1.8.0_112
Available	Oct-2016
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	N/A
Version	N/A
Available	N/A
Bitness	N/A
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Set BIOS options as Default Settings.
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	echo '8000000' > /proc/sys/kernel/sched_latency_ns echo '6000000' >/proc/sys/kernel/sched_min_granularity_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning	numactl used to affinitize Ctr JVM to memory node 3
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -Xmx29g -Xms29g -Xmn27g -XX:+AggressiveOpts -XX:SurvivorRatio=31 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails -XX:+PrintTenuringDistribution
Tuning	numactl used to affinitize each Backend JVM to a single memory node
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each Injector JVM to a single memory node
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	325596	329254	332913	336571	340229

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	71338	78655	107922	129872	155481	104105

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.controller.handshake.timeout	600000	800000
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	288	{Tier1=240, Tier2=65, Tier3=33}
specjbb.group.count	1	8
specjbb.heartbeat.threshold	100000	600000
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 365838 IR

High-bound (settled) is 350575 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Sugon I980-G20	332913 SPECjbb2015-MultiJVM max-jOPS 104105 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Sugon	Test Sponsor: Sugon	Test location: Beijing, CN	Test date: Nov 25, 2016
SPEC license #: 9046	Hardware Availability: Jun-2016	Software Availability: Oct-2016	Publication: Dec 21, 2016

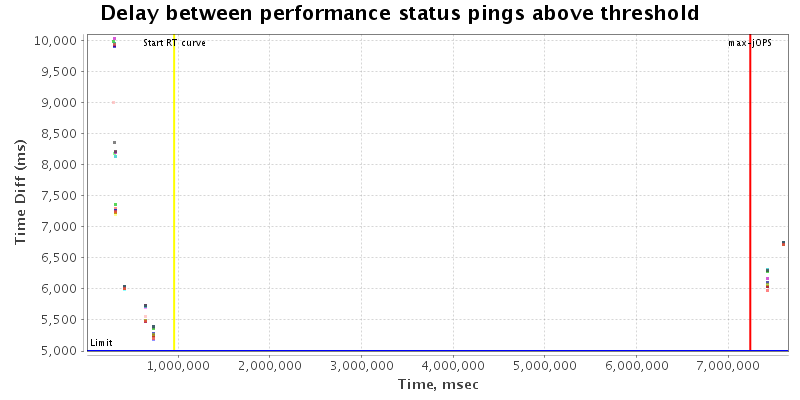

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
